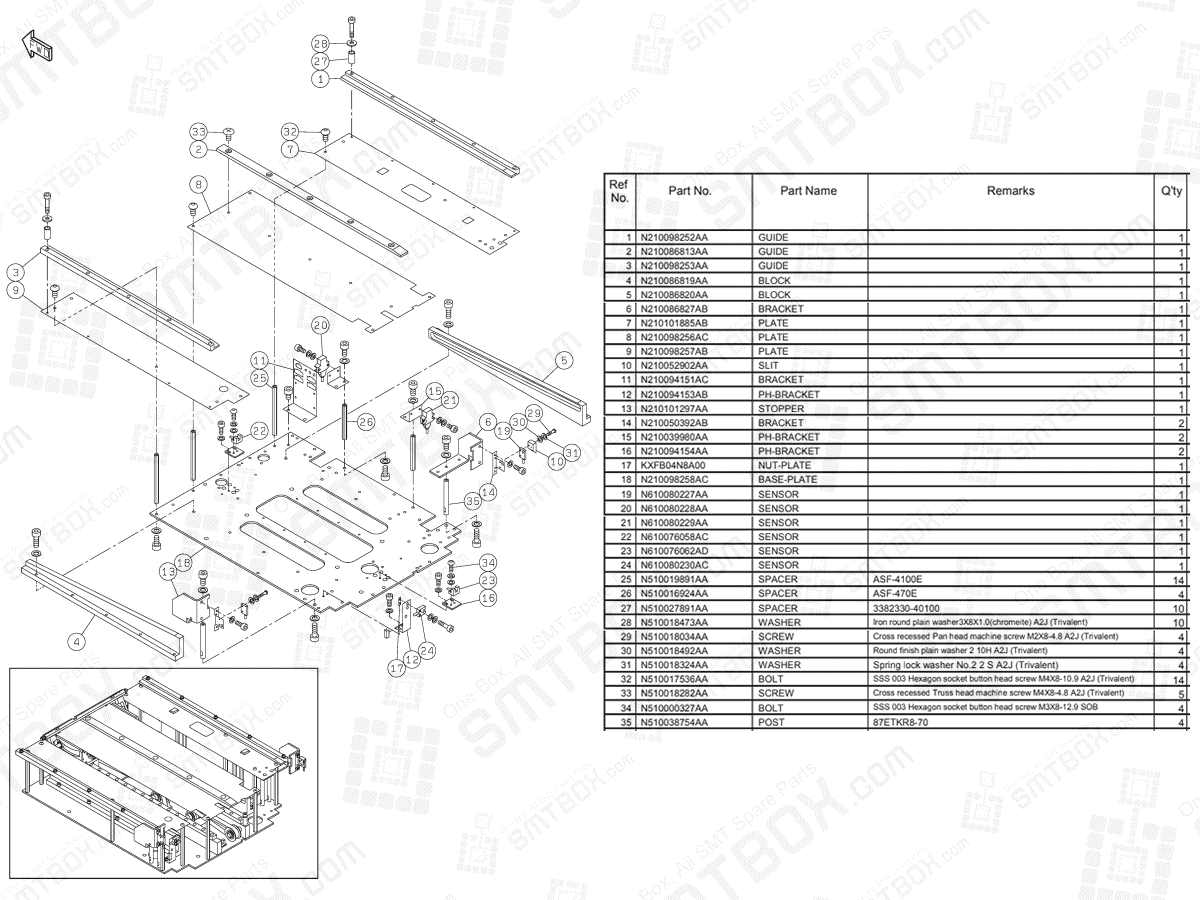

NPM Tray Feeder Drawing-out Section N610069934AA

#1. P/N: N210098252AA | Part name: Guide | Qty: 1

#2. P/N: N210086813AA | Part name: Guide | Qty: 1

#3. P/N: N210098253AA | Part name: Guide | Qty: 1

#4. P/N: N210086819AA | Part name: Block | Qty: 1

#5. P/N: N210086820AA | Part name: Block | Qty: 1

#6. P/N: N210086827AB | Part name: Bracket | Qty: 1

#7. P/N: N210101885AB | Part name: Plate | Qty: 1

#8. P/N: N210098256AC | Part name: Plate | Qty: 1

#9. P/N: N210098257AB | Part name: Plate | Qty: 1

#10. P/N: N210052902AA | Part name: Slit | Qty: 1

#11. P/N: N210094151AC | Part name: Bracket | Qty: 1

#12. P/N: N210094153AB | Part name: Ph Bracket | Qty: 1

#13. P/N: N210101297AA | Part name: Stopper | Qty: 1

#14. P/N: N210050392AB | Part name: Bracket | Qty: 2

#15. P/N: N210039980AA | Part name: Ph Bracket | Qty: 2

#16. P/N: N210094154AA | Part name: Ph Bracket | Qty: 2

#17. P/N: KXFB04N8A00 | Part name: Nut Plate | Qty: 1

#18. P/N: N210098258AC | Part name: Base Plate | Qty: 1

#19. P/N: N610080227AA | Part name: Sensor | Qty: 1

#20. P/N: N610080228AA | Part name: Sensor | Qty: 1

#21. P/N: N610080229AA | Part name: Sensor | Qty: 1

#22. P/N: N610076058AC | Part name: Sensor | Qty: 1

#23. P/N: N610076062AD | Part name: Sensor | Qty: 1

#24. P/N: N610080230AC | Part name: Sensor | Qty: 1

#25. P/N: N510019891AA | Part name: Spacer | Remarks: SF-4100E | Qty: 14

#26. P/N: N510016924AA | Part name: Spacer | Remarks: SF-470E | Qty: 4

#27. P/N: N510027891AA | Part name: Spacer | Remarks: 382330-40100 | Qty: 10

#28. P/N: N510018473AA | Part name: Washer | Remarks: ron round plain washer3X8X1.0(chromeite) A2J (Trivalent) | Qty: 10

#29. P/N: N510018034AA | Part name: Screw | Remarks: ross recessed Pan head machine screw M2X8-4.8 A2J (Trivalent) | Qty: 4

#30. P/N: N510018492AA | Part name: Washer | Remarks: ound finish plain washer 2 10H A2J (Trivalent) | Qty: 4

#31. P/N: N510018324AA | Part name: Washer | Remarks: pring lock washer No.2 2 S A2J (Trivalent) | Qty: 4

#32. P/N: N510017536AA | Part name: Bolt | Remarks: SS 003 Hexagon socket button head screw M4X8-10.9 A2J (Trivalent) | Qty: 14

#33. P/N: N510018282AA | Part name: Screw | Remarks: ross recessed Truss head machine screw M4X8-4.8 A2J (Trivalent) | Qty: 5

#34. P/N: N510000327AA | Part name: Bolt | Remarks: SS 003 Hexagon socket button head screw M3X8-12.9 SOB | Qty: 4

#35. P/N: N510038754AA | Part name: Post | Remarks: 7ETKR8-70 | Qty: 4
