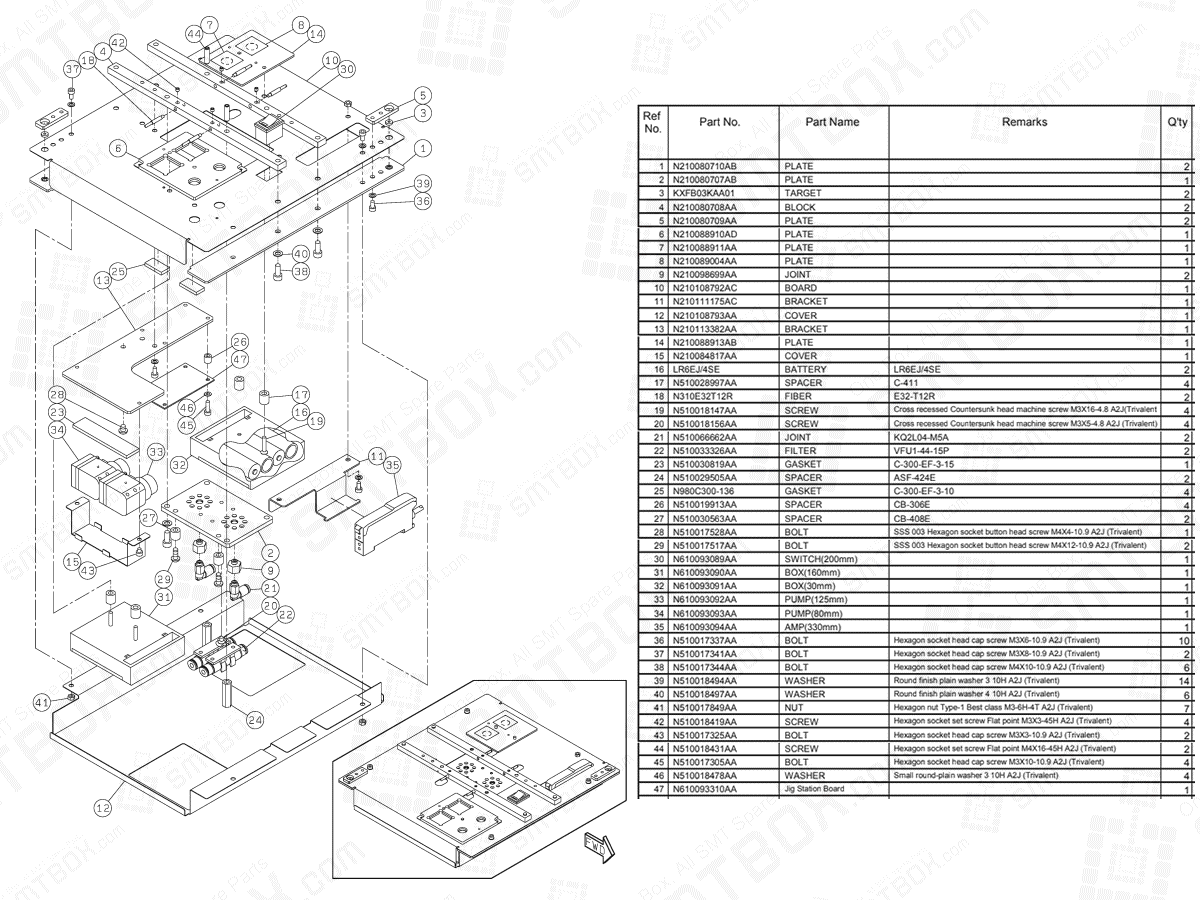

Panasonic NPM Standard Calibration Jig Kit N610081724AA KN610081724AA-05-1

Panasonic Npm Standard Calibration Jig Kit N610081724AA KN610081724AA 05

#1 . P/N: N210080710AB | Part Name: Plate | Qty: 2

#2 . P/N: N210080707AB | Part Name: Plate | Qty: 1

#3 . P/N: KXFB03KAA01 | Part Name: Target | Qty: 2

#4 . P/N: N210080708AA | Part Name: Block | Qty: 2

#5 . P/N: N210080709AA | Part Name: Plate | Qty: 2

#6 . P/N: N210088910AD | Part Name: Plate | Qty: 1

#7 . P/N: N210088911AA | Part Name: Plate | Qty: 1

#8 . P/N: N210089004AA | Part Name: Plate | Qty: 1

#9 . P/N: N210098699AA | Part Name: Joint | Qty: 2

#10. P/N: N210108792AC | Part Name: Board | Qty: 1

#11. P/N: N210111175AC | Part Name: Bracket | Qty: 1

#12. P/N: N210108793AA | Part Name: Cover | Qty: 1

#13. P/N: N210113382AA | Part Name: Bracket | Qty: 1

#14. P/N: N210088913AB | Part Name: Plate | Qty: 1

#15. P/N: N210084817AA | Part Name: Cover | Qty: 1

#16. P/N: LR6EJ/4SE | Part Name: Battery | Remarks: LR6EJ/4SE | Qty: 2

#17. P/N: N510028997AA | Part Name: Spacer | Remarks: C-411 | Qty: 4

#18. P/N: N310E32T12R | Part Name: Fiber | Remarks: E32-T12R | Qty: 2

#19. P/N: N510018147AA | Part Name: Screw | Remarks: Cross recessed Countersunk head machine screw M3X16-4.8 A2J(Trivalent | Qty: 4

#20. P/N: N510018156AA | Part Name: Screw | Remarks: Cross recessed Countersunk head machine screw M3X5-4.8 A2J (Trivalent) | Qty: 4

#21. P/N: N510066662AA | Part Name: Joint | Remarks: KQ2L04-M5A | Qty: 2

#22. P/N: N510033326AA | Part Name: Filter | Remarks: VFU1-44-15P | Qty: 2

#23. P/N: N510030819AA | Part Name: Gasket | Remarks: C-300-EF-3-15 | Qty: 1

#24. P/N: N510029505AA | Part Name: Spacer | Remarks: ASF-424E | Qty: 2

#25. P/N: N980C300-136 | Part Name: Gasket | Remarks: C-300-EF-3-10 | Qty: 4

#26. P/N: N510019913AA | Part Name: Spacer | Remarks: CB-306E | Qty: 4

#27. P/N: N510030563AA | Part Name: Spacer | Remarks: CB-408E | Qty: 2

#28. P/N: N510017528AA | Part Name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M4X4-10.9 A2J (Trivalent) | Qty: 1

#29. P/N: N510017517AA | Part Name: Bolt SSS 003 Hexagon socket button head screw M4X12-10.9 A2J (Trivalent) | Qty: 2

#30. P/N: N610093089AA | Part Name: Switch(200Mm) | Qty: 1

#31. P/N: N610093090AA | Part Name: Box(160Mm) | Qty: 1

#32. P/N: N610093091AA | Part Name: Box(30Mm) | Qty: 1

#33. P/N: N610093092AA | Part Name: Pump(125Mm) | Qty: 1

#34. P/N: N610093093AA | Part Name: Pump(80Mm) | Qty: 1

#35. P/N: N610093094AA | Part Name: Amp(330Mm) | Qty: 1

#36. P/N: N510017337AA | Part Name: Bolt | Remarks: Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent) | Qty: 10

#37. P/N: N510017341AA | Part Name: Bolt | Remarks: Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent) | Qty: 2

#38. P/N: N510017344AA | Part Name: Bolt | Remarks: Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent) | Qty: 6

#39. P/N: N510018494AA | Part Name: Washer | Remarks: Round finish plain washer 3 10H A2J (Trivalent) | Qty: 14

#40. P/N: N510018497AA | Part Name: Washer | Remarks: Round finish plain washer 4 10H A2J (Trivalent) | Qty: 6

#41. P/N: N510017849AA | Part Name: Nut | Remarks: Hexagon nut Type-1 Best class M3-6H-4T A2J (Trivalent) | Qty: 7

#42. P/N: N510018419AA | Part Name: Screw | Remarks: Hexagon socket set screw Flat point M3X3-45H A2J (Trivalent) | Qty: 4

#43. P/N: N510017325AA | Part Name: Bolt | Remarks: Hexagon socket head cap screw M3X3-10.9 A2J (Trivalent) | Qty: 2

#44. P/N: N510018431AA | Part Name: Screw | Remarks: Hexagon socket set screw Flat point M4X16-45H A2J (Trivalent) | Qty: 2

#45. P/N: N510017305AA | Part Name: Bolt | Remarks: Hexagon socket head cap screw M3X10-10.9 A2J (Trivalent) | Qty: 4

#46. P/N: N510018478AA | Part Name: Washer | Remarks: Small round-plain washer 3 10H A2J (Trivalent) | Qty: 4

#47. P/N: N610093310AA | Part Name: Jig | Remarks: Station Board | Qty: 1
