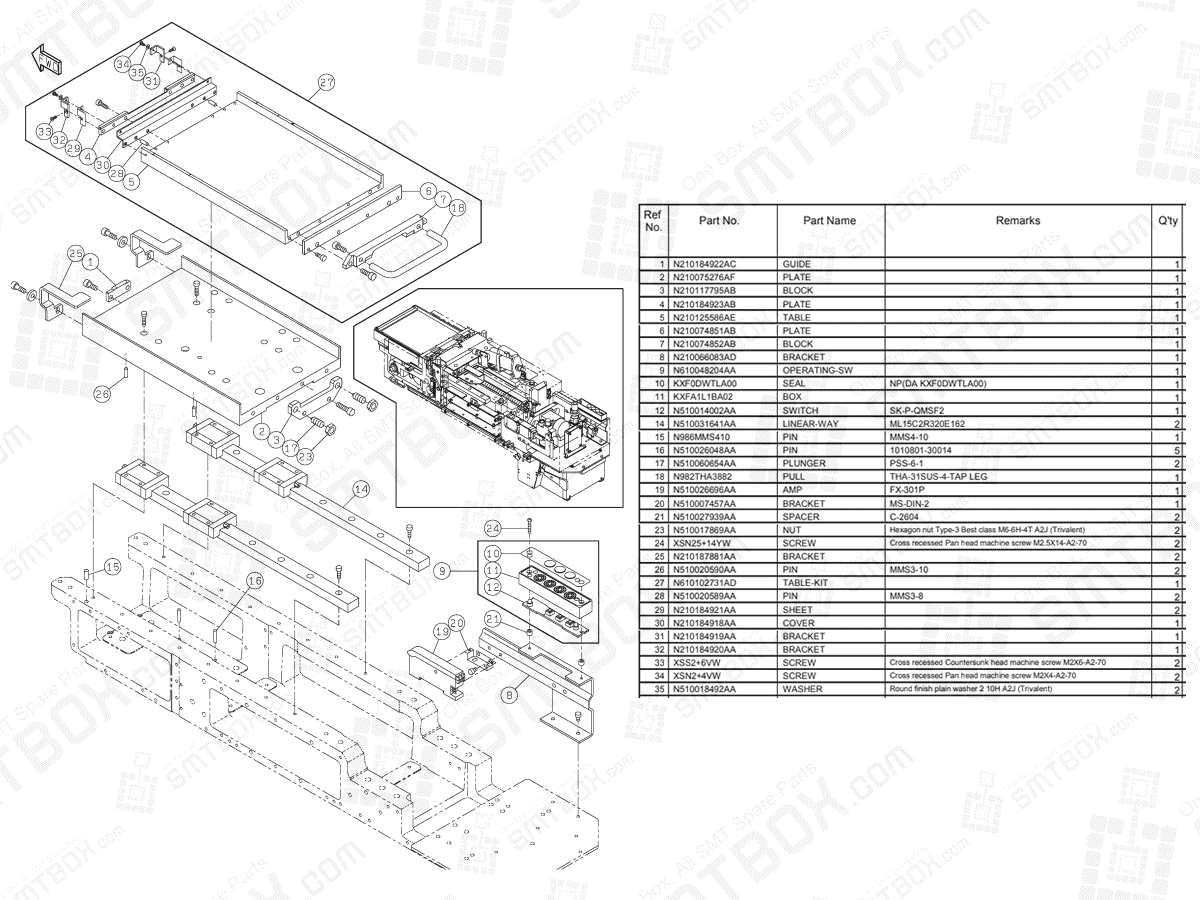

#1. P/N: N210184922AC | Part Name: Guide | Qty: 1
#2. P/N: N210075276AF | Part Name: Plate | Qty: 1
#3. P/N: N210117795AB | Part Name: Block | Qty: 1
#4. P/N: N210184923AB | Part Name: Plate | Qty: 1
#5. P/N: N210125586AE | Part Name: Table | Qty: 1
#6. P/N: N210074851AB | Part Name: Plate | Qty: 1
#7. P/N: N210074852AB | Part Name: Block | Qty: 1
#8. P/N: N210066083AD | Part Name: Bracket | Qty: 1
#9. P/N: N610048204AA | Part Name: Operating Sw | Qty: 1
#10. P/N: KXF0DWTLA00 | Part Name: Seal | Remarks: NP(DA KXF0DWTLA00) | Qty: 1
#11. P/N: KXFA1L1BA02 | Part Name: Box | Qty: 1
#12. P/N: N510014002AA | Part Name: Switch | Remarks: SK-P-QMSF2 | Qty: 1
#14. P/N: N510031641AA | Part Name: Linear Way | Remarks: ML15C2R320E162 | Qty: 2
#15. P/N: N986MMS410 | Part Name: Pin | Remarks: MMS4-10 | Qty: 1
#16. P/N: N510026048AA | Part Name: Pin | Remarks: 1010801-30014 | Qty: 5
#17. P/N: N510060654AA | Part Name: Plunger | Remarks: PSS-6-1 | Qty: 2
#18. P/N: N982THA3882 | Part Name: Pull | Remarks: THA-31SUS-4-TAP LEG | Qty: 1
#19. P/N: N510026696AA | Part Name: Amp | Remarks: FX-301P | Qty: 1
#20. P/N: N510007457AA | Part Name: Bracket | Remarks: MS-DIN-2 | Qty: 1
#21. P/N: N510027939AA | Part Name: Spacer | Remarks: C-2604 | Qty: 2
#23. P/N: N510017869AA | Part Name: Nut | Remarks: Hexagon nut Type-3 Best class M6-6H-4T A2J (Trivalent) | Qty: 2
#24. P/N: XSN25+14YW | Part Name: Screw | Remarks: Cross recessed Pan head machine screw M2.5X14-A2-70 | Qty: 2
#25. P/N: N210187881AA | Part Name: Bracket | Qty: 2
#26. P/N: N510020590AA | Part Name: Pin | Remarks: MMS3-10 | Qty: 2
#27. P/N: N610102731AD | Part Name: Table-Kit | Qty: 1
#28. P/N: N510020589AA | Part Name: Pin | Remarks: MMS3-8 | Qty: 2
#29. P/N: N210184921AA | Part Name: Sheet | Qty: 2
#30. P/N: N210184918AA | Part Name: Cover | Qty: 1
#31. P/N: N210184919AA | Part Name: Bracket | Qty: 1
#32. P/N: N210184920AA | Part Name: Bracket | Qty: 1
#33. P/N: XSS2+6VW | Part Name: Screw | Remarks: Cross recessed Countersunk head machine screw M2X6-A2-70 | Qty: 2
#34. P/N: XSN2+4VW | Part Name: Screw | Remarks: Cross recessed Pan head machine screw M2X4-A2-70 | Qty: 2
#35. P/N: N510018492AA | Part Name: Washer | Remarks: Round finish plain washer 2 10H A2J (Trivalent) | Qty: 2
