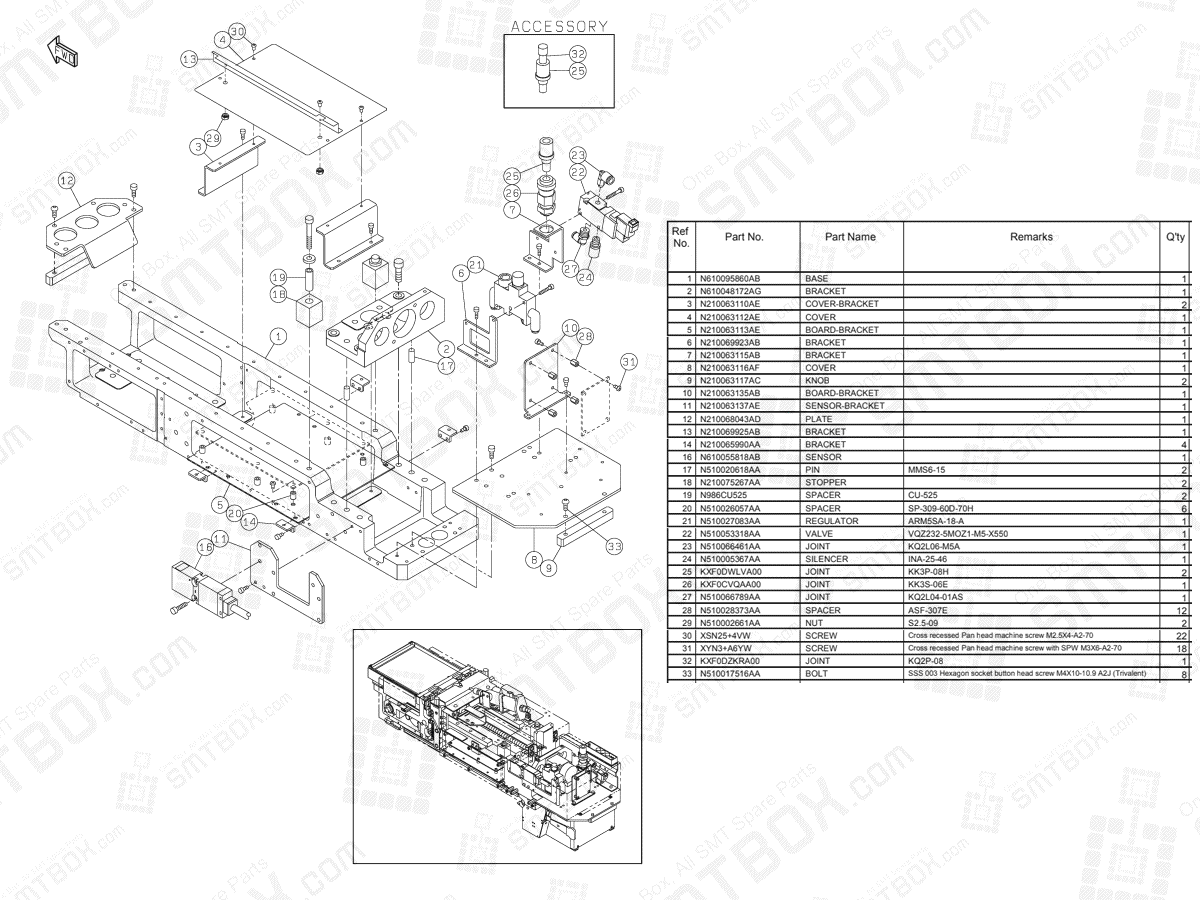

KN610095857AB-03-1 NPM Multifunctional Transfer Unit

#1. P/N: N610095860AB | Part Name: Base | Qty: 1

#2. P/N: N610048172AG | Part Name: Bracket | Qty: 1

#3. P/N: N210063110AE | Part Name: Cover Bracket | Qty: 2

#4. P/N: N210063112AE | Part Name: Cover | Qty: 1

#5. P/N: N210063113AE | Part Name: Board Bracket | Qty: 1

#6. P/N: N210069923AB | Part Name: Bracket | Qty: 1

#7. P/N: N210063115AB | Part Name: Bracket | Qty: 1

#8. P/N: N210063116AF | Part Name: Cover | Qty: 1

#9. P/N: N210063117AC | Part Name: Knob | Qty: 2

#10. P/N: N210063135AB | Part Name: Board Bracket | Qty: 1

#11. P/N: N210063137AE | Part Name: Sensor Bracket | Qty: 1

#12. P/N: N210068043AD | Part Name: Plate | Qty: 1

#13. P/N: N210069925AB | Part Name: Bracket | Qty: 1

#14. P/N: N210065990AA | Part Name: Bracket | Qty: 4

#16. P/N: N610055818AB | Part Name: Sensor | Qty: 1

#17. P/N: N510020618AA | Part Name: Pin |　Remarks: MMS6-15 | Qty: 2

#18. P/N: N210075267AA | Part Name: Stopper | Qty: 2

#19. P/N: N986CU525 | Part Name: Spacer | Remarks: CU-525 | Qty: 2

#20. P/N: N510026057AA | Part Name: Spacer | Remarks: SP-309-60D-70H | Qty: 6

#21. P/N: N510027083AA | Part Name: Regulator | Remarks: ARM5SA-18-A | Qty: 1

#22. P/N: N510053318AA | Part Name: Valve | Remarks: VQZ232-5MOZ1-M5-X550 | Qty: 1

#23. P/N: N510066461AA | Part Name: Joint | Remarks: KQ2L06-M5A | Qty: 1

#24. P/N: N510005367AA | Part Name: Silencer | Remarks: INA-25-46 | Qty: 1

#25. P/N: KXF0DWLVA00 | Part Name: Joint | Remarks: KK3P-08H | Qty: 2

#26. P/N: KXF0CVQAA00 | Part Name: Joint | Remarks: KK3S-06E | Qty: 1

#27. P/N: N510066789AA | Part Name: Joint | Remarks: KQ2L04-01AS | Qty: 1

#28. P/N: N510028373AA | Part Name: Spacer | Remarks: ASF-307E | Qty: 12

#29. P/N: N510002661AA | Part Name: Nut | Remarks: S2.5-09 | Qty: 2

#30. P/N: XSN25+4VW | Part Name: Screw | Remarks: Cross recessed Pan head machine screw M2.5X4-A2-70 22

#31. P/N: XYN3+A6YW | Part Name: Screw | Remarks: Cross recessed Pan head machine screw with SPW M3X6-A2-70 | Qty: 18

#32. P/N: KXF0DZKRA00 | Part Name: Joint | Remarks: KQ2P-08 | Qty: 1

#33. P/N: N510017516AA | Part Name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M4X10-10.9 A2J (Trivalent) | Qty: 8
