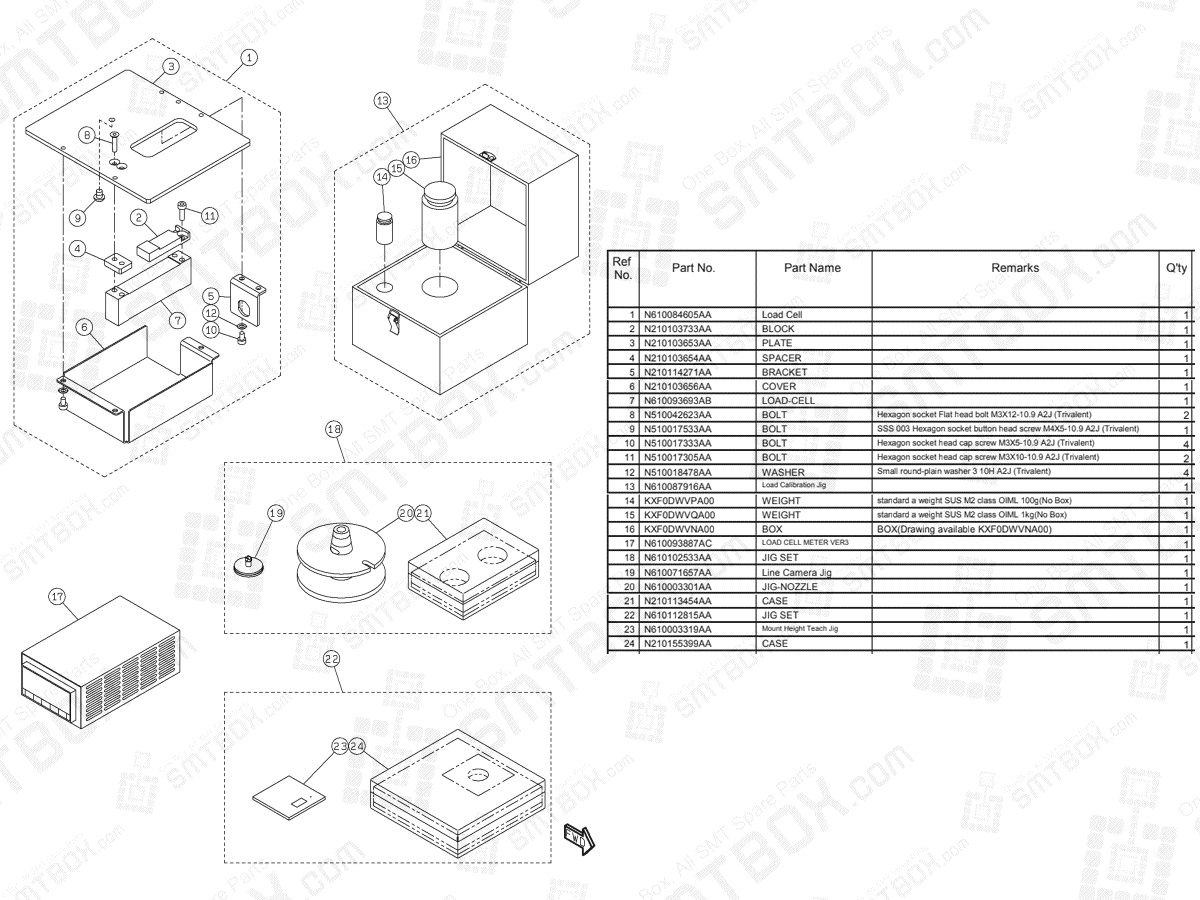

Machine Adjustment Jig Kit Common Set N610131603AA

#1. P/N: N610084605AA | Part Name: Load Cell | Qty: 1

#2. P/N: N210103733AA | Part Name: Block | Qty: 1

#3. P/N: N210103653AA | Part Name: Plate | Qty: 1

#4. P/N: N210103654AA | Part Name: Spacer | Qty: 1

#5. P/N: N210114271AA | Part Name: Bracket | Qty: 1

#6. P/N: N210103656AA | Part Name: Cover | Qty: 1

#7. P/N: N610093693AB | Part Name: Load Cell | Qty: 1

#8. P/N: N510042623AA | Part Name: Bolt | Remarks: Hexagon socket Flat head bolt M3X12-10.9 A2J (Trivalent) | Qty: 2

#9. P/N: N510017533AA | Part Name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M4X5-10.9 A2J (Trivalent) | Qty: 1

#10. P/N: N510017333AA | Part Name: Bolt | Remarks: Hexagon socket head cap screw M3X5-10.9 A2J (Trivalent) | Qty: 4

#11. P/N: N510017305AA | Part Name: Bolt | Remarks: Hexagon socket head cap screw M3X10-10.9 A2J (Trivalent) | Qty: 2

#12. P/N: N510018478AA | Part Name: Washer | Remarks: Small round-plain washer 3 10H A2J (Trivalent) | Qty: 4

#13. P/N: N610087916AA | Part Name: Load Calibration Jig | Qty: 1

#14. P/N: KXF0DWVPA00 | Part Name: Weight | Remarks: standard a weight SUS M2 class OIML 100g(No Box) | Qty: 1

#15. P/N: KXF0DWVQA00 | Part Name: Weight | Remarks: standard a weight SUS M2 class OIML 1kg(No Box) | Qty: 1

#16. P/N: KXF0DWVNA00 | Part Name: Box | Remarks: BOX(Drawing available KXF0DWVNA00) | Qty: 1

#17. P/N: N610093887A | Part Name: Cload Cell Meter Ver3 | Qty: 1

#18. P/N: N610102533AA | Part Name: Jig Set | Qty: 1

#19. P/N: N610071657AA | Part Name: Line Camera Jig | Qty: 1

#20. P/N: N610003301AA | Part Name: Jig Nozzle | Qty: 1

#21. P/N: N210113454AA | Part Name: Case | Qty: 1

#22. P/N: N610112815AA | Part Name: Jig Set | Qty: 1

#23. P/N: N610003319AA | Part Name: Mount Height Teach Jig | Qty: 1

#24. P/N: N210155399AA | Part Name: Case | Qty: 1
