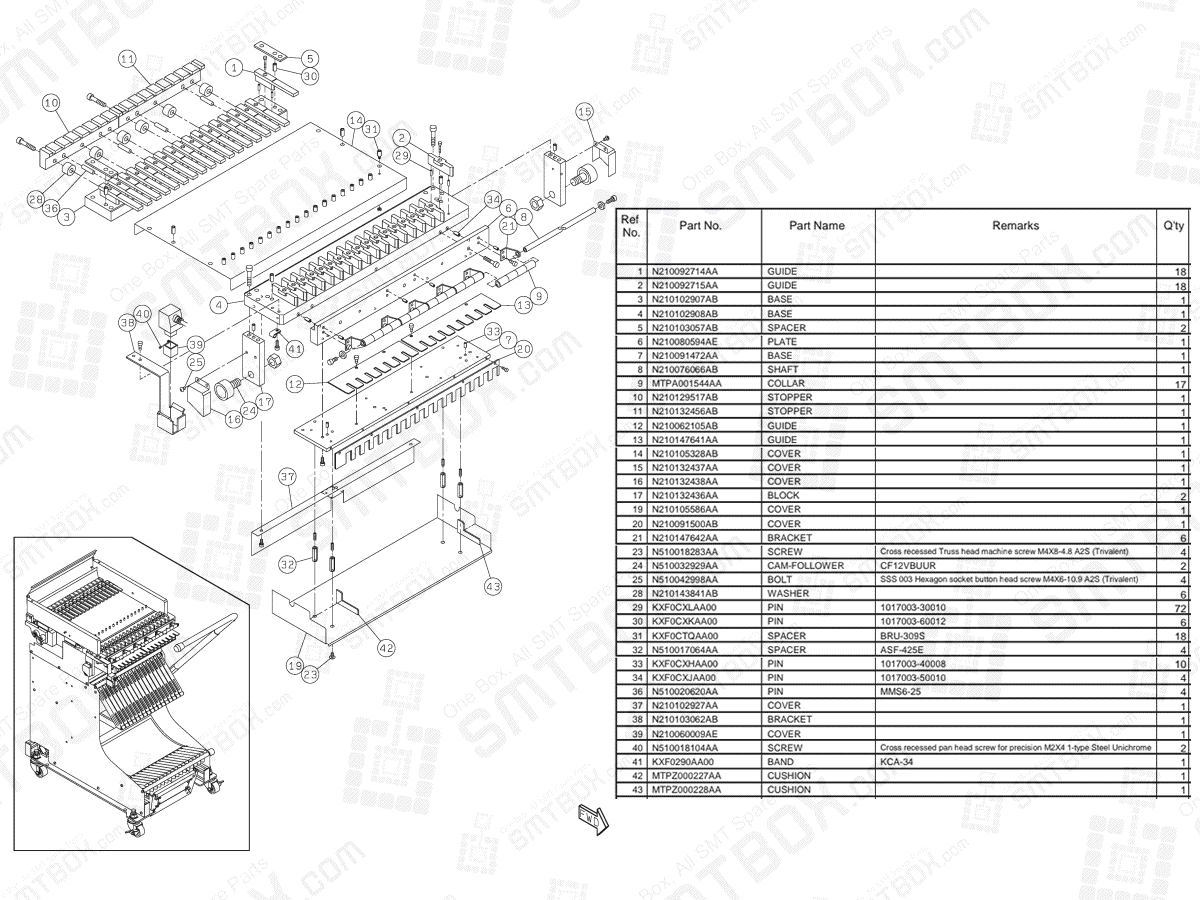

Panasonic NPM Feeder Cart 17 Rows N610060938AA

#1. P/N: N210092714AA | Patr name: Guide | Qty: 18

#2. P/N: N210092715AA | Patr name: Guide | Qty: 18

#3. P/N: N210102907AB | Patr name: Base | Qty: 1

#4. P/N: N210102908AB | Patr name: Base | Qty: 1

#5. P/N: N210103057AB | Patr name: Spacer | Qty: 2

#6. P/N: N210080594AE | Patr name: Plate | Qty: 1

#7. P/N: N210091472AA | Patr name: Base | Qty: 1

#8. P/N: N210076066AB | Patr name: Shaft | Qty: 1

#9. P/N: MTPA001544AA | Patr name: Collar | Qty: 17

#10. P/N: N210129517AB | Patr name: Stopper | Qty: 1

#11. P/N: N210132456AB | Patr name: Stopper | Qty: 1

#12. P/N: N210062105AB | Patr name: Guide | Qty: 1

#13. P/N: N210147641AA | Patr name: Guide | Qty: 1

#14. P/N: N210105328AB | Patr name: Cover | Qty: 1

#15. P/N: N210132437AA | Patr name: Cover | Qty: 1

#16. P/N: N210132438AA | Patr name: Cover | Qty: 1

#17. P/N: N210132436AA | Patr name: Block | Qty: 2

#19. P/N: N210105586AA | Patr name: Cover | Qty: 1

#20. P/N: N210091500AB | Patr name: Cover | Qty: 1

#21. P/N: N210147642AA | Patr name: Bracket | Qty: 6

#23. P/N: N510018283AA | Patr name: Screw | Remarks: Cross recessed Truss head machine screw M4X8-4.8 A2S (Trivalent) | Qty: 4

#24. P/N: N510032929AA | Patr name: Cam Follower | Remarks: CF12VBUUR | Qty: 2

#25. P/N: N510042998AA | Patr name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M4X6-10.9 A2S (Trivalent) | Qty: 4

#28. P/N: N210143841AB | Patr name: Washer | Qty: 6

#29. P/N: KXF0CXLAA00 | Patr name: Pin | Remarks: 1017003-30010 | Qty: 72

#30. P/N: KXF0CXKAA00 | Patr name: Pin | Remarks: 1017003-60012 | Qty: 6

#31. P/N: KXF0CTQAA00 | Patr name: Spacer | Remarks: BRU-309S | Qty: 18

#32. P/N: N510017064AA | Patr name: Spacer | Remarks: ASF-425E | Qty: 4

#33. P/N: KXF0CXHAA00 | Patr name: Pin | Remarks: 1017003-40008 | Qty: 10

#34. P/N: KXF0CXJAA00 | Patr name: Pin | Remarks: 1017003-50010 | Qty: 4

#36. P/N: N510020620AA | Patr name: Pin | Remarks: MMS6-25 | Qty: 4

#37. P/N: N210102927AA | Patr name: Cover | Qty: 1

#38. P/N: N210103062AB | Patr name: Bracket | Qty: 1

#39. P/N: N210060009AE | Patr name: Cover | Qty: 1

#40. P/N: N510018104AA | Patr name: Screw | Remarks: Cross recessed pan head screw for precision M2X4 1-type Steel Unichrome | Qty: 2

#41. P/N: KXF0290AA00 | Patr name: Band | Remarks: KCA-34 | Qty: 1

#42. P/N: MTPZ000227AA | Patr name: Cushion | Qty: 1

#43. P/N: MTPZ000228AA | Patr name: Cushion | Qty: 1

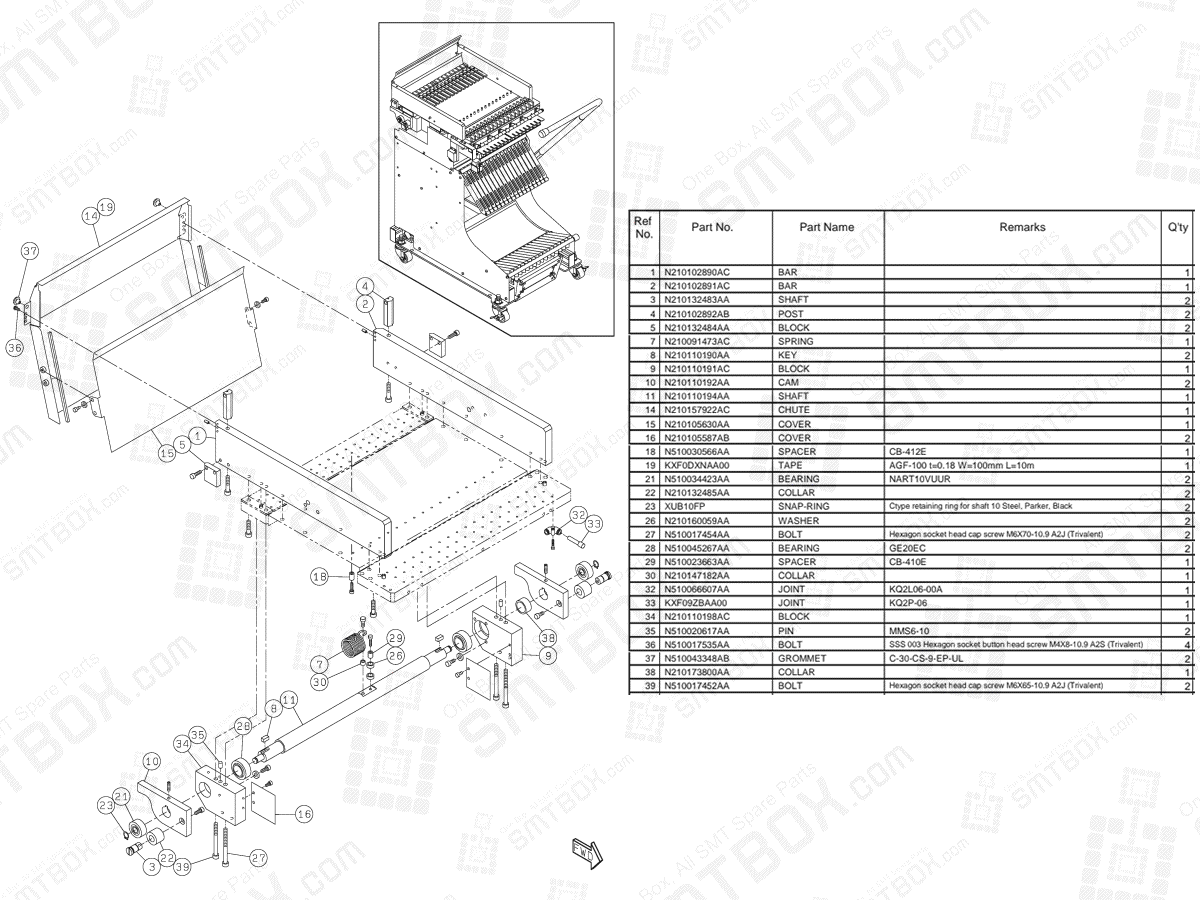

KN610060938AA-25-2 - Panasonic NPM Feeder Cart 17 Rows N610060938AA

#1. P/N: N210102890AC | Part name: Bar | Qty: 1

#2. P/N: N210102891AC | Part name: Bar | Qty: 1

#3. P/N: N210132483AA | Part name: Shaft | Qty: 2

#4. P/N: N210102892AB | Part name: Post | Qty: 2

#5. P/N: N210132484AA | Part name: Block | Qty: 2

#7. P/N: N210091473AC | Part name: Spring | Qty: 1

#8. P/N: N210110190AA | Part name: Key | Qty: 2

#9. P/N: N210110191AC | Part name: Block | Qty: 1

#10. P/N: N210110192AA | Part name: Cam | Qty: 2

#11. P/N: N210110194AA | Part name: Shaft | Qty: 1

#14. P/N: N210157922AC | Part name: Chute | Qty: 1

#15. P/N: N210105630AA | Part name: Cover | Qty: 1

#16. P/N: N210105587AB | Part name: Cover | Qty: 2

#18. P/N: N510030566AA | Part name: Spacer | Remarks: CB-412E | Qty: 1

#19. P/N: KXF0DXNAA00 | Part name: Tape | Remarks: AGF-100 t=0.18 W=100mm L=10m | Qty: 1

#21. P/N: N510034423AA | Part name: Bearing | Remarks: NART10VUUR | Qty: 2

#22. P/N: N210132485AA | Part name: Collar | Qty: 2

#23. P/N: XUB10FP | Part name: Snap Ring | Remarks: Ctype retaining ring for shaft 10 Steel, Parker, Black | Qty: 2

#26. P/N: N210160059AA | Part name: Washer | Qty: 2

#27. P/N: N510017454AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M6X70-10.9 A2J (Trivalent) | Qty: 2

#28. P/N: N510045267AA | Part name: Bearing | Remarks: GE20EC | Qty: 2

#29. P/N: N510023663AA | Part name: Spacer | Remarks: CB-410E | Qty: 1

#30. P/N: N210147182AA | Part name: Collar | Qty: 1

#32. P/N: N510066607AA | Part name: Joint | Remarks: KQ2L06-00A | Qty: 1

#33. P/N: KXF09ZBAA00 | Part name: Joint | Remarks: KQ2P-06 | Qty: 1

#34. P/N: N210110198AC | Part name: Block | Qty: 1

#35. P/N: N510020617AA | Part name: Pin | Remarks: MMS6-10 | Qty: 2

#36. P/N: N510017535AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M4X8-10.9 A2S (Trivalent) | Qty: 4

#37. P/N: N510043348AB | Part name: Grommet | Remarks: C-30-CS-9-EP-UL | Qty: 2

#38. P/N: N210173800AA | Part name: Collar | Qty: 1

#39. P/N: N510017452AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M6X65-10.9 A2J (Trivalent) | Qty: 2

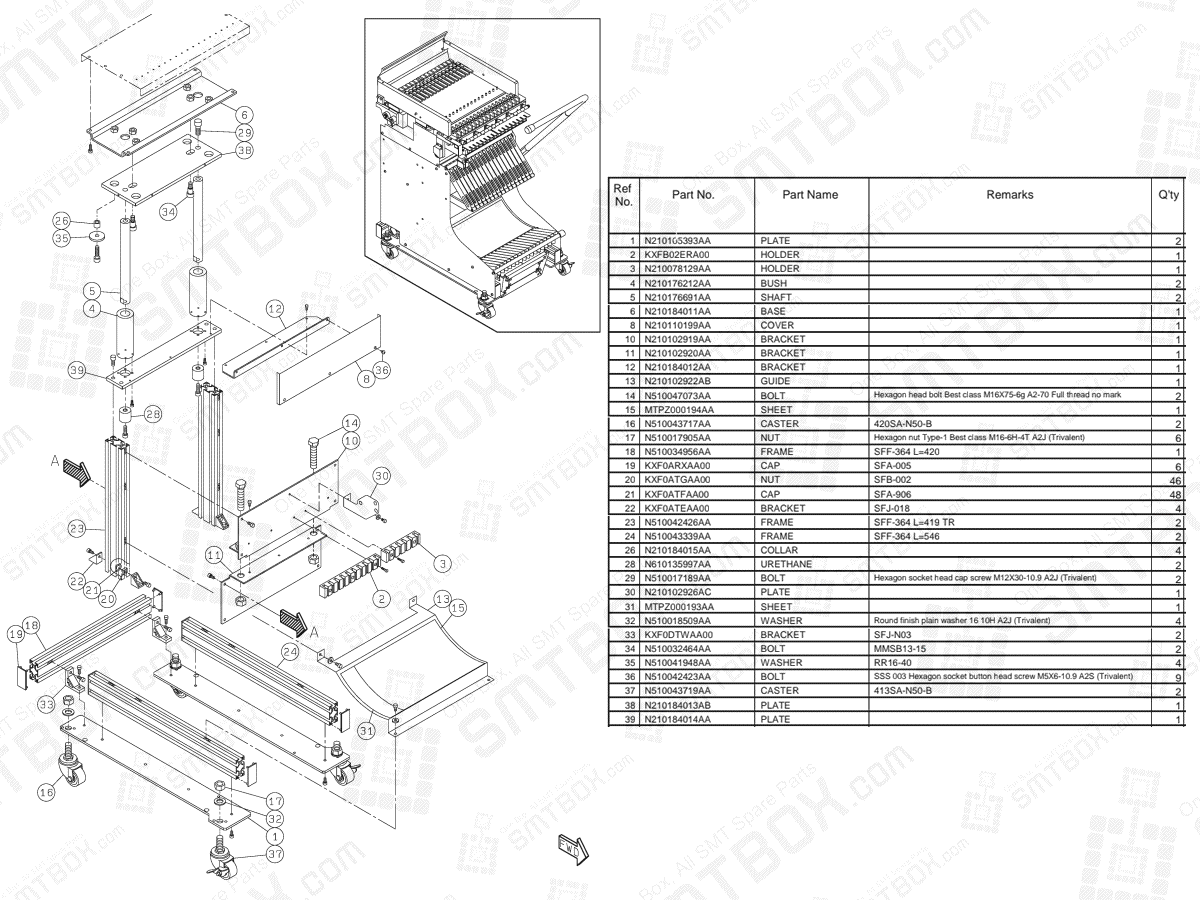

KN610060938AA-25-3 - Panasonic NPM Feeder Cart 17 Rows N610060938AA

#1. P/N: N210105393AA | Part name: Plate | Qty: 2

#2. P/N: KXFB02ERA00 | Part name: Holder | Qty: 1

#3. P/N: N210078129AA | Part name: Holder | Qty: 1

#4. P/N: N210176212AA | Part name: Bush | Qty: 2

#5. P/N: N210176691AA | Part name: Shaft | Qty: 2

#6. P/N: N210184011AA | Part name: Base | Qty: 1

#8. P/N: N210110199AA | Part name: Cover | Qty: 1

#10. P/N: N210102919AA | Part name: Bracket | Qty: 1

#11. P/N: N210102920AA | Part name: Bracket | Qty: 1

#12. P/N: N210184012AA | Part name: Bracket | Qty: 1

#13. P/N: N210102922AB | Part name: Guide | Qty: 1

#14. P/N: N510047073AA | Part name: Bolt | Remarks: Hexagon head bolt Best class M16X75-6g A2-70 Full thread no mark | Qty: 2

#15. P/N: MTPZ000194AA | Part name: Sheet | Qty: 1

#16. P/N: N510043717AA | Part name: Caster | Remarks: 420SA-N50-B | Qty: 2

#17. P/N: N510017905AA | Part name: Nut | Remarks: Hexagon nut Type-1 Best class M16-6H-4T A2J (Trivalent) | Qty: 6

#18. P/N: N510034956AA | Part name: Frame | Remarks: SFF-364 L=420 | Qty: 1

#19. P/N: KXF0ARXAA00 | Part name: Cap | Remarks: SFA-005 | Qty: 6

#20. P/N: KXF0ATGAA00 | Part name: Nut | Remarks: SFB-002 | Qty: 46

#21. P/N: KXF0ATFAA00 | Part name: Cap | Remarks: SFA-906 | Qty: 48

#22. P/N: KXF0ATEAA00 | Part name: Bracket | Remarks: SFJ-018 | Qty: 4

#23. P/N: N510042426AA | Part name: Frame | Remarks: SFF-364 L=419 TR | Qty: 2

#24. P/N: N510043339AA | Part name: Frame | Remarks: SFF-364 L=546 | Qty: 2

#26. P/N: N210184015AA | Part name: Collar | Qty: 4

#28. P/N: N610135997AA | Part name: Urethane | Qty: 2

#29. P/N: N510017189AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M12X30-10.9 A2J (Trivalent) | Qty: 2

#30. P/N: N210102926AC | Part name: Plate | Qty: 1

#31. P/N: MTPZ000193AA | Part name: Sheet | Qty: 1

#32. P/N: N510018509AA | Part name: Washer | Remarks: Round finish plain washer 16 10H A2J (Trivalent) | Qty: 4

#33. P/N: KXF0DTWAA00 | Part name: Bracket | Remarks: SFJ-N03 | Qty: 2

#34. P/N: N510032464AA | Part name: Bolt | Remarks: MMSB13-15 | Qty: 2

#35. P/N: N510041948AA | Part name: Washer | Remarks: RR16-40 | Qty: 4

#36. P/N: N510042423AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M5X6-10.9 A2S (Trivalent) | Qty: 9

#37. P/N: N510043719AA | Part name: Caster | Remarks: 413SA-N50-B | Qty: 2

#38. P/N: N210184013AB | Part name: Plate | Qty: 1

#39. P/N: N210184014AA | Part name: Plate | Qty: 1

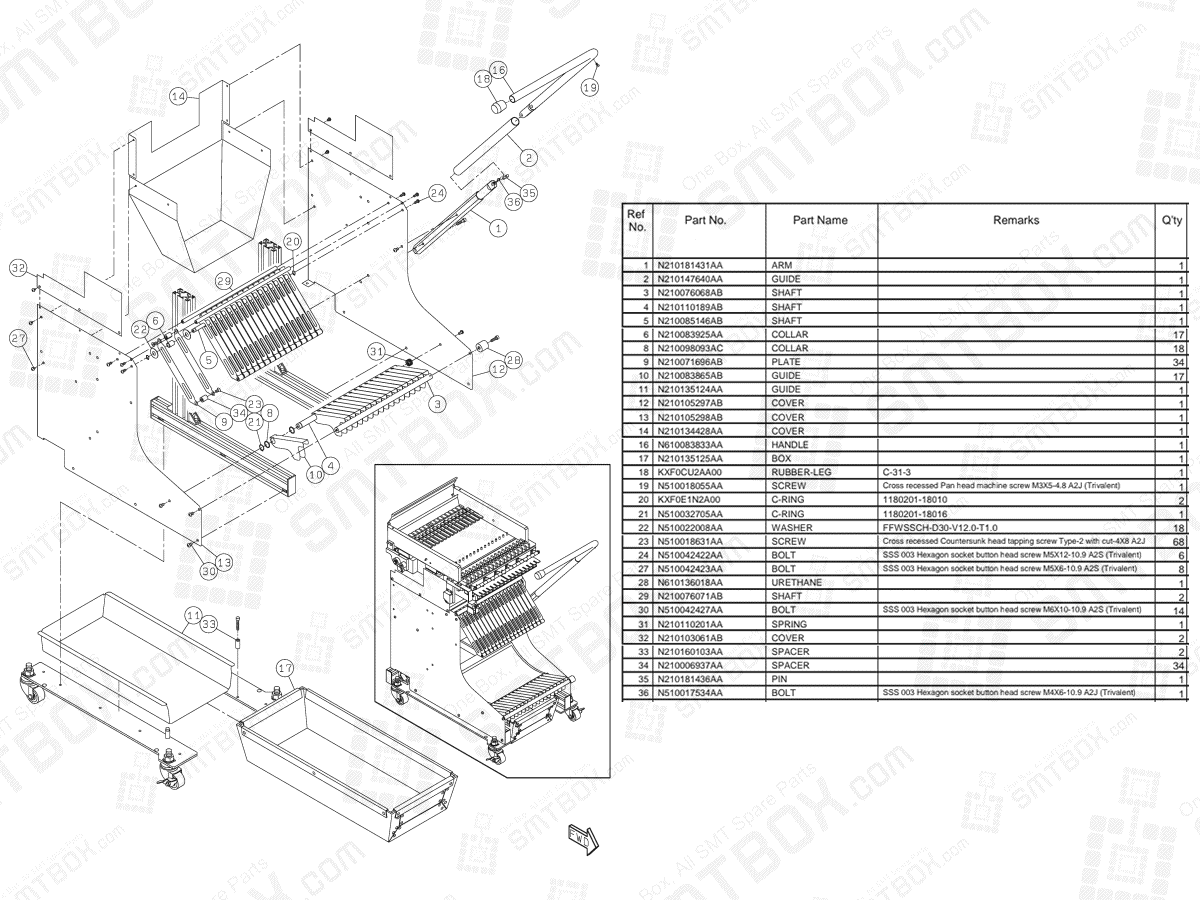

KN610060938AA-25-4 - Panasonic NPM Feeder Cart 17 Rows N610060938AA

#1. P/N: N210181431AA | Part name: Arm | Qty: 1

#2. P/N: N210147640AA | Part name: Guide | Qty: 1

#3. P/N: N210076068AB | Part name: Shaft | Qty: 1

#4. P/N: N210110189AB | Part name: Shaft | Qty: 1

#5. P/N: N210085146AB | Part name: Shaft | Qty: 1

#6. P/N: N210083925AA | Part name: Collar | Qty: 17

#8. P/N: N210098093AC | Part name: Collar | Qty: 18

#9. P/N: N210071696AB | Part name: Plate | Qty: 34

#10. P/N: N210083865AB | Part name: Guide | Qty: 17

#11. P/N: N210135124AA | Part name: Guide | Qty: 1

#12. P/N: N210105297AB | Part name: Cover | Qty: 1

#13. P/N: N210105298AB | Part name: Cover | Qty: 1

#14. P/N: N210134428AA | Part name: Cover | Qty: 1

#16. P/N: N610083833AA | Part name: Handle | Qty: 1

#17. P/N: N210135125AA | Part name: Box | Qty: 1

#18. P/N: KXF0CU2AA00 | Part name: Rubber Leg | Remarks: C-31-3 | Qty: 1

#19. P/N: N510018055AA | Part name: Screw | Remarks: Cross recessed Pan head machine screw M3X5-4.8 A2J (Trivalent) | Qty: 1

#20. P/N: KXF0E1N2A00 | Part name: C Ring | Remarks: 1180201-18010 | Qty: 2

#21. P/N: N510032705AA | Part name: C Ring | Remarks: 1180201-18016 | Qty: 1

#22. P/N: N510022008AA | Part name: Washer | Remarks: FFWSSCH-D30-V12.0-T1.0 | Qty: 18

#23. P/N: N510018631AA | Part name: Screw | Remarks: Cross recessed Countersunk head tapping screw Type-2 with cut-4X8 A2J 68

#24. P/N: N510042422AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M5X12-10.9 A2S (Trivalent) 6

#27. P/N: N510042423AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M5X6-10.9 A2S (Trivalent) 8

#28. P/N: N610136018AA | Part name: Urethane | Qty: 1

#29. P/N: N210076071AB | Part name: Shaft | Qty: 2

#30. P/N: N510042427AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M6X10-10.9 A2S (Trivalent) 14

#31. P/N: N210110201AA | Part name: Spring | Qty: 1

#32. P/N: N210103061AB | Part name: Cover | Qty: 2

#33. P/N: N210160103AA | Part name: Spacer | Qty: 2

#34. P/N: N210006937AA | Part name: Spacer | Qty: 34

#35. P/N: N210181436AA | Part name: Pin | Qty: 1

#36. P/N: N510017534AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M4X6-10.9 A2J (Trivalent) | Qty: 1
