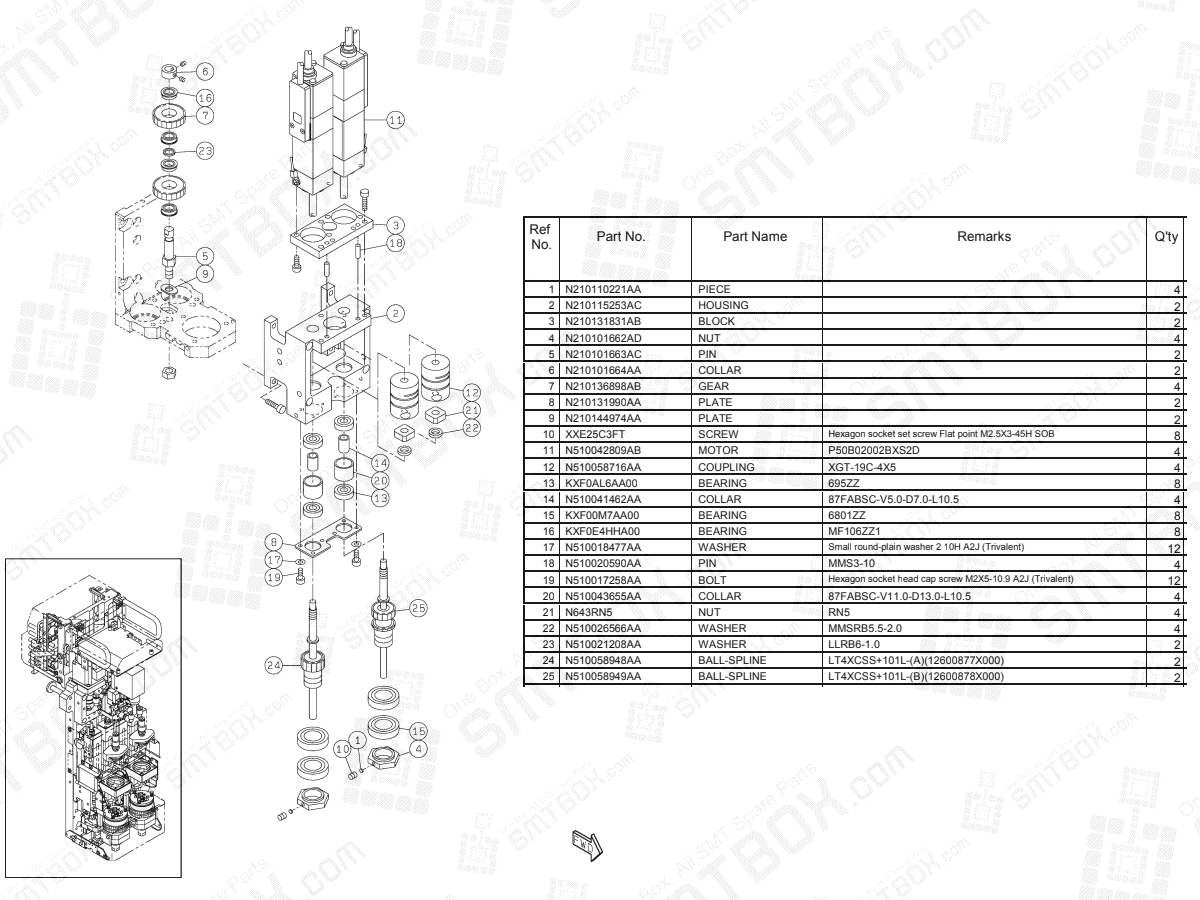

Panasonic NPM Dispenser Head N610157748AA KN610157748AA-05-4

Panasonic Npm Dispenser Head N610157748AA KN610157748AA 05

#1. N210110221AA | Part name: Piece | Qty: 4

#2. N210115253AC | Part name: Housing | Qty: 2

#3. N210131831AB | Part name: Block | Qty: 2

#4. N210101662AD | Part name: Nut | Qty: 4

#5. N210101663AC | Part name: Pin | Qty: 2

#6. N210101664AA | Part name: Collar | Qty: 2

#7. N210136898AB | Part name: Gear | Qty: 4

#8. N210131990AA | Part name: Plate | Qty: 2

#9. N210144974AA | Part name: Plate | Qty: 2

#10. XXE25C3FT | Part name: Screw | Remarks: Hexagon socket set screw Flat point M2.5X3-45H SOB | Qty: 8

#11. N510042809AB | Part name: Motor | Remarks: P50B02002BXS2D | Qty: 4

#12. N510058716AA | Part name: Coupling | Remarks: XGT-19C-4X5 | Qty: 4

#13. KXF0AL6AA00 | Part name: Bearing | Remarks: 695ZZ | Qty: 8

#14. N510041462AA | Part name: Collar | Remarks: 87FABSC-V5.0-D7.0-L10.5 | Qty: 4

#15. KXF00M7AA00 | Part name: Bearing | Remarks: 6801ZZ | Qty: 8

#16. KXF0E4HHA00 | Part name: Bearing | Remarks: MF106ZZ1 | Qty: 8

#17. N510018477AA | Part name: Washer | Remarks: Small round-plain washer 2 10H A2J (Trivalent) 12

#18. N510020590AA | Part name: Pin | Remarks: MMS3-10 | Qty: 4

#19. N510017258AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M2X5-10.9 A2J (Trivalent) 12

#20. N510043655AA | Part name: Collar | Remarks: 87FABSC-V11.0-D13.0-L10.5 | Qty: 4

#21. N643RN5 NUT | Part name: Rn5 | Qty: 4

#22. N510026566AA | Part name: Washer | Remarks: MMSRB5.5-2.0 | Qty: 4

#23. N510021208AA | Part name: Washer | Remarks: LLRB6-1.0 | Qty: 2

#24. N510058948AA | Part name: Ball Spline | Remarks: LT4XCSS+101L-(A)(12600877X000) | Qty: 2

#25. N510058949AA | Part name: Ball Spline | Remarks: LT4XCSS+101L-(B)(12600878X000) | Qty: 2
