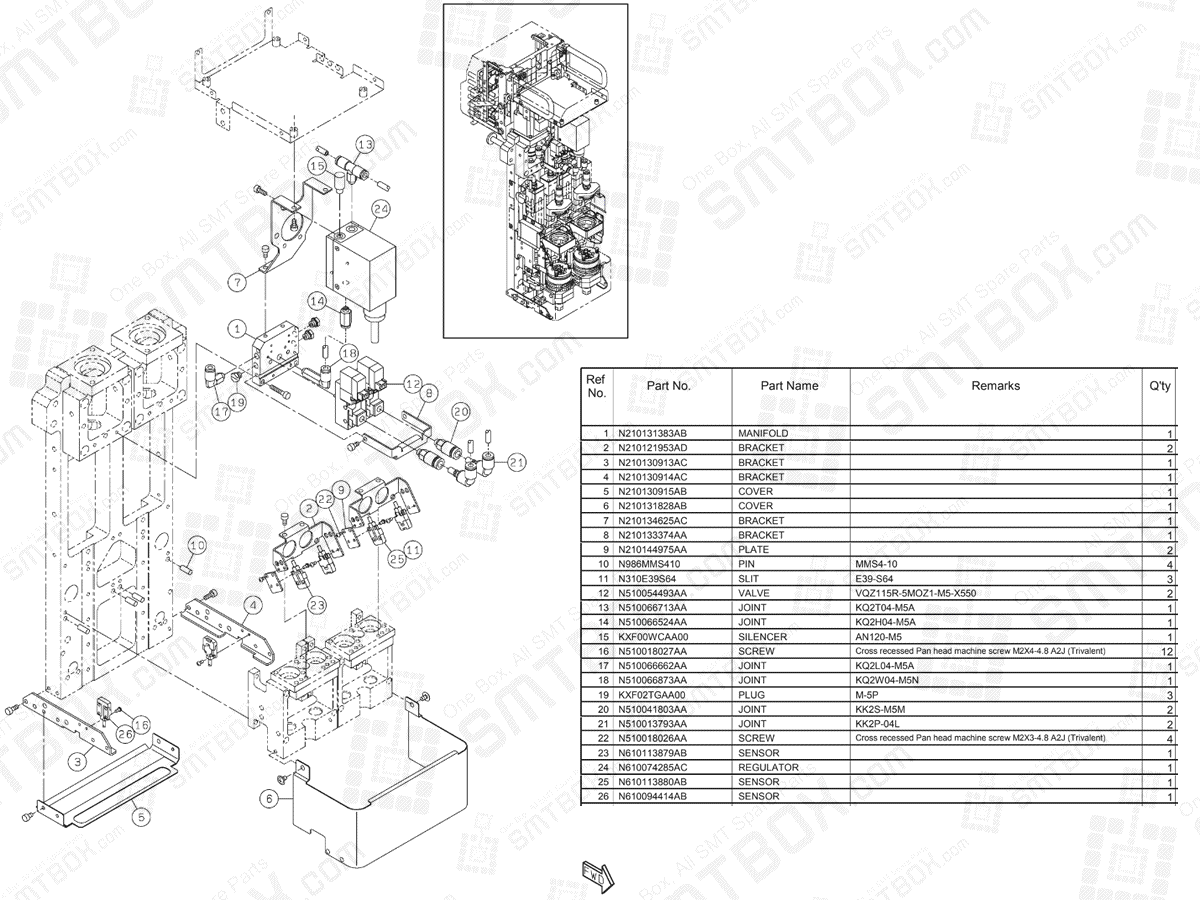

Panasonic NPM Dispenser Head N610157748AA KN610157748AA-05-3

Panasonic NPM Dispenser Head N610157748AA KN610157748AA-05-3

#1. P/N: N210131383AB | Part name: Manifold | Qty: 1

#2. P/N: N210121953AD | Part name: Bracket | Qty: 2

#3. P/N: N210130913AC | Part name: Bracket | Qty: 1

#4. P/N: N210130914AC | Part name: Bracket | Qty: 1

#5. P/N: N210130915AB | Part name: Cover | Qty: 1

#6. P/N: N210131828AB | Part name: Cover | Qty: 1

#7. P/N: N210134625AC | Part name: Bracket | Qty: 1

#8. P/N: N210133374AA | Part name: Bracket | Qty: 1

#9. P/N: N210144975AA | Part name: Plate | Qty: 2

#10. P/N: N986MMS410 | Part name: Pin | Remarks: MMS4-10 | Qty: 4

#11. P/N: N310E39S64 | Part name: Slit | Remarks: E39-S64 | Qty: 3

#12. P/N: N510054493AA | Part name: Valve | Remarks: VQZ115R-5MOZ1-M5-X550 | Qty: 2

#13. P/N: N510066713AA | Part name: Joint | Remarks: KQ2T04-M5A | Qty: 1

#14. P/N: N510066524AA | Part name: Joint | Remarks: KQ2H04-M5A | Qty: 1

#15. P/N: KXF00WCAA00 | Part name: Silencer | Remarks: AN120-M5 | Qty: 1

#16. P/N: N510018027AA | Part name: Screw | Remarks: Cross recessed Pan head machine screw M2X4-4.8 A2J (Trivalent) | Qty: 12

#17. P/N: N510066662AA | Part name: Joint | Remarks: KQ2L04-M5A | Qty: 1

#18. P/N: N510066873AA | Part name: Joint | Remarks: KQ2W04-M5N | Qty: 1

#19. P/N: KXF02TGAA00 | Part name: Plug | Remarks: M-5P | Qty: 3

#20. P/N: N510041803AA | Part name: Joint | Remarks: KK2S-M5M | Qty: 2

#21. P/N: N510013793AA | Part name: Joint | Remarks: KK2P-04L | Qty: 2

#22. P/N: N510018026AA | Part name: Screw | Remarks: Cross recessed Pan head machine screw M2X3-4.8 A2J (Trivalent) | Qty: 4

#23. P/N: N610113879AB | Part name: Sensor | Qty: 1

#24. P/N: N610074285AC | Part name: Regulator | Qty: 1

#25. P/N: N610113880AB | Part name: Sensor | Qty: 1

#26. P/N: N610094414AB | Part name: Sensor | Qty: 1
