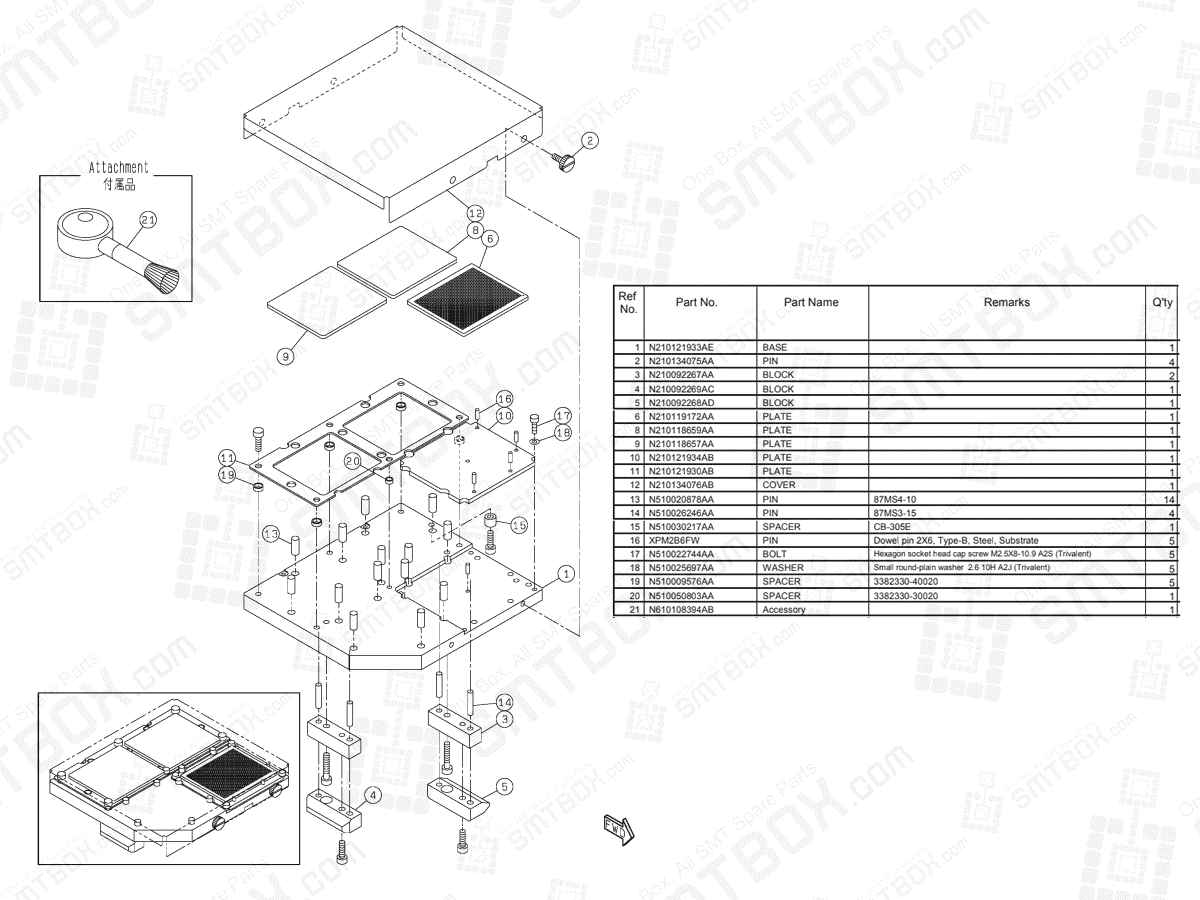

Panasonic NPM D3 Proofreading Treatment Device Fixation Part N610097389AA KN610097389AA-15

Panasonic NPM D3 Proofreading Treatment Device Fixation Part N610097389AA KN610097389AA-15

#1. P/N: N210121933AE | Part name: Base | Qty: 1

#2. P/N: N210134075AA | Part name: Pin | Qty: 4

#3. P/N: N210092267AA | Part name: Block | Qty: 2

#4. P/N: N210092269AC | Part name: Block | Qty: 1

#5. P/N: N210092268AD | Part name: Block | Qty: 1

#6. P/N: N210119172AA | Part name: Plate | Qty: 1

#8. P/N: N210118659AA | Part name: Plate | Qty: 1

#9. P/N: N210118657AA | Part name: Plate | Qty: 1

#10. P/N: N210121934AB | Part name: Plate | Qty: 1

#11. P/N: N210121930AB | Part name: Plate | Qty: 1

#12. P/N: N210134076AB | Part name: Cover | Qty: 1

#13. P/N: N510020878AA | Part name: Pin | Remarks: 87MS4-10 | Qty: 14

#14. P/N: N510026246AA | Part name: Pin | Remarks: 87MS3-15 | Qty: 4

#15. P/N: N510030217AA | Part name: Spacer | Remarks: CB-305E | Qty: 1

#16. P/N: XPM2B6FW PIN | Part name: Dowel | Remarks: pin 2X6, Type-B, Steel, Substrate | Qty: 5

#17. P/N: N510022744AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M2.5X8-10.9 A2S (Trivalent) | Qty: 5

#18. P/N: N510025697AA | Part name: Washer | Remarks: Small round-plain washer 2.6 10H A2J (Trivalent) | Qty: 5

#19. P/N: N510009576AA | Part name: Spacer | Remarks: 3382330-40020 | Qty: 5

#20. P/N: N510050803AA | Part name: Spacer | Remarks: 3382330-30020 | Qty: 1

#21. P/N: N610108394AB | Part name: Accessory | Qty: 1
