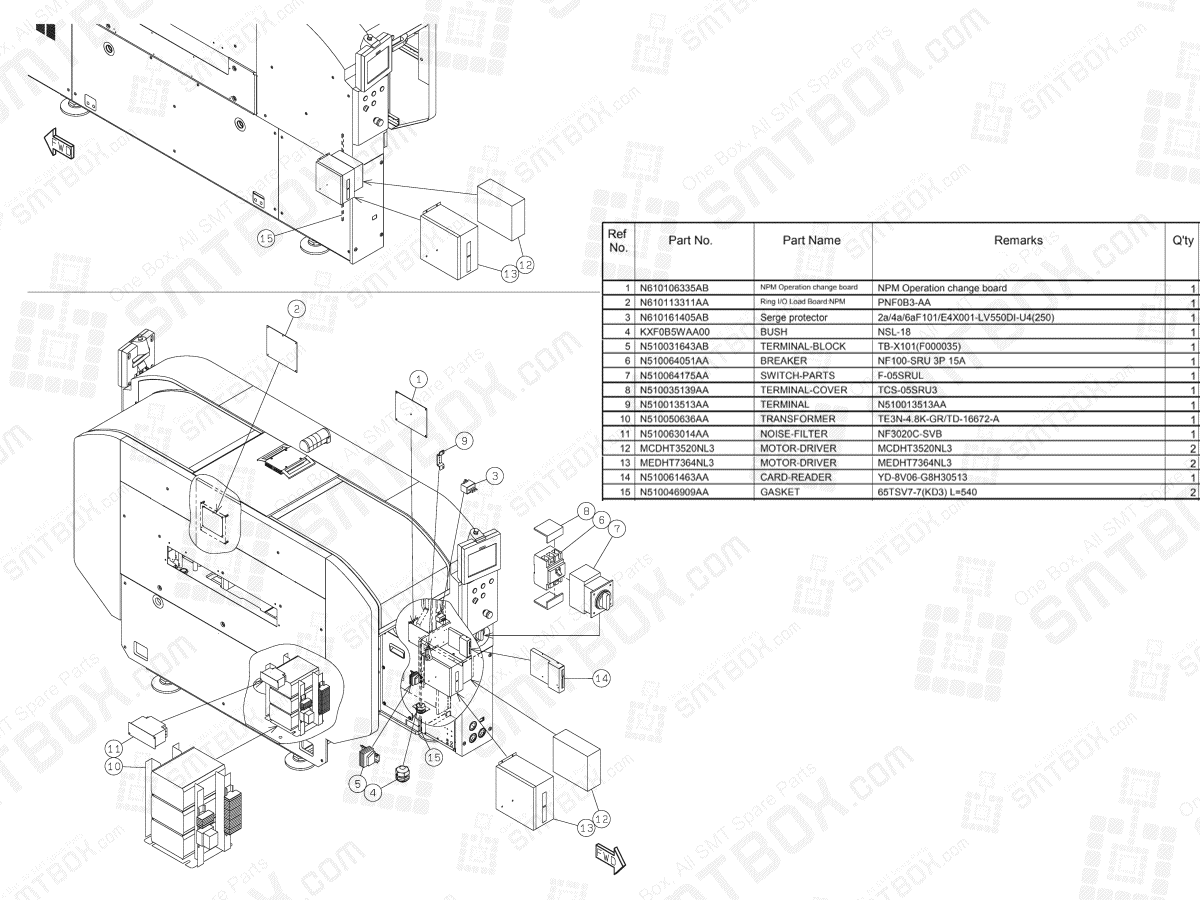

#1. P/N: N610106335AB | Part name: NPM Operation Change Board | Qty: 1
#2. P/N: N610113311AA | Part name: Ring I/O Load Board: NPM | Remarks: PNF0B3-AA | Qty: 1
#3. P/N: N610161405AB | Part name: Serge Protector | Remarks: 2a/4a/6aF101/E4X001-LV550DI-U4(250) | Qty: 1
#4. P/N: KXF0B5WAA00 | Part name: Bush | Remarks: Nsl-18 | Qty: 1
#5. P/N: N510031643AB | Part name: Terminal Block | Remarks: TB-X101(F000035) | Qty: 1
#6. P/N: N510064051AA | Part name: Breaker | Remarks: NF100-SRU 3P 15A | Qty: 1
#7. P/N: N510064175AA | Part name: Switch Parts | Remarks: F-05SRUL | Qty: 1
#8. P/N: N510035139AA | Part name: Terminal Cover | Remarks: TCS-05SRU3 | Qty: 1
#9. P/N: N510013513AA | Part name: Terminal | Qty: 1
#10. P/N: N510050636AA | Part name: Transformer | Remarks: TE3N-4.8K-GR/TD-16672-A | Qty: 1
#11. P/N: N510063014AA | Part name: Noise Filter | Remarks: NF3020C-SVB | Qty: 1
#12. P/N: MCDHT3520NL3 | Part name: Motor Driver | Remarks: MCDHT3520NL3 | Qty: 2
#13. P/N: MEDHT7364NL3 | Part name: Motor Driver | Remarks: MEDHT7364NL3 | Qty: 2
#14. P/N: N510061463AA | Part name: Card Reader | Remarks: YD-8V06-G8H30513 | Qty: 1
#15. P/N: N510046909AA | Part name: Gasket | Remarks: 65TSV7-7(KD3) L=540 | Qty: 2
