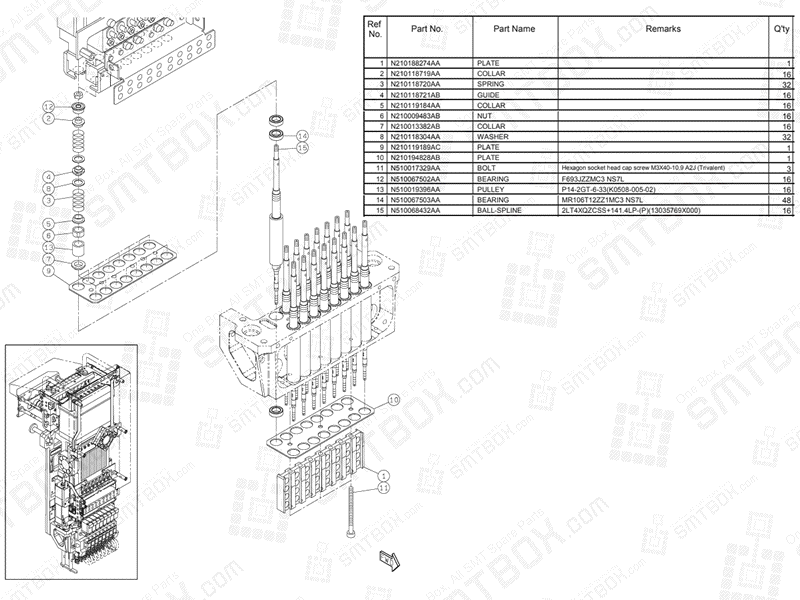

KN610159207AA-10-2 NPM Light weight 16 Nozzle Head

#1. P/N: N210188274AA | Part name: Plate | Qty: 1

#2. P/N: N210118719AA | Part name: Collar | Qty: 16

#3. P/N: N210118720AA | Part name: Spring | Qty: 32

#4. P/N: N210118721AB | Part name: Guide | Qty: 16

#5. P/N: N210119184AA | Part name: Collar | Qty: 16

#6. P/N: N210009483AB | Part name: Nut | Qty: 16

#7. P/N: N210013382AB | Part name: Collar | Qty: 16

#8. P/N: N210118304AA | Part name: Washer | Qty: 32

#9. P/N: N210119189AC | Part name: Plate | Qty: 1

#10. P/N: N210194828AB | Part name: Plate | Qty: 1

#11. P/N: N510017329AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X40-10.9 A2J (Trivalent) | Qty: 3

#12. P/N: N510067502AA | Part name: Bearing | Remarks: F693JZZMC3 NS7L | Qty: 16

#13. P/N: N510019396AA | Part name: Pulley | Remarks: P14-2GT-6-33(K0508-005-02) | Qty: 16

#14. P/N: N510067503AA | Part name: Bearing | Remarks: MR106T12ZZ1MC3 NS7L | Qty: 48

#15. P/N: N510068432AA | Part name: Ball Spline | Remarks: 2LT4XQZCSS+141.4LP-(P)(13035769X000) | Qty: 16
