NPM-D3 Feeder Cart Drive Unit (Rear Side) N610160990AA

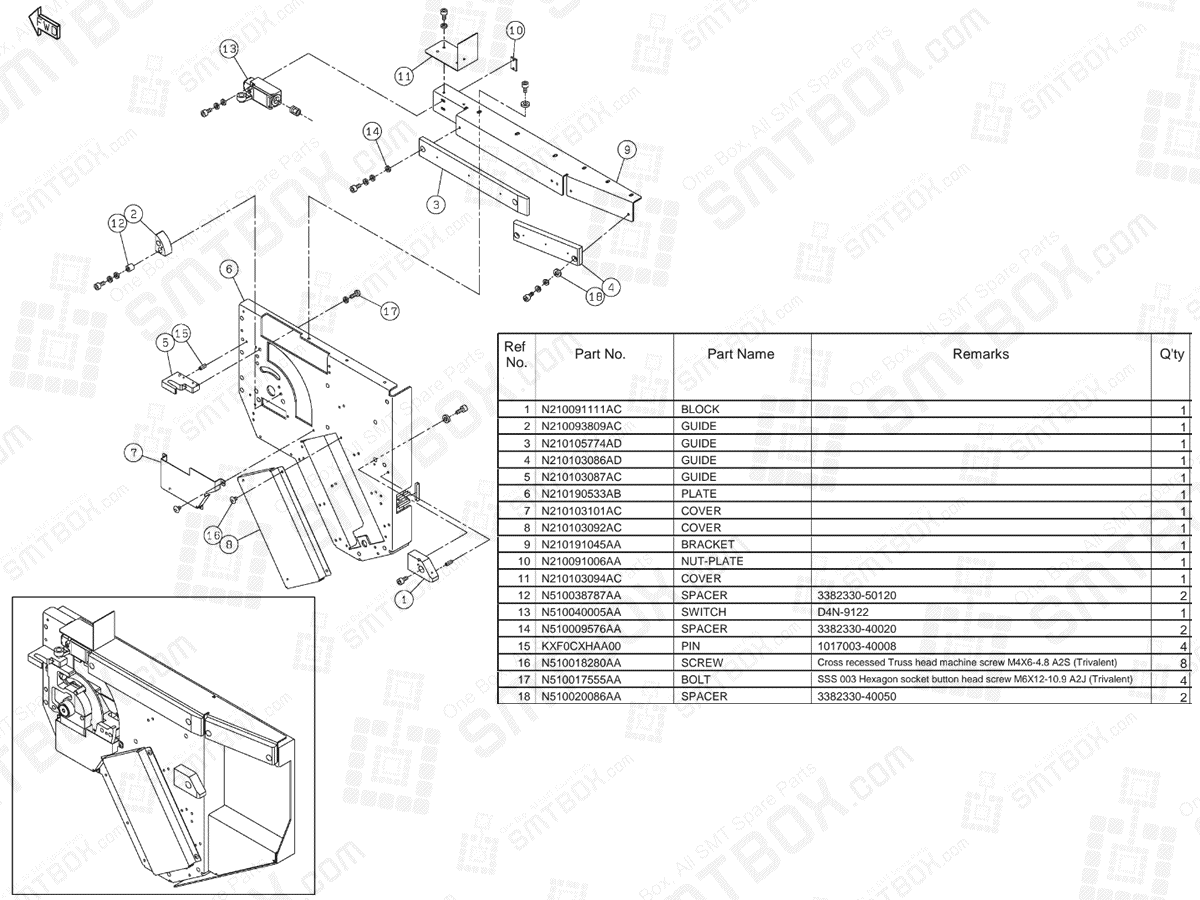

#1. P/N: N210091111AC | Part name: Block | Qty: 1

#2. P/N: N210093809AC | Part name: Guide | Qty: 1

#3. P/N: N210105774AD | Part name: Guide | Qty: 1

#4. P/N: N210103086AD | Part name: Guide | Qty: 1

#5. P/N: N210103087AC | Part name: Guide | Qty: 1

#6. P/N: N210190533AB | Part name: Plate | Qty: 1

#7. P/N: N210103101AC | Part name: Cover | Qty: 1

#8. P/N: N210103092AC | Part name: Cover | Qty: 1

#9. P/N: N210191045AA | Part name: Bracket | Qty: 1

#10. P/N: N210091006AA | Part name: Nut-Plate | Qty: 1

#11. P/N: N210103094AC | Part name: Cover | Qty: 1

#12. P/N: N510038787AA | Part name: Spacer | Remarks: 3382330-50120 | Qty: 2

#13. P/N: N510040005AA | Part name: Switch | Remarks: D4N-9122 | Qty: 1

#14. P/N: N510009576AA | Part name: Spacer | Remarks: 3382330-40020 | Qty: 2

#15. P/N: KXF0CXHAA00 | Part name: Pin | Remarks: 1017003-40008 | Qty: 4

#16. P/N: N510018280AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X6-4.8 A2S (Trivalent) | Qty: 8

#17. P/N: N510017555AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M6X12-10.9 A2J (Trivalent) | Qty: 4

#18. P/N: N510020086AA | Part name: Spacer | Remarks: 3382330-40050 | Qty: 2

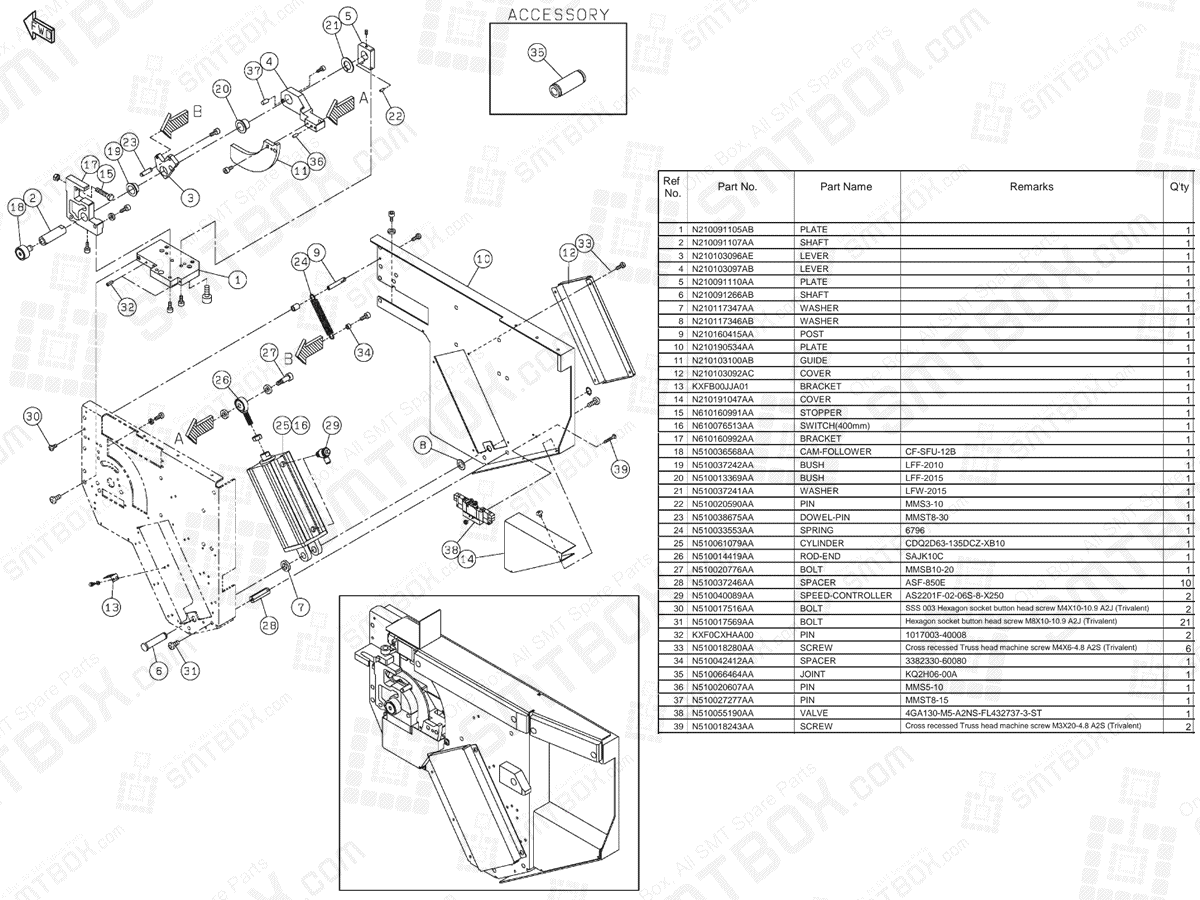

#1. P/N: N210091105AB | P/N: Plate | Qty: 1

#2. P/N: N210091107AA | P/N: Shaft | Qty: 1

#3. P/N: N210103096AE | P/N: Lever | Qty: 1

#4. P/N: N210103097AB | P/N: Lever | Qty: 1

#5. P/N: N210091110AA | P/N: Plate | Qty: 1

#6. P/N: N210091266AB | P/N: Shaft | Qty: 1

#7. P/N: N210117347AA | P/N: Washer | Qty: 1

#8. P/N: N210117346AB | P/N: Washer | Qty: 1

#9. P/N: N210160415AA | P/N: Post | Qty: 1

#10. P/N: N210190534AA | P/N: Plate | Qty: 1

#11. P/N: N210103100AB | P/N: Guide | Qty: 1

#12. P/N: N210103092AC | P/N: Cover | Qty: 1

#13. P/N: KXFB00JJA01 | P/N: Bracket | Qty: 1

#14. P/N: N210191047AA | P/N: Cover | Qty: 1

#15. P/N: N610160991AA | P/N: Stopper | Qty: 1

#16. P/N: N610076513AA | P/N: Switch(400Mm) | Qty: 1

#17. P/N: N610160992AA | P/N: Bracket | Qty: 1

#18. P/N: N510036568AA | P/N: Cam Follower | Remarks: CF-SFU-12B | Qty: 1

#19. P/N: N510037242AA | P/N: Bush | Remarks: LFF-2010 | Qty: 1

#20. P/N: N510013369AA | P/N: Bush | Remarks: LFF-2015 | Qty: 1

#21. P/N: N510037241AA | P/N: Washer | Remarks: LFW-2015 | Qty: 1

#22. P/N: N510020590AA | P/N: Pin | Remarks: MMS3-10 | Qty: 1

#23. P/N: N510038675AA | P/N: Dowel-Pin | Remarks: MMST8-30 | Qty: 1

#24. P/N: N510033553AA | P/N: Spring | Remarks: 6796 | Qty: 1

#25. P/N: N510061079AA | P/N: Cylinder | Remarks: CDQ2D63-135DCZ-XB10 | Qty: 1

#26. P/N: N510014419AA | P/N: Rod-End | Remarks: SAJK10C | Qty: 1

#27. P/N: N510020776AA | P/N: Bolt | Remarks: MMSB10-20 | Qty: 1

#28. P/N: N510037246AA | P/N: Spacer | Remarks: ASF-850E | Qty: 10

#29. P/N: N510040089AA | P/N: Speed Controller | Remarks: AS2201F-02-06S-8-X250 | Qty: 2

#30. P/N: N510017516AA | P/N: Bolt | Remarks: SSS 003 Hexagon socket button head screw M4X10-10.9 A2J (Trivalent) | Qty: 2

#31. P/N: N510017569AA | P/N: Bolt | Remarks: Hexagon socket button head screw M8X10-10.9 A2J (Trivalent) 2 | Qty: 1

#32. P/N: KXF0CXHAA00 | P/N: Pin | Remarks: 1017003-40008 | Qty: 2

#33. P/N: N510018280AA | P/N: Screw | Remarks: Cross recessed Truss head machine screw M4X6-4.8 A2S (Trivalent) | Qty: 6

#34. P/N: N510042412AA | P/N: Spacer | Remarks: 3382330-60080 | Qty: 1

#35. P/N: N510066464AA | P/N: Joint | Remarks: KQ2H06-00A | Qty: 1

#36. P/N: N510020607AA | P/N: Pin | Remarks: MMS5-10 | Qty: 1

#37. P/N: N510027277AA | P/N: Pin | Remarks: MMST8-15 | Qty: 1

#38. P/N: N510055190AA | P/N: Valve | Remarks: 4GA130-M5-A2NS-FL432737-3-ST | Qty: 1

#39. P/N: N510018243AA | P/N: Screw | Remarks: Cross recessed Truss head machine screw M3X20-4.8 A2S (Trivalent) | Qty: 2
