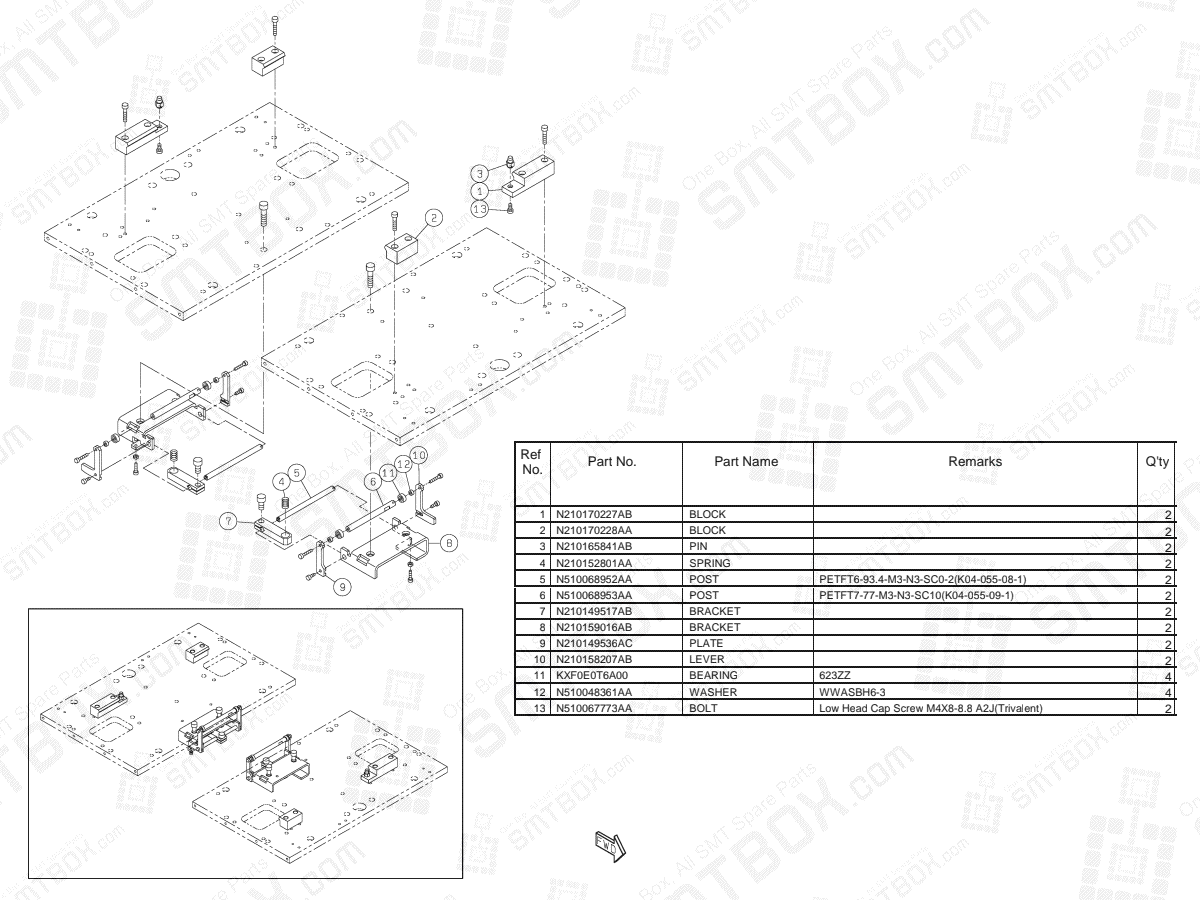

Panasonic NPM-D2 Batch Exchange Unit For Board Support Block N610150749AA KN610150749AA-04

#1. P/N: N210170227AB | Part name: Block | Qty:2

#2. P/N: N210170228AA | Part name: Block | Qty:2

#3. P/N: N210165841AB | Part name: Pin | Qty:2

#4. P/N: N210152801AA | Part name: Spring | Qty:2

#5. P/N: N510068952AA | Part name: Post | Remarks: PETFT6-93.4-M3-N3-SC0-2(K04-055-08-1) | Qty:2

#6. P/N: N510068953AA | Part name: Post | Remarks: PETFT7-77-M3-N3-SC10(K04-055-09-1) | Qty:2

#7. P/N: N210149517AB | Part name: Bracket | Qty:2

#8. P/N: N210159016AB | Part name: Bracket | Qty:2

#9. P/N: N210149536AC | Part name: Plate | Qty:2

#10. P/N: N210158207AB | Part name: Lever | Qty:2

#11. P/N: KXF0E0T6A00 | Part name: Bearing | Remarks: 623ZZ | Qty:4

#12. P/N: N510048361AA | Part name: Washer | Remarks: WWASBH6-3 | Qty:4

#13. P/N: N510067773AA | Part name: Bolt | Remarks: Low Head Cap Screw M4X8-8.8 A2J(Trivalent) | Qty:2
