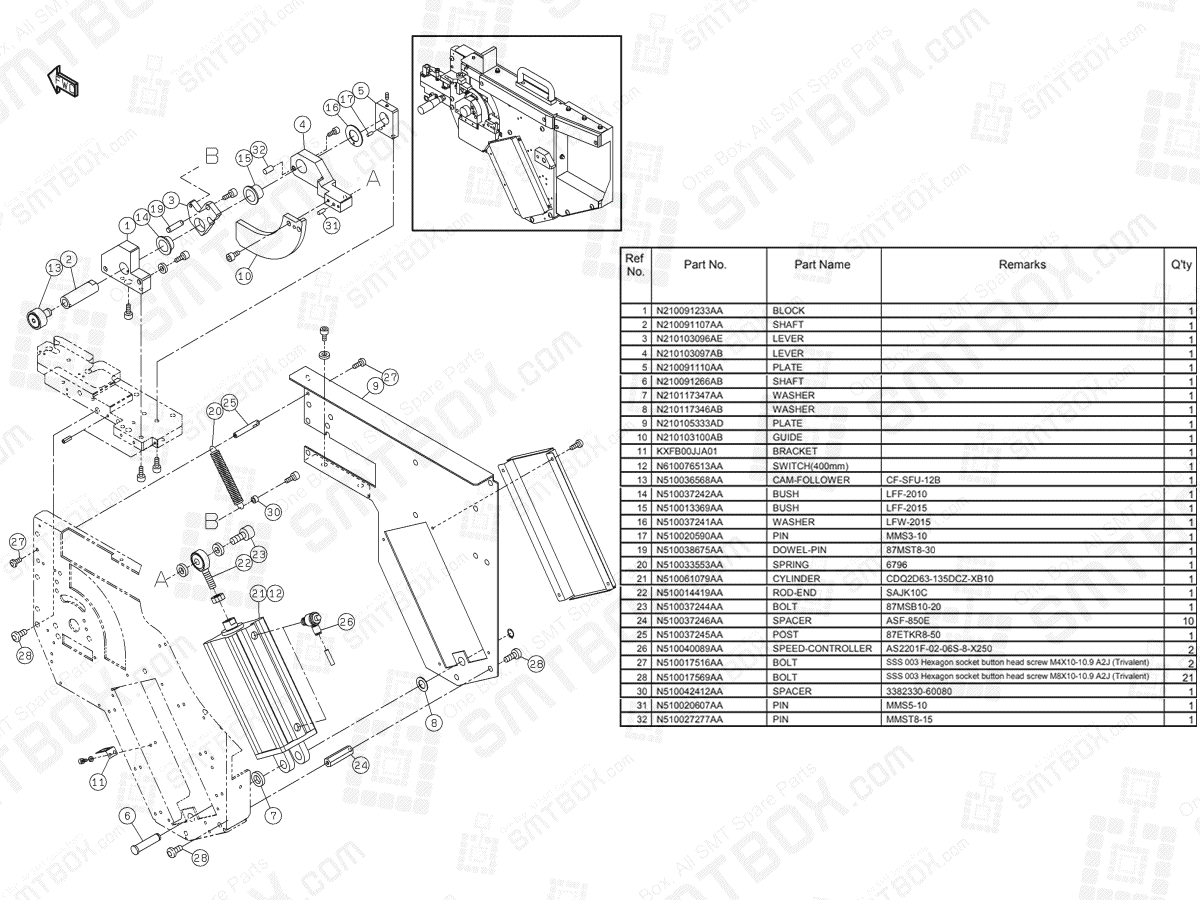

Panasonic NPM-D Feeder Cart Drive Unit(Changing Specification) N610112809AA KN610112809AA-09-2

#1. P/N: N210091233AA | Part name: Block | Qty: 1

#2. P/N: N210091107AA | Part name: Shaft | Qty: 1

#3. P/N: N210103096AE | Part name: Lever | Qty: 1

#4. P/N: N210103097AB | Part name: Lever | Qty: 1

#5. P/N: N210091110AA | Part name: Plate | Qty: 1

#6. P/N: N210091266AB | Part name: Shaft | Qty: 1

#7. P/N: N210117347AA | Part name: Washer | Qty: 1

#8. P/N: N210117346AB | Part name: Washer | Qty: 1

#9. P/N: N210105333AD | Part name: Plate | Qty: 1

#10. P/N: N210103100AB | Part name: Guide | Qty: 1

#11. P/N: KXFB00JJA01 | Part name: Bracket | Qty: 1

#12. P/N: N610076513AA | Part name: Switch(400Mm) | Qty: 1

#13. P/N: N510036568AA | Part name: Cam Follower | Remarks: CF-SFU-12B | Qty: 1

#14. P/N: N510037242AA | Part name: Bush | Remarks: LFF-2010 | Qty: 1

#15. P/N: N510013369AA | Part name: Bush | Remarks: LFF-2015 | Qty: 1

#16. P/N: N510037241AA | Part name: Washer | Remarks: LFW-2015 | Qty: 1

#17. P/N: N510020590AA | Part name: Pin | Remarks: MMS3-10 | Qty: 1

#19. P/N: N510038675AA | Part name: Dowel-Pin | Remarks: 87MST8-30 | Qty: 1

#20. P/N: N510033553AA | Part name: Spring | Remarks: 6796 | Qty: 1

#21. P/N: N510061079AA | Part name: Cylinder | Remarks: CDQ2D63-135DCZ-XB10 | Qty: 1

#22. P/N: N510014419AA | Part name: Rod-End | Remarks: SAJK10C | Qty: 1

#23. P/N: N510037244AA | Part name: Bolt | Remarks: 87MSB10-20 | Qty: 1

#24. P/N: N510037246AA | Part name: Spacer | Remarks: ASF-850E 10

#25. P/N: N510037245AA | Part name: Post | Remarks: 87ETKR8-50 | Qty: 1

#26. P/N: N510040089AA | Part name: Speed Controller | Remarks: AS2201F-02-06S-8-X250 | Qty: 2

#27. P/N: N510017516AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M4X10-10.9 A2J (Trivalent) | Qty: 2

#28. P/N: N510017569AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M8X10-10.9 A2J (Trivalent) | Qty: 21

#30. P/N: N510042412AA | Part name: Spacer | Remarks: 3382330-60080 | Qty: 1

#31. P/N: N510020607AA | Part name: Pin | Remarks: MMS5-10 | Qty: 1

#32. P/N: N510027277AA | Part name: Pin | Remarks: MMST8-15 1
