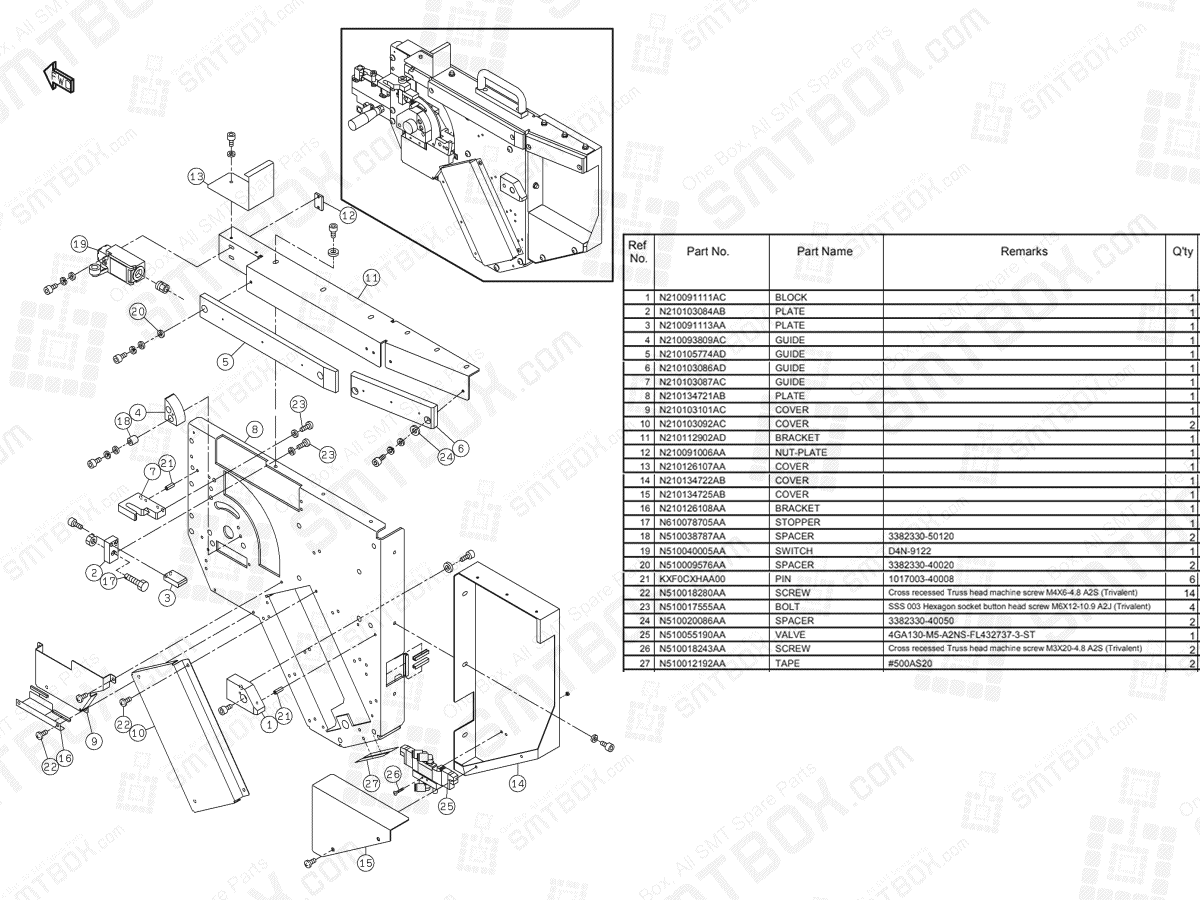

Panasonic NPM-D Feeder Cart Drive Unit(Changing Specification) N610112809AA KN610112809AA-09-1

#1. P/N: N210091111AC | Part name: Block | Qty: 1

#2. P/N: N210103084AB | Part name: Plate | Qty: 1

#3. P/N: N210091113AA | Part name: Plate | Qty: 1

#4. P/N: N210093809AC | Part name: Guide | Qty: 1

#5. P/N: N210105774AD | Part name: Guide | Qty: 1

#6. P/N: N210103086AD | Part name: Guide | Qty: 1

#7. P/N: N210103087AC | Part name: Guide | Qty: 1

#8. P/N: N210134721AB | Part name: Plate | Qty: 1

#9. P/N: N210103101AC | Part name: Cover | Qty: 1

#10. P/N: N210103092AC | Part name: Cover | Qty: 2

#11. P/N: N210112902AD | Part name: Bracket | Qty: 1

#12. P/N: N210091006AA | Part name: Nut-Plate | Qty: 1

#13. P/N: N210126107AA | Part name: Cover | Qty: 1

#14. P/N: N210134722AB | Part name: Cover | Qty: 1

#15. P/N: N210134725AB | Part name: Cover | Qty: 1

#16. P/N: N210126108AA | Part name: Bracket | Qty: 1

#17. P/N: N610078705AA | Part name: Stopper | Qty: 1

#18. P/N: N510038787AA | Part name: Spacer | Remarks: 3382330-50120 | Qty: 2

#19. P/N: N510040005AA | Part name: Switch | Remarks: D4N-9122 | Qty: 1

#20. P/N: N510009576AA | Part name: Spacer | Remarks: 3382330-40020 | Qty: 2

#21. P/N: KXF0CXHAA00 | Part name: Pin | Remarks: 1017003-40008 | Qty: 6

#22. P/N: N510018280AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X6-4.8 A2S (Trivalent) 14

#23. P/N: N510017555AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M6X12-10.9 A2J (Trivalent) 4

#24. P/N: N510020086AA | Part name: Spacer | Remarks: 3382330-40050 | Qty: 2

#25. P/N: N510055190AA | Part name: Valve | Remarks: 4GA130-M5-A2NS-FL432737-3-ST | Qty: 1

#26. P/N: N510018243AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M3X20-4.8 A2S (Trivalent) | Qty: 2

#27. P/N: N510012192AA | Part name: Tape | Remarks: #500AS20 | Qty: 2
