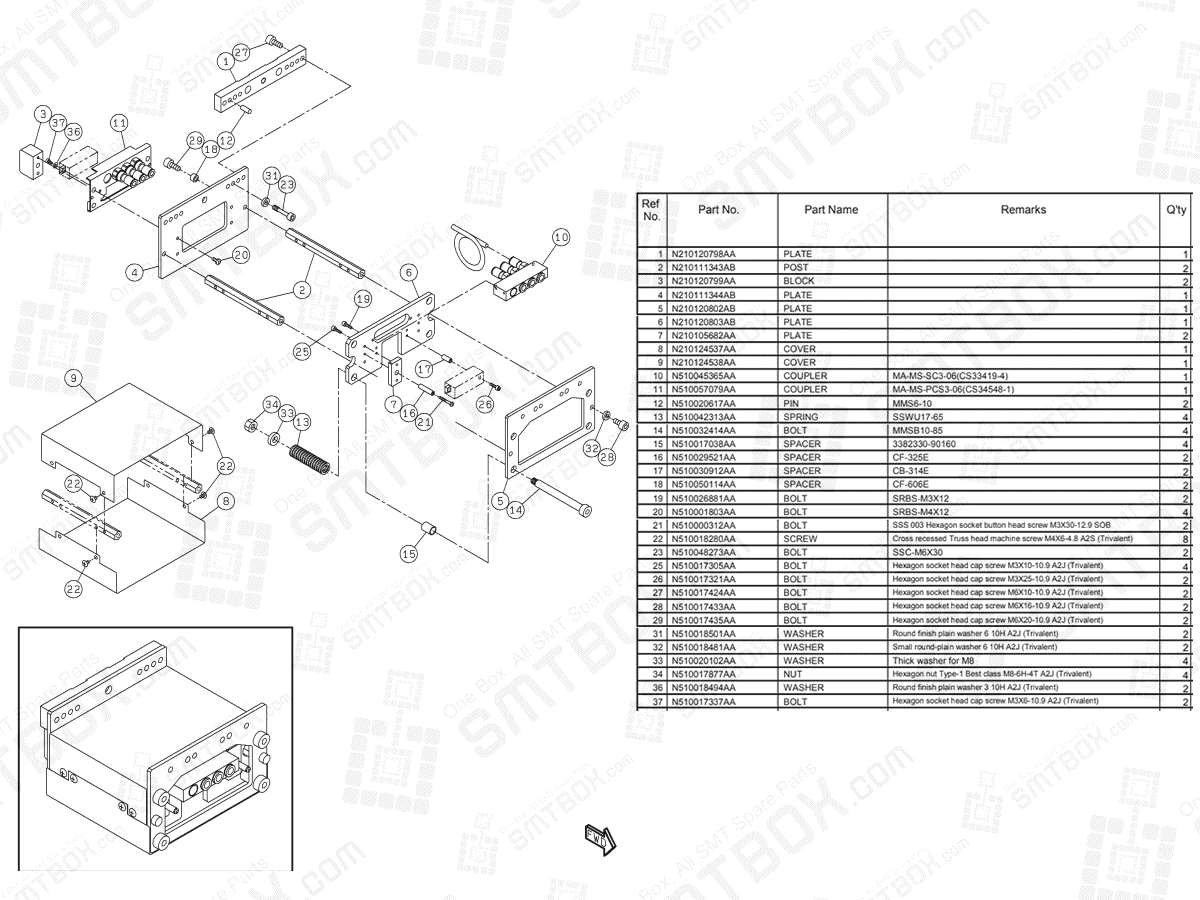

Panasonic NPM Coupler Extension Part N610090796AA

#1. P/N: N210120798AA | Part name: Plate | Qty: 1

#2. P/N: N210111343AB | Part name: Post | Qty: 2

#3. P/N: N210120799AA | Part name: Block | Qty: 2

#4. P/N: N210111344AB | Part name: Plate | Qty: 1

#5. P/N: N210120802AB | Part name: Plate | Qty: 1

#6. P/N: N210120803AB | Part name: Plate | Qty: 1

#7. P/N: N210105682AA | Part name: Plate | Qty: 2

#8. P/N: N210124537AA | Part name: Cover | Qty: 1

#9. P/N: N210124538AA | Part name: Cover | Qty: 1

#10. P/N: N510045365AA | Part name: Coupler | Remarks: MA-MS-SC3-06(CS33419-4) | Qty: 1

#11. P/N: N510057079AA | Part name: Coupler | Remarks: MA-MS-PCS3-06(CS34548-1) | Qty: 1

#12. P/N: N510020617AA | Part name: Pin | Remarks: MMS6-10 | Qty: 2

#13. P/N: N510042313AA | Part name: Spring | Remarks: SSWU17-65 | Qty: 4

#14. P/N: N510032414AA | Part name: Bolt | Remarks: MMSB10-85 | Qty: 4

#15. P/N: N510017038AA | Part name: Spacer | Remarks: 3382330-90160 | Qty: 4

#16. P/N: N510029521AA | Part name: Spacer | Remarks: CF-325E | Qty: 2

#17. P/N: N510030912AA | Part name: Spacer | Remarks: CB-314E | Qty: 2

#18. P/N: N510050114AA | Part name: Spacer | Remarks: CF-606E | Qty: 2

#19. P/N: N510026881AA | Part name: Bolt | Remarks: SRBS-M3X12 | Qty: 2

#20. P/N: N510001803AA | Part name: Bolt | Remarks: SRBS-M4X12 | Qty: 4

#21. P/N: N510000312AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M3X30-12.9 SOB | Qty: 2

#22. P/N: N510018280AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X6-4.8 A2S (Trivalent) | Qty: 8

#23. P/N: N510048273AA | Part name: Bolt | Remarks: SSC-M6X30 | Qty: 2

#25. P/N: N510017305AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X10-10.9 A2J (Trivalent) | Qty: 4

#26. P/N: N510017321AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X25-10.9 A2J (Trivalent) | Qty: 2

#27. P/N: N510017424AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M6X10-10.9 A2J (Trivalent) | Qty: 2

#28. P/N: N510017433AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M6X16-10.9 A2J (Trivalent) | Qty: 2

#29. P/N: N510017435AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M6X20-10.9 A2J (Trivalent) | Qty: 2

#31. P/N: N510018501AA | Part name: Washer | Remarks: Round finish plain washer 6 10H A2J (Trivalent) | Qty: 2

#32. P/N: N510018481AA | Part name: Washer | Remarks: Small round-plain washer 6 10H A2J (Trivalent) | Qty: 2

#33. P/N: N510020102AA | Part name: Washer | Remarks: Thick washer for M8 | Qty: 4

#34. P/N: N510017877AA | Part name: Nut | Remarks: Hexagon nut Type-1 Best class M8-6H-4T A2J (Trivalent) | Qty: 4

#36. P/N: N510018494AA | Part name: Washer | Remarks: Round finish plain washer 3 10H A2J (Trivalent) | Qty: 2

#37. P/N: N510017337AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent) | Qty: 2
