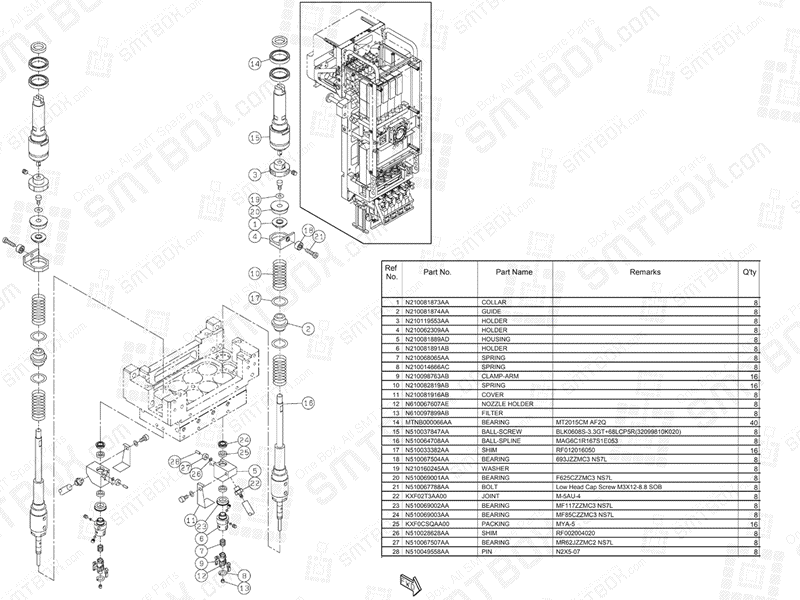

KN610157742AA-07-6 NPM 8 Nozzle Head N610157742AA

#1. P/N: N210081873AA | Part name: Collar | Qty: 8

#2. P/N: N210081874AA | Part name: Guide | Qty: 8

#3. P/N: N210119553AA | Part name: Holder | Qty: 8

#4. P/N: N210062309AA | Part name: Holder | Qty: 8

#5. P/N: N210081889AD | Part name: Housing | Qty: 8

#6. P/N: N210081891AB | Part name: Holder | Qty: 8

#7. P/N: N210068065AA | Part name: Spring | Qty: 8

#8. P/N: N210014666AC | Part name: Spring | Qty: 8

#9. P/N: N210098763AB | Part name: Clamp Arm | Qty: 16

#10. P/N: N210082819AB | Part name: Spring | Qty: 16

#11. P/N: N210081916AB | Part name: Cover | Qty: 8

#12. P/N: N610067607AE | Part name: Nozzle Holder | Qty: 8

#13. P/N: N610097899AB | Part name: Filter | Qty: 8

#14. P/N: MTNB000066AA | Part name: Bearing | Remarks: MT2015CM AF2Q | Qty: 40

#15. P/N: N510037847AA | Part name: Ball Screw | Remarks: BLK0608S-3.3GT+68LCP5R(32099810K020) | Qty: 8

#16. P/N: N510064708AA | Part name: Ball Spline | Remarks: MAG6C1R167S1E053 | Qty: 8

#17. P/N: N510033382AA | Part name: Shim | Remarks: RF012016050 | Qty: 16

#18. P/N: N510067504AA | Part name: Bearing | Remarks: 693JZZMC3 NS7L | Qty: 8

#19. P/N: N210160245AA | Part name: Washer | Qty: 8

#20. P/N: N510069001AA | Part name: Bearing | Remarks: F625CZZMC3 NS7L | Qty: 8

#21. P/N: N510067788AA | Part name: Bolt | Remarks: Low Head Cap Screw M3X12-8.8 SOB | Qty: 8

#22. P/N: KXF02T3AA00 | Part name:Joint | Remarks: M-5AU-4 | Qty: 8

#23. P/N: N510069002AA | Part name: Bearing | Remarks: MF117ZZMC3 NS7L | Qty: 8

#24. P/N: N510069003AA | Part name: Bearing | Remarks: MF85CZZMC3 NS7L | Qty: 8

#25. P/N: KXF0CSQAA00 | Part name:Packing | Remarks: MYA-5 | Qty: 16

#26. P/N: N510028628AA | Part name: Shim | Remarks: RF002004020 | Qty: 8

#27. P/N: N510067507AA | Part name: Bearing | Remarks: MR62JZZMC2 NS7L | Qty: 8

#28. P/N: N510049558AA | Part name: Pin | Remarks: N2X5-07 | Qty: 8
