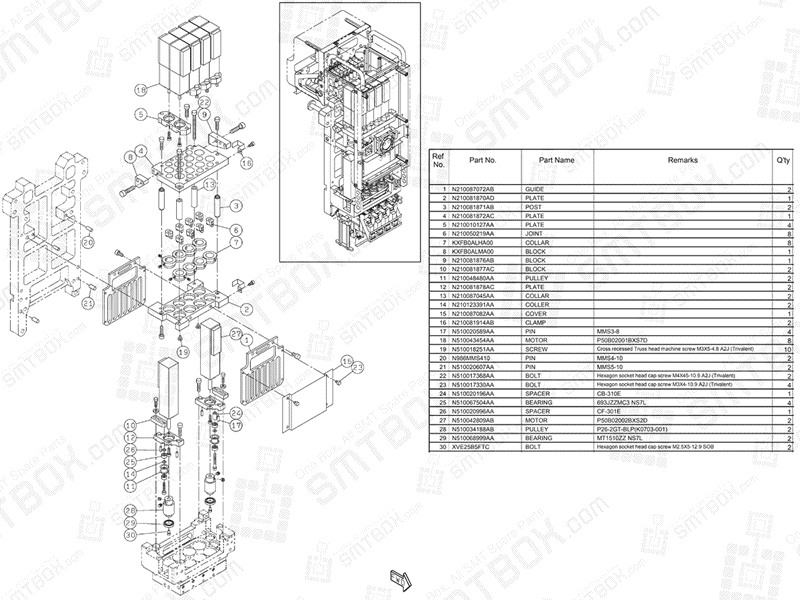

Panasonic NPM 8 Nozzle Head N610157742AA KN610157742AA-07-4

#1. P/N: N210087072AB | Part name: Guide | Qty: 2

#2. P/N: N210081870AD | Part name: Plate | Qty: 1

#3. P/N: N210081871AB | Part name: Post | Qty: 2

#4. P/N: N210081872AC | Part name: Plate | Qty: 1

#5. P/N: N210010127AA | Part name: Plate | Qty: 4

#6. P/N: N210050219AA | Part name: Joint | Qty: 8

#7. P/N: KXFB0ALHA00 | Part name: Collar | Qty: 8

#8. P/N: KXFB0ALMA00 | Part name: Block | Qty: 1

#9. P/N: N210081876AB | Part name: Block | Qty: 1

#10. P/N: N210081877AC | Part name: Block | Qty: 2

#11. P/N: N210048480AA | Part name: Pulley | Qty: 2

#12. P/N: N210081878AC | Part name: Plate | Qty: 2

#13. P/N: N210087045AA | Part name: Collar | Qty: 2

#14. P/N: N210123391AA | Part name: Coller | Qty: 2

#15. P/N: N210087082AA | Part name: Cover | Qty: 1

#16. P/N: N210081914AB | Part name: Clamp | Qty: 2

#17. P/N: N510020589AA | Part name: Pin | Remarks: MMS3-8 | Qty: 4

#18. P/N: N510043454AA | Part name: Motor | Remarks: P50B02001BXS7D | Qty: 8

#19. P/N: N510018251AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M3X5-4.8 A2J (Trivalent) 10

#20. P/N: N986MMS410 | Part name: Pin | Remarks: MMS4-10 | Qty: 2

#21. P/N: N510020607AA | Part name: Pin | Remarks: MMS5-10 | Qty: 2

#22. P/N: N510017368AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M4X45-10.9 A2J (Trivalent) | Qty: 2

#23. P/N: N510017330AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X4-10.9 A2J (Trivalent) | Qty: 4

#24. P/N: N510020196AA | Part name: Spacer | Remarks: CB-310E | Qty: 1

#25. P/N: N510067504AA | Part name: Bearing | Remarks: 693JZZMC3 NS7L | Qty: 4

#26. P/N: N510020996AA | Part name: Spacer | Remarks: CF-301E | Qty: 1

#27. P/N: N510042809AB | Part name: Motor | Remarks: P50B02002BXS2D | Qty: 2

#28. P/N: N510034188AB | Part name: Pulley | Remarks: P26-2GT-BLP(K0703-001) | Qty: 2

#29. P/N: N510068999AA | Part name: Bearing | Remarks: MT1510ZZ NS7L | Qty: 2

#30. P/N: XVE25B5FTC | Part name: Bolt | Remarks: Hexagon socket head cap screw M2.5X5-12.9 SOB | Qty: 2
