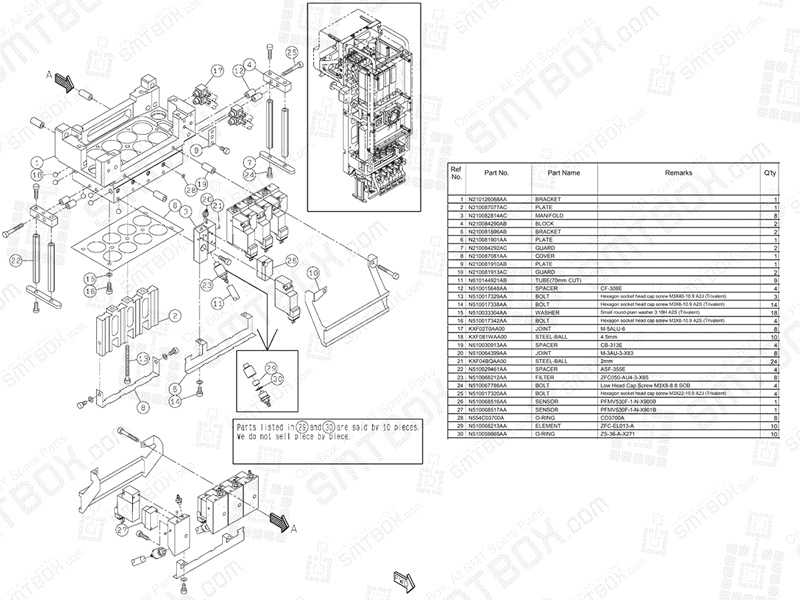

KN610157742AA-07-3 NPM 8 Nozzle Head N610157742AA

#1. P/N: N210126068AA | Part name: Bracket | Qty: 1

#2. P/N: N210087077AC | Part name: Plate | Qty: 1

#3. P/N: N210082814AC | Part name: Manifold | Qty: 8

#4. P/N: N210084290AB | Part name: Block | Qty: 2

#5. P/N: N210081896AB | Part name: Bracket | Qty: 2

#6. P/N: N210081901AA | Part name: Plate | Qty: 1

#7. P/N: N210084292AC | Part name: Guard | Qty: 2

#8. P/N: N210087081AA | Part name: Cover | Qty: 1

#9. P/N: N210081910AB | Part name: Plate | Qty: 1

#10. P/N: N210081913AC | Part name: Guard | Qty: 2

#11. P/N: N610144921AB | Part name: Tube | Remarks: (70mm CUT) | Qty: 9

#12. P/N: N510015648AA | Part name: Spacer | Remarks: CF-308E | Qty: 4

#13. P/N: N510017329AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X40-10.9 A2J (Trivalent) | Qty: 3

#14. P/N: N510017338AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X6-10.9 A2S (Trivalent) | Qty: 14

#15. P/N: N510033304AA | Part name: Washer | Remarks: Small round-plain washer 3 10H A2S (Trivalent) | Qty: 18

#16. P/N: N510017342AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X8-10.9 A2S (Trivalent) | Qty: 4

#17. P/N: KXF02T0AA00 | Part name: Joint | Remarks: M-5ALU-6 | Qty: 8

#18. P/N: KXF081WAA00 | Part name: Steel Ball | Remarks: 4.5mm | Qty: 10

#19. P/N: N510030913AA | Part name: Spacer | Remarks: CB-313E | Qty: 4

#20. P/N: N510064399AA | Part name: Joint | Remarks: M-3AU-3-X83 | Qty: 8

#21. P/N: KXF04BQAA00 | Part name: Steel Ball | Remarks: 2mm | Qty: 24

#22. P/N: N510029461AA | Part name: Spacer | Remarks: ASF-355E | Qty: 4

#23. P/N: N510068212AA | Part name: Filter | Remarks: ZFC050-AU4-3-X65 | Qty: 8

#24. P/N: N510067786AA | Part name: Bolt | Remarks: Low Head Cap Screw M3X8-8.8 SOB | Qty: 4

#25. P/N: N510017320AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X22-10.9 A2J (Trivalent) | Qty: 4

#26. P/N: N510068516AA | Part name: Sensor | Remarks: PFMV530F-1-N-X900B | Qty: 1

#27. P/N: N510068517AA | Part name: Sensor | Remarks: PFMV530F-1-N-X901B | Qty: 1

#28. P/N: N554C03700A | Part name: O-Ring | Remarks: CO3700A | Qty: 8

#29. P/N: N510068213AA | Part name: Element | Remarks: ZFC-EL013-A | Qty: 10

#30. P/N: N510059865AA | Part name: O-Ring | Remarks: ZS-36-A-X271 | Qty: 10
