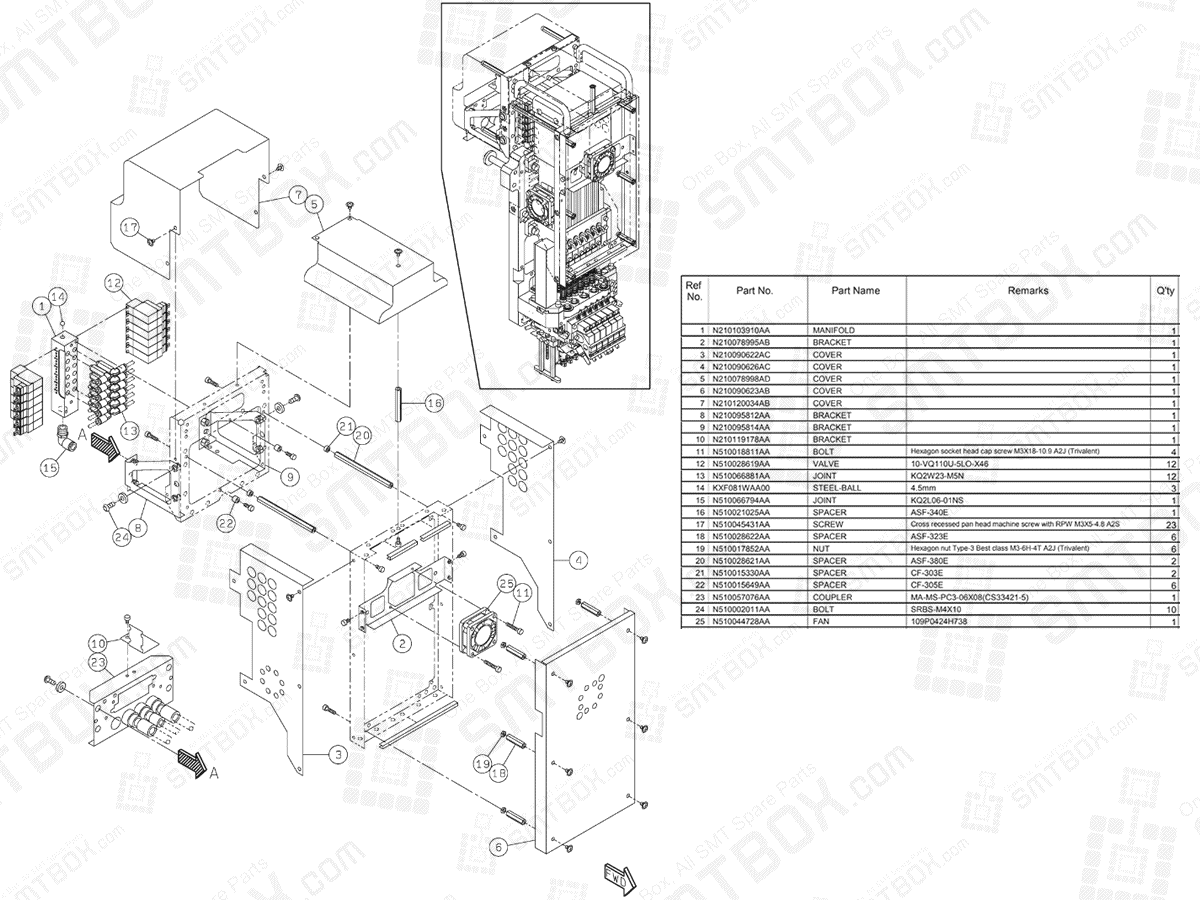

#1. P/N: N210103910AA | Part name: Manifold | Qty: 1
#2. P/N: N210078995AB | Part name: Bracket | Qty: 1
#3. P/N: N210090622AC | Part name: Cover | Qty: 1
#4. P/N: N210090626AC | Part name: Cover | Qty: 1
#5. P/N: N210078998AD | Part name: Cover | Qty: 1
#6. P/N: N210090623AB | Part name: Cover | Qty: 1
#7. P/N: N210120034AB | Part name: Cover | Qty: 1
#8. P/N: N210095812AA | Part name: Bracket | Qty: 1
#9. P/N: N210095814AA | Part name: Bracket | Qty: 1
#10. P/N: N210119178AA | Part name: Bracket | Qty: 1
#11. P/N: N510018811AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X18-10.9 A2J (Trivalent) | Qty: 4
#12. P/N: N510028619AA | Part name: Valve | Remarks: 10-VQ110U-5LO-X46 | Qty: 12
#13. P/N: N510066881AA | Part name: Joint | Remarks: KQ2W23-M5N | Qty: 12
#14. P/N: KXF081WAA00 | Part name: Steel Ball | Remarks: 4.5mm | Qty: 3
#15. P/N: N510066794AA | Part name: Joint | Remarks: KQ2L06-01NS | Qty: 1
#16. P/N: N510021025AA | Part name: Spacer | Remarks: ASF-340E | Qty: 1
#17. P/N: N510045431AA | Part name: Screw | Remarks: Cross recessed pan head machine screw with RPW M3X5-4.8 A2S 23
#18. P/N: N510028622AA | Part name: Spacer | Remarks: ASF-323E | Qty: 6
#19. P/N: N510017852AA | Part name: Nut | Remarks: Hexagon nut Type-3 Best class M3-6H-4T A2J (Trivalent) | Qty: 6
#20. P/N: N510028621AA | Part name: Spacer | Remarks: ASF-380E | Qty: 2
#21. P/N: N510015330AA | Part name: Spacer | Remarks: CF-303E | Qty: 2
#22. P/N: N510015649AA | Part name: Spacer | Remarks: CF-305E | Qty: 6
#23. P/N: N510057076AA | Part name: Coupler | Remarks: MA-MS-PC3-06X08(CS33421-5) | Qty: 1
#24. P/N: N510002011AA | Part name: Bolt | Remarks: SRBS-M4X10 10
#25. P/N: N510044728AA | Part name: Fan | Remarks: 109P0424H738 | Qty: 1
