Part List of SME 8mm SM DECAN IT / NONIT SMT Feeder

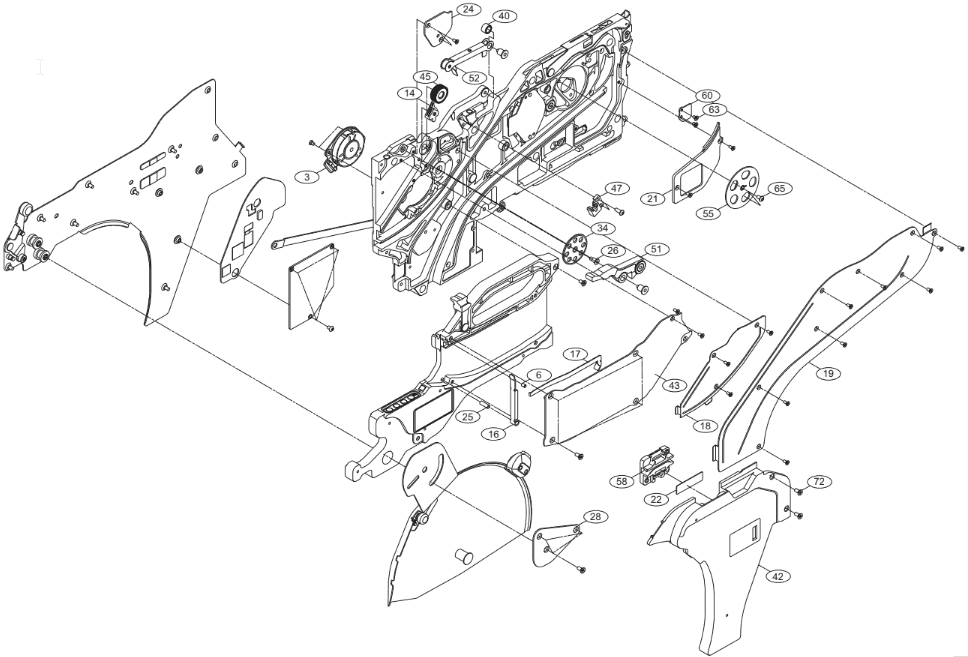

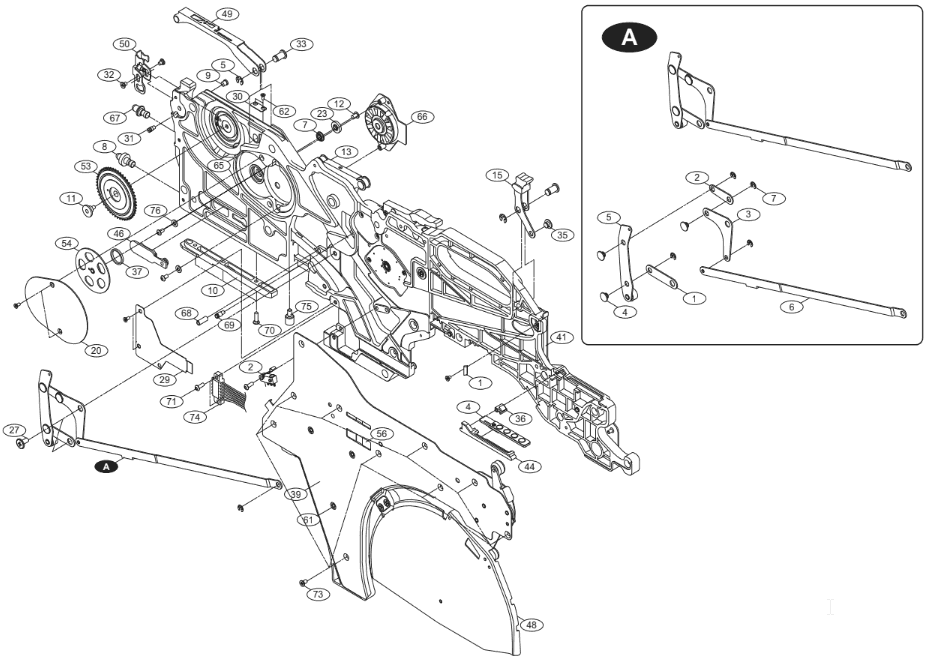

Mechanical Part List of SME 8mm SMT Feeder Used on Hanwha Samsung Techwin SM310 SM320 SM321(F) SM411(F) SM431 SM451 SM471 SM481 SM482 DECAN S2 L2 F2 Part 1

SME Tape Feeder with 7 Inches Reel Holoder

SM NONIT 8mm 4P TAPE FEEDER P/N: SBFB32110K

SM NONIT 8mm 2P TAPE FEEDER P/N: SBFB32100K

SM IT 8mm 4P TAPE FEEDER P/N: SBFB32010K

SM IT 8mm 2P TAPE FEEDER P/N: SBFB32000K

The Above SMT Component Feeder Used on Hanwha Samsung Techwin SM310 SM320 SM321(F) SM411(F) SM431 SM451 SM471 SM481 SM482 DECAN S2 L2 F2

#1 Part Name: BLADE

#2 P/N: J90611844A | Part Name: CLAMP SWITCH HARNESS ASSY M08

#3 P/N: J31021017A | Part Name: DRAIN MOTOR

#4 P/N: J91741353A | Part Name: UI ASSY

#5 P/N: J1301149 E | Part Name: RING (4) | Qty: 2

#6 P/N: J64091017A | Part Name: MAGNET

#7 P/N: J66011038A | Part Name: FLANGED BEARING

#8 P/N: J70650948B | Part Name: LOCATION FLANGE

#9 P/N: J70650967C | Part Name: LOCKING LIMIT

#10 P/N: J70650978D | Part Name: INSTALL GUIDE

#11 P/N: J70653541A | Part Name: SPROCKET SHAFT

#12 P/N: J70653544A | Part Name: GEAR SHAFT SCREW

#13 P/N: J70653552A | Part Name: D-TENSIONER HINGE | Qty: 2

#14 P/N: J70653565A | Part Name: DRAIN GEAR FORK

#15 P/N: J70653694A | Part Name: CLAMP LEVER M 08

#16 P/N: J70653695A | Part Name: D-BOX DOOR M 08

#17 P/N: J70653696A | Part Name: D-BOX LEVER M 08

#18 P/N: J70653697A | Part Name: D-MOTOR COVER M 08

#19 P/N: J70653698A | Part Name: RIGHT COVER M 08

#20 P/N: J70653699A | Part Name: MOTOR COVER M 08

#21 P/N: J70653700A | Part Name: DUMP BOX COVER M 08

#22 P/N: J70653701A | Part Name: SLICING OUTER COVER M 08

#23 P/N: J70653745A | Part Name: SECOND PINION 08

#24 P/N: J70653746A | Part Name: DRAIN COVER 08

#25 P/N: J70653748A | Part Name: D-DOOR PIN M 08

#26 P/N: J70653933A | Part Name: D-STAGE GEAR SHAFT

#27 P/N: J70653935A | Part Name: T LINK1 HINGE | Qty: 2

#28 P/N: J7065980A | Part Name: HANGER SHAFT GUIDE

#29 P/N: J7065981A | Part Name: PROBER COVER

#30 P/N: J7066026A | Part Name: T-COVER

#31 P/N: J7066033B | Part Name: LOCKER SPG PIN2

#32 P/N: J70661457A | Part Name: LOCKER HINGE M 08 | Qty: 2

#33 P/N: J70661458A | Part Name: TAPE GUDIE SHAFT1 M 08 | Qty: 2

#34 P/N: J70661460A | Part Name: D-STAGE GEAR1

#35 P/N: J70661463A | Part Name: CLAMP LEVER SHAFT M 08

#36 P/N: J71651465A | Part Name: MAIN LED LIGHT

#37 P/N: J71651839A | Part Name: METAL BEARING

#38 P/N: J71651887A | Part Name: MAIN BODY M 08

#39 P/N: J71651939A | Part Name: HEAT SINK M 08

#40 P/N: J72651198A | Part Name: D-TENSIONER ROLLER

#41 P/N: J72651323A | Part Name: HANDLE M 08

#42 P/N: J72651326A | Part Name: PCB COVER M 08

#43 P/N: J72651327A | Part Name: D-BOX COVER M 08

#44 P/N: J72651328A | Part Name: UI BLOCK M 08

#45 P/N: J72651370A | Part Name: DRAIN GEAR-1

#46 P/N: J72651377A | Part Name: DUMP BOX DOOR

#47 P/N: J90611845A | Part Name: DRAIN SENSOR HARNESS ASSY M08

#48 P/N: J90650183C | Part Name: HANGER ASSY

#49 P/N: J90652096A | Part Name: TAPE GUIDE M 08 ASSY

#50 P/N: J90652097A | Part Name: LOCKER M 08 ASSY

#51 P/N: J90652098A | Part Name: DRAIN HANDLE M 08 ASSY

#52 P/N: J90652099A | Part Name: D-TENSIONER M 08 ASSY

#53 P/N: J90652100A | Part Name: SPROCKET M 08 ASSY

#54 P/N: J90652101A | Part Name: MOTOR GEAR SHAFT1 M 08 ASSY

#55 P/N: J90652102A | Part Name: SECOND GEAR M 08 ASSY

#56 P/N: J90652105A | Part Name: REEL PLATE M 08 ASSY

#57 P/N: J90652106A | Part Name: TOGGLE M08 ASSY

#58 P/N: J90652110A | Part Name: SPLICING M 08 ASSY

#59 P/N: J90652111A | Part Name: D-GEARTRAIN M 08 ASSY

#60 P/N: J91741352A | Part Name: INDEX SENSOR ASSY

#61 P/N: J91741316A | Part Name: SMV FEEDER MAIN BOARD

#62 P/N: J7066047A | Part Name: FLAT HEAD CAP SCREW H4.4 24

#63 P/N: J70653926A | Part Name: PAN CAP SCREW M25L35 | Qty: 5

#64 P/N: J6010300438 | Part Name: SOCKET SET SCREW(M3X0.5 L4) | Qty: 2

#65 P/N: J6005300538 | Part Name: BUTTON HEAD SOCKET SCREW | Qty: | Qty: 4

#66 P/N: J90652109A | Part Name: INDEX MOTOR ASSY

#67 P/N: J70652174A | Part Name: X ECCENTRIC PIN

#68 P/N: J70650994B | Part Name: TOGGLE STOPPER 1

#69 P/N: J70650995B | Part Name: TOGGLE SPG PIN

#70 P/N: J6004301250 | Part Name: FLAT HEAD CAP SCREW | Qty: 3

#71 P/N: J6005300838 | Part Name: BUTTON HEAD SOCKET SCREW | Qty: 5

#72 P/N: J6006300650 | Part Name: FLAT HEAD CAP SCREW | Qty: 8

#73 P/N: J70653940A | Part Name: FLAT TAPPING SCREW 3X7-2 | Qty: 12

#74 P/N: J90611846A | Part Name: MAIN CONNECTOR HARNESS ASSY M08

#75 P/N: J7065992B | Part Name: BOTTOM LOC PIN

#76 P/N: J1301154 | Part Name: FLAT WASHER (M3L) | Qty: 2

#77 P/N: J6004300450 | Part Name: BUTTON HEAD CAP SCREW | Qty: 3

#A P/N: J90652106A | Part Name: TOGGLE M 08 ASSY

#A-1 P/N: J1301023 | Part Name: T LINK1 M 08

#A-2 P/N: J90652108A | Part Name: T LINK3 M 08

#A-3 P/N: J90652107A | Part Name: T LINK4 M 08

#A-4 P/N: J70661463A | Part Name: CLAMP LEVER SHAFT M 08 | Qty: 3

#A-5 P/N: J70653944A | Part Name: T LINK2 M 08 ASSY

#A-6 P/N: J70653943A | Part Name: T LINK5 M 08 ASSY

#A-7 P/N: J70653941A | Part Name: E RING(3) | Qty: 4
