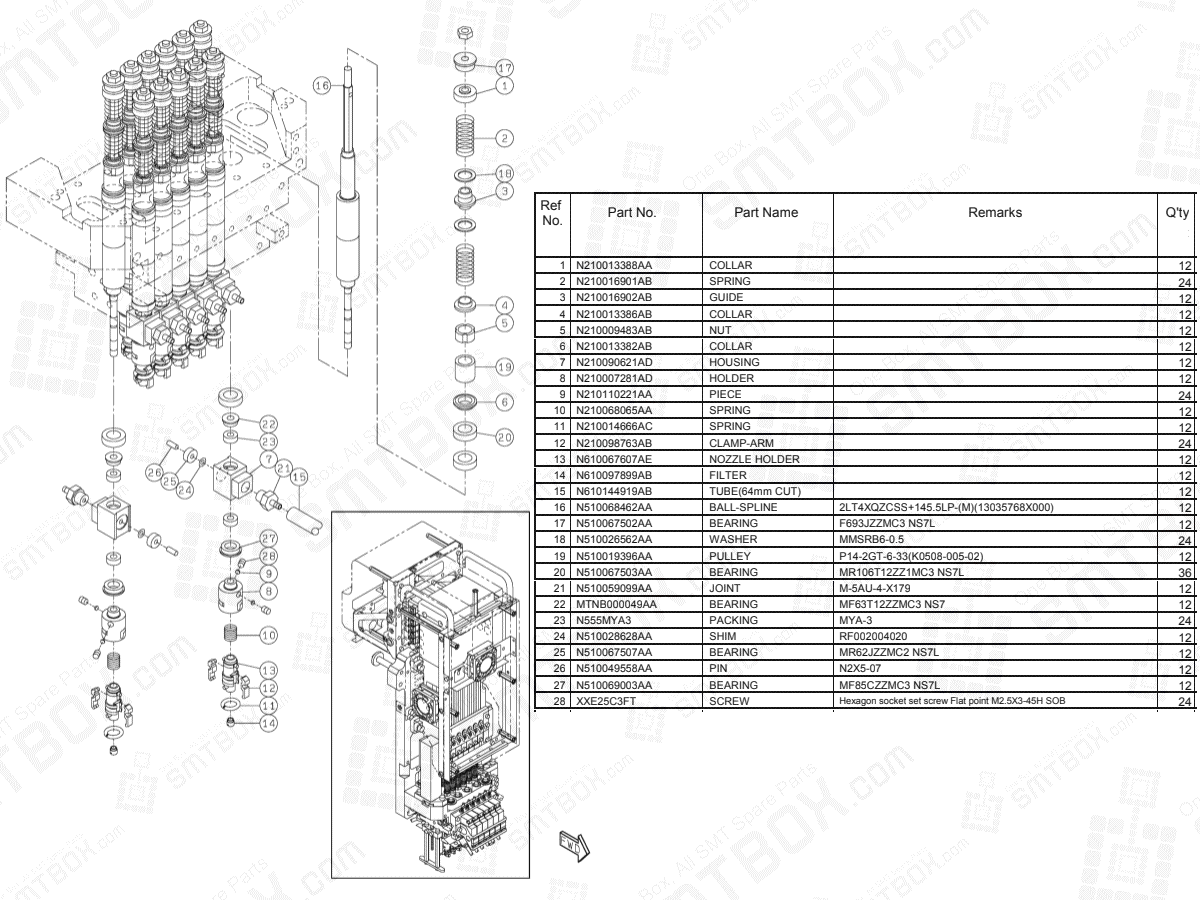

KN610157741AA-08-3 NPM 12 Nozzle Head N610157741AA

#1. P/N: N210013388AA | Part name: Collar | Qty: 12

#2. P/N: N210016901AB | Part name: Spring | Qty: 24

#3. P/N: N210016902AB | Part name: Guide | Qty: 12

#4. P/N: N210013386AB | Part name: Collar | Qty: 12

#5. P/N: N210009483AB | Part name: Nut | Qty: 12

#6. P/N: N210013382AB | Part name: Collar | Qty: 12

#7. P/N: N210090621AD | Part name: Housing | Qty: 12

#8. P/N: N210007281AD | Part name: Holder | Qty: 12

#9. P/N: N210110221AA | Part name: Piece | Qty: 24

#10. P/N: N210068065AA | Part name: Spring | Qty: 12

#11. P/N: N210014666AC | Part name: Spring | Qty: 12

#12. P/N: N210098763AB | Part name: Clamp Arm | Qty: 24

#13. P/N: N610067607AE | Part name: Nozzle Holder | Qty: 12

#14. P/N: N610097899AB | Part name: Filter | Qty: 12

#15. P/N: N610144919AB | Part name: Tube(64Mm Cut) | Qty: 12

#16. P/N: N510068462AA | Part name: Ball-Spline | Remarks: 2LT4XQZCSS+145.5LP-(M)(13035768X000) | Qty: 12

#17. P/N: N510067502AA | Part name: Bearing | Remarks: F693JZZMC3 NS7L | Qty: 12

#18. P/N: N510026562AA | Part name: Washer | Remarks: MMSRB6-0.5 | Qty: 24

#19. P/N: N510019396AA | Part name: Pulley | Remarks: P14-2GT-6-33(K0508-005-02) | Qty: 12

#20. P/N: N510067503AA | Part name: Bearing | Remarks: MR106T12ZZ1MC3 NS7L 36

#21. P/N: N510059099AA | Part name: Joint | Remarks: M-5AU-4-X179 | Qty: 12

#22. P/N: MTNB000049AA | Part name: Bearing | Remarks: MF63T12ZZMC3 NS7 | Qty: 12

#23. P/N: N555MYA3 | Part name: Packing | Remarks: MYA-3 | Qty: 24

#24. P/N: N510028628AA | Part name: Shim | Remarks: RF002004020 | Qty: 12

#25. P/N: N510067507AA | Part name: Bearing | Remarks: MR62JZZMC2 NS7L | Qty: 12

#26. P/N: N510049558AA | Part name: Pin | Remarks: N2X5-07 | Qty: 12

#27. P/N: N510069003AA | Part name: Bearing | Remarks: MF85CZZMC3 NS7L | Qty: 12

#28. P/N: XXE25C3FT | Part name: Screw | Remarks: Hexagon socket set screw Flat point M2.5X3-45H SOB | Qty: 24
