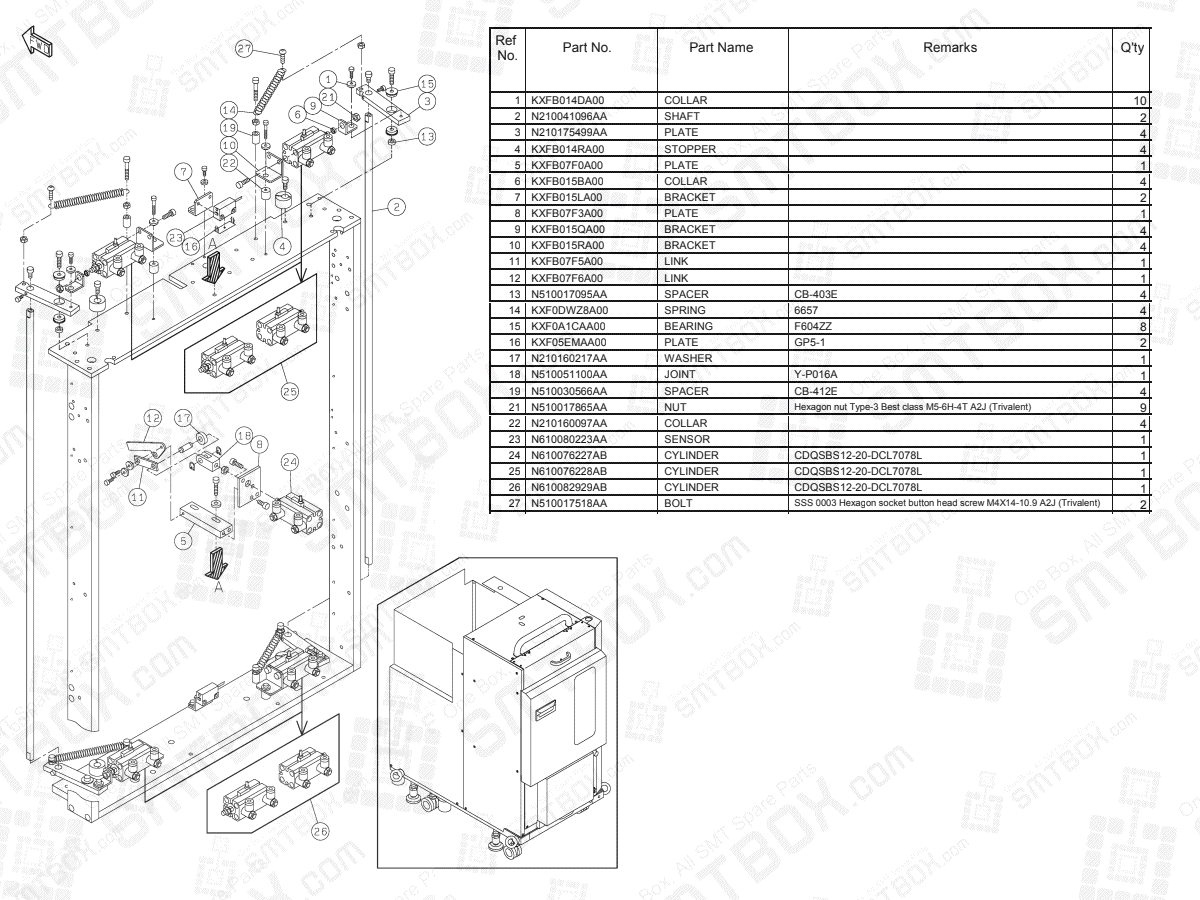

KN610074920AA-31-6 on Panasonic NPM Tray Feeder Main Body N610074920AA

KN610074920AA 31 6 On Panasonic Npm Tray Feeder Main Body N610074920AA

#1. P/N: KXFB014DA00 | Part name: Collar | Qty: 10

#2. P/N: N210041096AA | Part name: Shaft | Qty: 2

#3. P/N: N210175499AA | Part name: Plate | Qty: 4

#4. P/N: KXFB014RA00 | Part name: Stopper | Qty: 4

#5. P/N: KXFB07F0A00 | Part name: Plate | Qty: 1

#6. P/N: KXFB015BA00 | Part name: Collar | Qty: 4

#7. P/N: KXFB015LA00 | Part name: Bracket | Qty: 2

#8. P/N: KXFB07F3A00 | Part name: Plate | Qty: 1

#9. P/N: KXFB015QA00 | Part name: Bracket | Qty: 4

#10. P/N: KXFB015RA00 | Part name: Bracket | Qty: 4

#11. P/N: KXFB07F5A00 | Part name: Link | Qty: 1

#12. P/N: KXFB07F6A00 | Part name: Link | Qty: 1

#13. P/N: N510017095AA | Part name: Spacer | Remarks: CB-403E | Qty: 4

#14. P/N: KXF0DWZ8A00 | Part name: Spring | Remarks: 6657 | Qty: 4

#15. P/N: KXF0A1CAA00 | Part name: Bearing | Remarks: F604ZZ 8

#16. P/N: KXF05EMAA00 | Part name: Plate | Remarks: GP5-1 | Qty: 2

#17. P/N: N210160217AA | Part name: Washer | Qty: 1

#18. P/N: N510051100AA | Part name: Joint | Remarks: Y-P016A | Qty: 1

#19. P/N: N510030566AA | Part name: Spacer | Remarks: CB-412E | Qty: 4

#21. P/N: N510017865AA | Part name: Nut | Remarks: Hexagon nut Type-3 Best class M5-6H-4T A2J (Trivalent) | Qty: 9

#22. P/N: N210160097AA | Part name: Collar | Qty: 4

#23. P/N: N610080223AA | Part name: Sensor | Qty: 1

#24. P/N: N610076227AB | Part name: Cylinder | Remarks: CDQSBS12-20-DCL7078L | Qty: 1

#25. P/N: N610076228AB | Part name: Cylinder | Remarks: CDQSBS12-20-DCL7078L | Qty: 1

#26. P/N: N610082929AB | Part name: Cylinder | Remarks: CDQSBS12-20-DCL7078L | Qty: 1

#27. P/N: N510017518AA | Part name: Bolt | Remarks: SSS 0003 Hexagon socket button head screw M4X14-10.9 A2J (Trivalent) | Qty: 2
