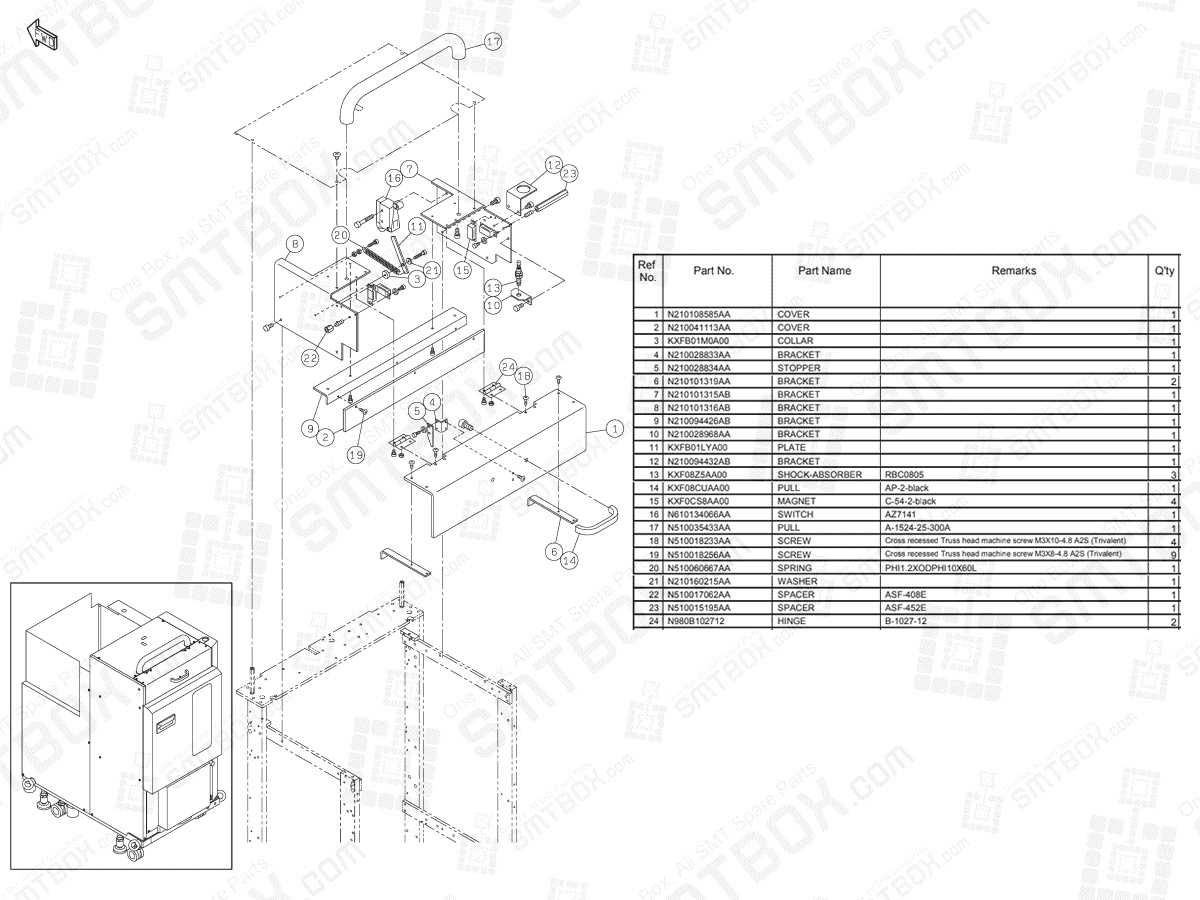

NPM Tray Feeder Main Body KN610074920AA-31-3

#1. P/N: N210108585AA | Part name: Cover | Qty: 1

#2. P/N: N210041113AA | Part name: Cover | Qty: 1

#3. P/N: KXFB01M0A00 | Part name: Collar | Qty: 1

#4. P/N: N210028833AA | Part name: Bracket | Qty: 1

#5. P/N: N210028834AA | Part name: Stopper | Qty: 1

#6. P/N: N210101319AA | Part name: Bracket | Qty: 2

#7. P/N: N210101315AB | Part name: Bracket | Qty: 1

#8. P/N: N210101316AB | Part name: Bracket | Qty: 1

#9. P/N: N210094426AB | Part name: Bracket | Qty: 1

#10. P/N: N210028968AA | Part name: Bracket | Qty: 1

#11. P/N: KXFB01LYA00 | Part name: Plate | Qty: 1

#12. P/N: N210094432AB | Part name: Bracket | Qty: 1

#13. P/N: KXF08Z5AA00 | Part name: Shock Absorber | Remarks: RBC0805 | Qty: 3

#14. P/N: KXF08CUAA00 | Part name: Pull | Remarks: AP-2-black | Qty: 1

#15. P/N: KXF0CS8AA00 | Part name: Magnet | Remarks: C-54-2-black | Qty: 4

#16. P/N: N610134066AA | Part name: Switch | Remarks: AZ7141 | Qty: 1

#17. P/N: N510035433AA | Part name: Pull | Remarks: A-1524-25-300A | Qty: 1

#18. P/N: N510018233AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M3X10-4.8 A2S (Trivalent) | Qty: 4

#19. P/N: N510018256AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M3X8-4.8 A2S (Trivalent) | Qty: 9

#20. P/N: N510060667AA | Part name: Spring | Remarks: PHI1.2XODPHI10X60L | Qty: 1

#21. P/N: N210160215AA | Part name: Washer | Qty: 1

#22. P/N: N510017062AA | Part name: Spacer | Remarks: ASF-408E | Qty: 1

#23. P/N: N510015195AA | Part name: Spacer | Remarks: ASF-452E | Qty: 1

#24. P/N: N980B102712 | Part name: Hinge | Remarks: B-1027-12 | Qty: 2
