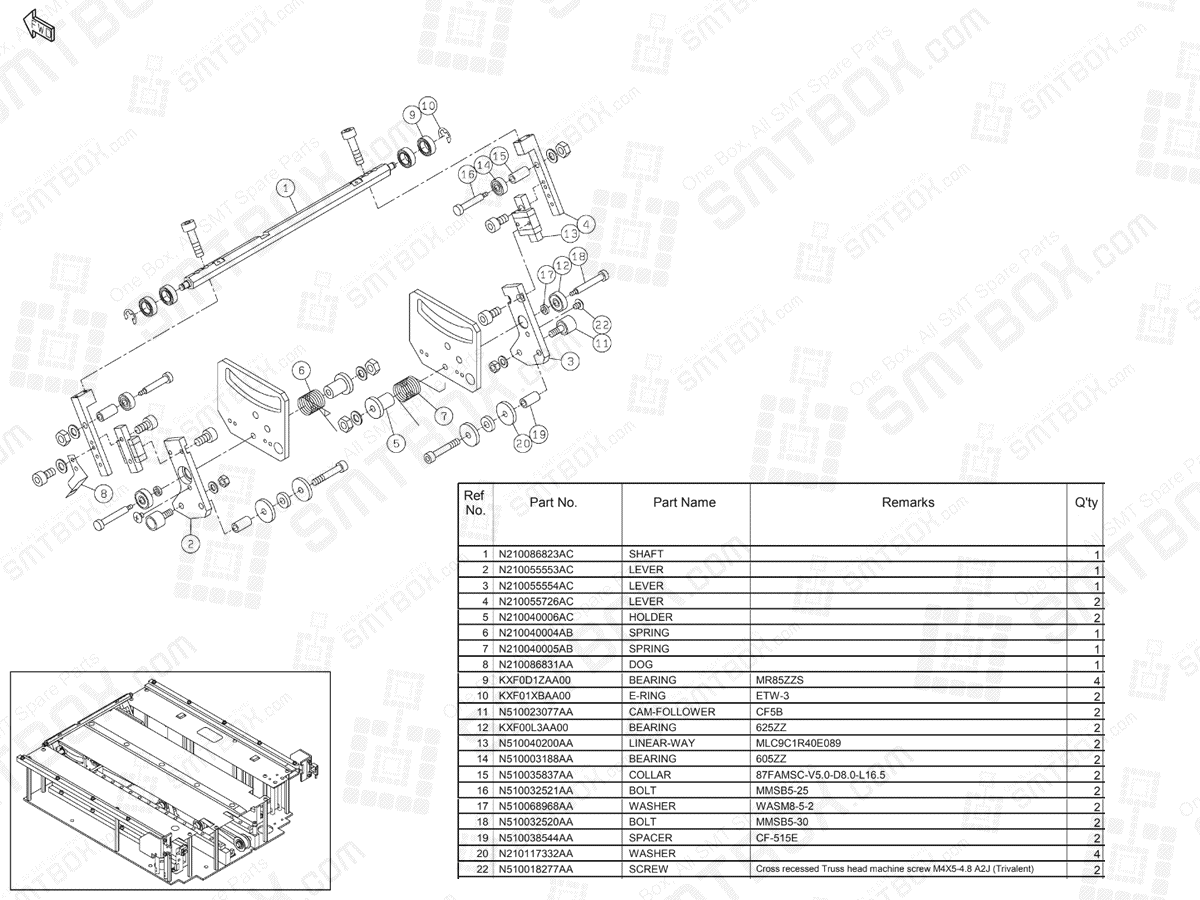

KN610069934AA-16-4 of Panasonic NPM Tray Feeder Drawing-out Section N610069934AA

KN610069934AA-16-4 of Panasonic NPM Tray Feeder Drawing-out Section N610069934AA

#1. P/N: N210086823AC | Part name: Shaft | Qty: 1

#2. P/N: N210055553AC | Part name: Lever | Qty: 1

#3. P/N: N210055554AC | Part name: Lever | Qty: 1

#4. P/N: N210055726AC | Part name: Lever | Qty: 2

#5. P/N: N210040006AC | Part name: Holder | Qty: 2

#6. P/N: N210040004AB | Part name: Spring | Qty: 1

#7. P/N: N210040005AB | Part name: Spring | Qty: 1

#8. P/N: N210086831AA | Part name: Dog | Qty: 1

#9. P/N: KXF0D1ZAA00 | Part name: Bearing | Remarks: MR85ZZS | Qty: 4

#10. P/N: KXF01XBAA00 | Part name: E-Ring | Remarks: ETW-3 | Qty: 2

#11. P/N: N510023077AA | Part name: Cam Follower | Remarks: CF5B | Qty: 2

#12. P/N: KXF00L3AA00 | Part name: Bearing | Remarks: 625ZZ | Qty: 2

#13. P/N: N510040200AA | Part name: Linear Way | Remarks: MLC9C1R40E089 | Qty: 2

#14. P/N: N510003188AA | Part name: Bearing | Remarks: 605ZZ | Qty: 2

#15. P/N: N510035837AA | Part name: Collar | Remarks: 87FAMSC-V5.0-D8.0-L16.5 | Qty: 2

#16. P/N: N510032521AA | Part name: Bolt | Remarks: MMSB5-25 | Qty: 2

#17. P/N: N510068968AA | Part name: Washer | Remarks: WASM8-5-2 | Qty: 2

#18. P/N: N510032520AA | Part name: Bolt | Remarks: MMSB5-30 | Qty: 2

#19. P/N: N510038544AA | Part name: Spacer | Remarks: CF-515E | Qty: 2

#20. P/N: N210117332AA | Part name: Washer | Qty: 4

#22. P/N: N510018277AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X5-4.8 A2J (Trivalent) | Qty: 2
