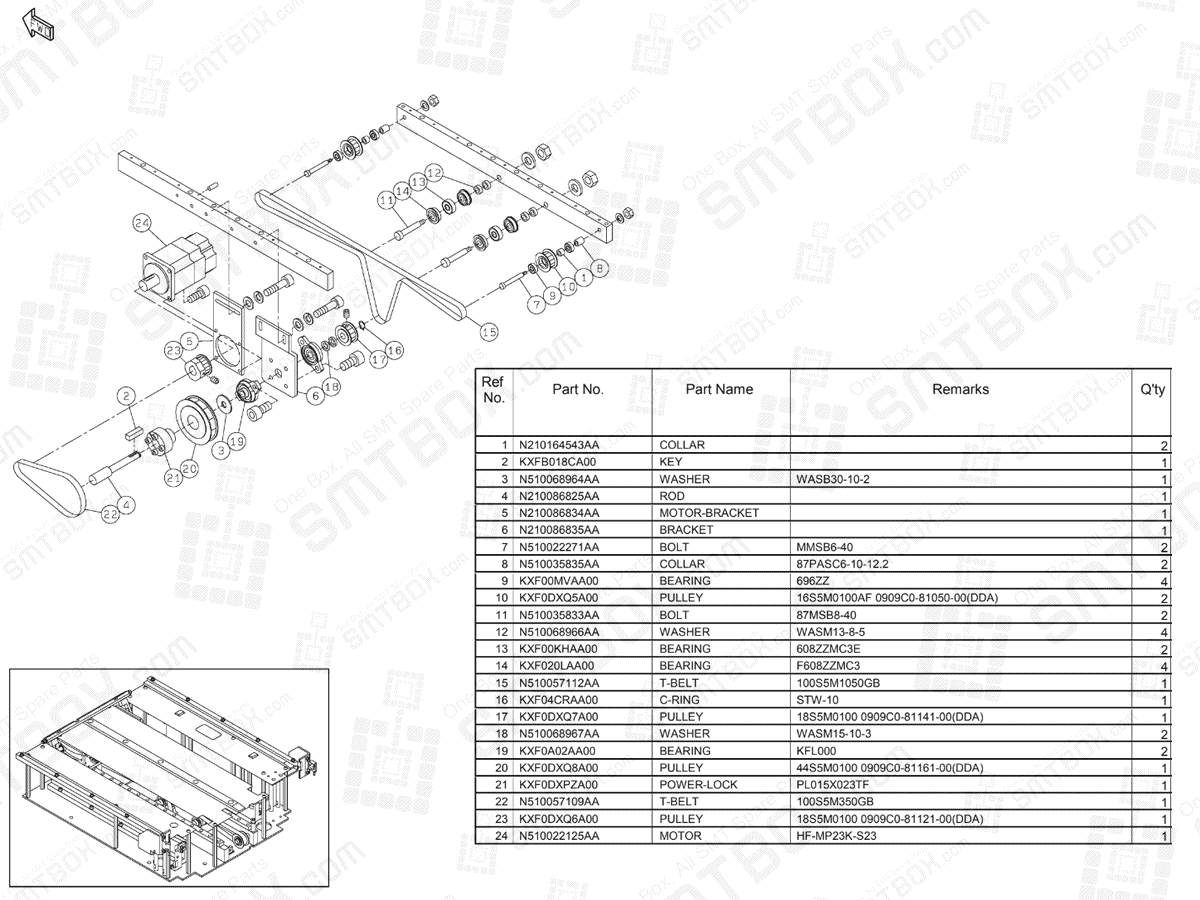

#1. P/N: N210164543AA | Part name: Collar | Qty: 2
#2. P/N: KXFB018CA00 | Part name: Key | Qty: 1
#3. P/N: N510068964AA | Part name: Washer | Remarks: WASB30-10-2 | Qty: 1
#4. P/N: N210086825AA | Part name: Rod | Qty: 1
#5. P/N: N210086834AA | Part name: Motor Bracket | Qty: 1
#6. P/N: N210086835AA | Part name: Bracket | Qty: 1
#7. P/N: N510022271AA | Part name: Bolt | Remarks: MMSB6-40 | Qty: 2
#8. P/N: N510035835AA | Part name: Collar | Remarks: 87PASC6-10-12.2 | Qty: 2
#9. P/N: KXF00MVAA00 | Part name: Bearing | Remarks: 696ZZ | Qty: 4
#10. P/N: KXF0DXQ5A00 | Part name: Pulley | Remarks: 16S5M0100AF 0909C0-81050-00(DDA) | Qty: 2
#11. P/N: N510035833AA | Part name: Bolt | Remarks: 87MSB8-40 | Qty: 2
#12. P/N: N510068966AA | Part name: Washer | Remarks: WASM13-8-5 | Qty: 4
#13. P/N: KXF00KHAA00 | Part name: Bearing | Remarks: 608ZZMC3E | Qty: 2
#14. P/N: KXF020LAA00 | Part name: Bearing | Remarks: F608ZZMC3 | Qty: 4
#15. P/N: N510057112AA | Part name: T-Belt | Remarks: 100S5M1050GB | Qty: 1
#16. P/N: KXF04CRAA00 | Part name: C-Ring | Remarks: STW-10 | Qty: 1
#17. P/N: KXF0DXQ7A00 | Part name: Pulley | Remarks: 18S5M0100 0909C0-81141-00(DDA) | Qty: 1
#18. P/N: N510068967AA | Part name: Washer | Remarks: WASM15-10-3 | Qty: 2
#19. P/N: KXF0A02AA00 | Part name: Bearing | Remarks: KFL000 | Qty: 2
#20. P/N: KXF0DXQ8A00 | Part name: Pulley | Remarks: 44S5M0100 0909C0-81161-00(DDA) | Qty: 1
#21. P/N: KXF0DXPZA00 | Part name: Power Lock | Remarks: PL015X023TF | Qty: 1
#22. P/N: N510057109AA | Part name: T-Belt | Remarks: 100S5M350GB | Qty: 1
#23. P/N: KXF0DXQ6A00 | Part name: Pulley | Remarks: 18S5M0100 0909C0-81121-00(DDA) | Qty: 1
#24. P/N: N510022125AA | Part name: Motor | Remarks: HF-MP23K-S23 | Qty: 1
