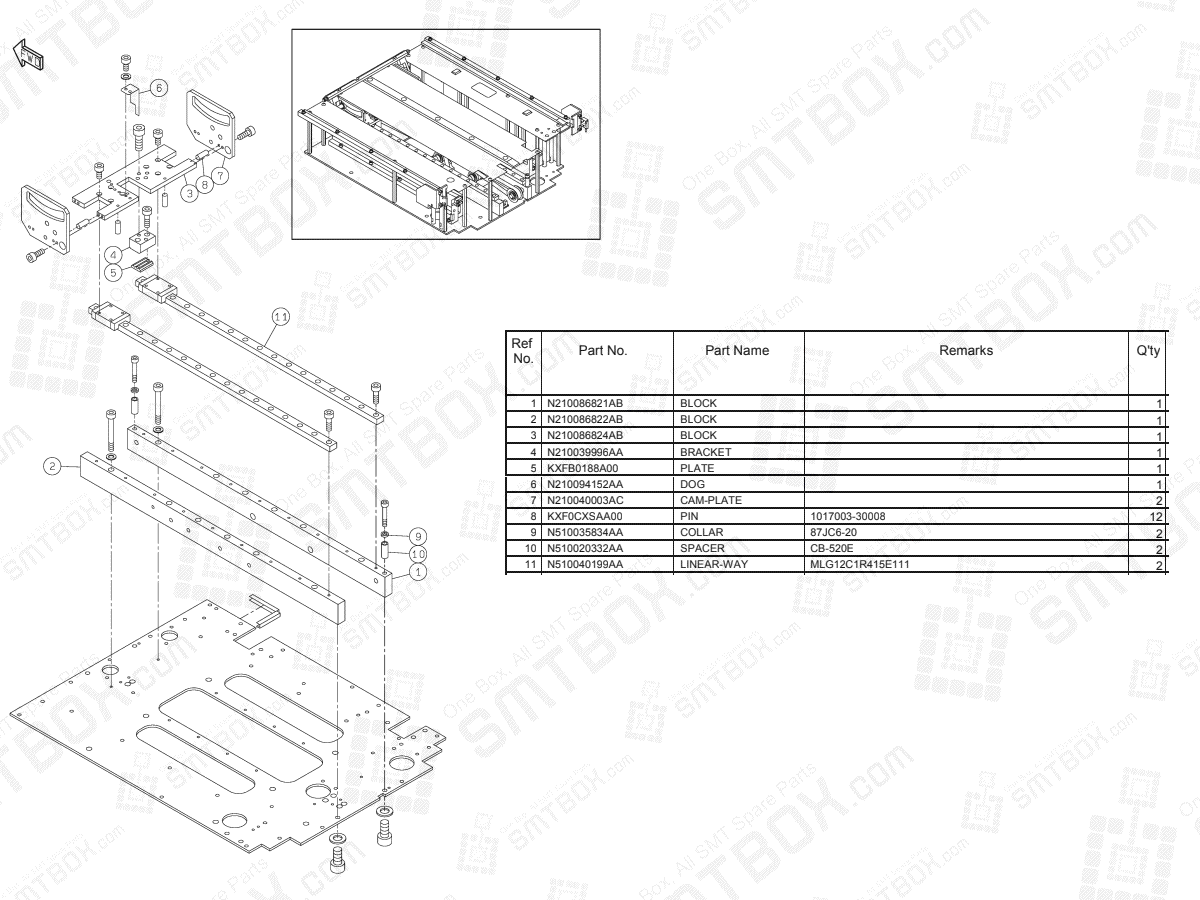

KN610069934AA-16-2 of Panasonic NPM Tray Feeder Drawing-out Section N610069934AA

#1. P/N: N210086821AB | Part name: Block | Qty: 1

#2. P/N: N210086822AB | Part name: Block | Qty: 1

#3. P/N: N210086824AB | Part name: Block | Qty: 1

#4. P/N: N210039996AA | Part name: Bracket | Qty: 1

#5. P/N: KXFB0188A00 | Part name: Plate | Qty: 1

#6. P/N: N210094152AA | Part name: Dog | Qty: 1

#7. P/N: N210040003AC | Part name: Cam Plate | Qty: 2

#8. P/N: KXF0CXSAA00 | Part name: Pin | Remarks: 1017003-30008 | Qty: 12

#9. P/N: N510035834AA | Part name: Collar | Remarks: 87JC6-20 | Qty: 2

#10. P/N: N510020332AA | Part name: Spacer | Remarks: CB-520E | Qty: 2

#11. P/N: N510040199AA | Part name: Linear Way | Remarks: MLG12C1R415E111 | Qty: 2
