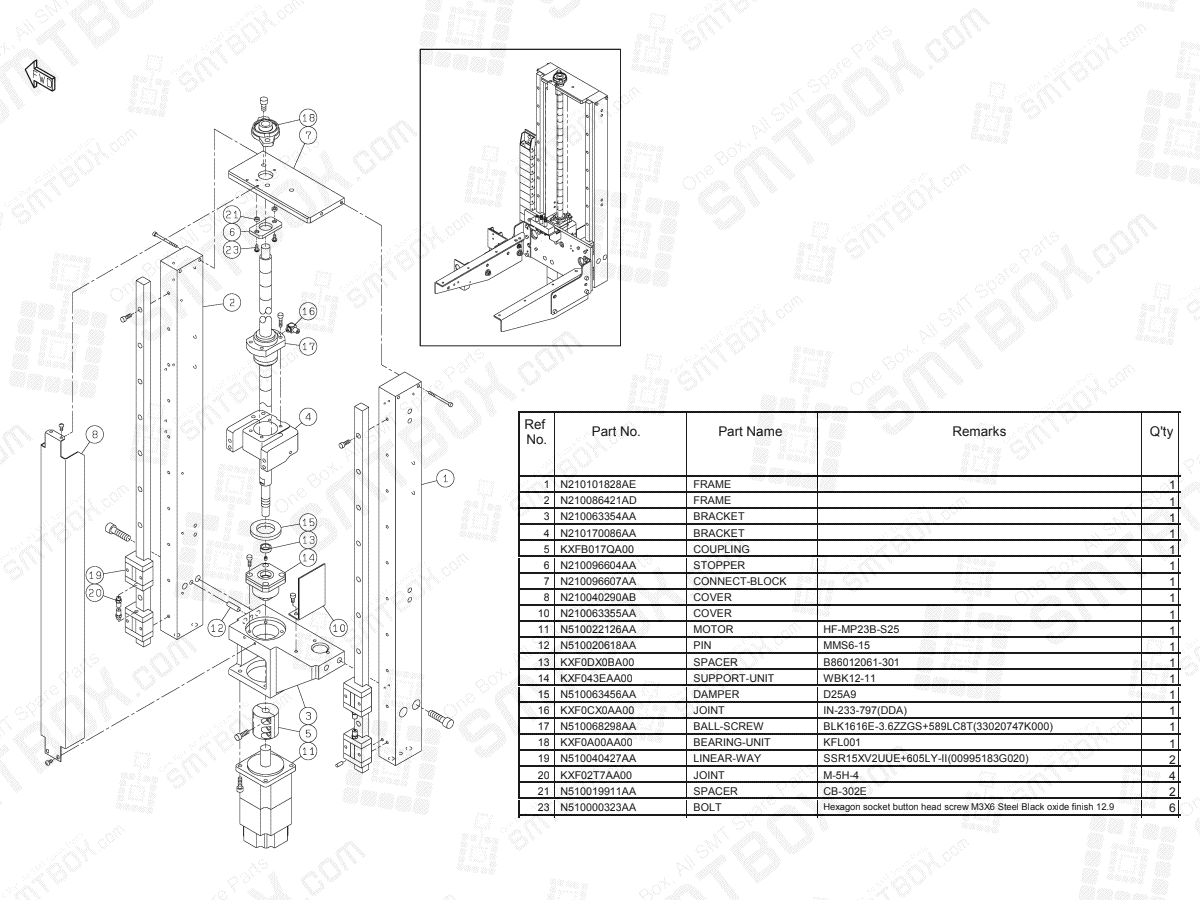

#1. P/N: N210101828AE | Part name: Frame | Qty: 1
#2. P/N: N210086421AD | Part name: Frame | Qty: 1
#3. P/N: N210063354AA | Part name: Bracket | Qty: 1
#4. P/N: N210170086AA | Part name: Bracket | Qty: 1
#5. P/N: KXFB017QA00 | Part name: Coupling | Qty: 1
#6. P/N: N210096604AA | Part name: Stopper | Qty: 1
#7. P/N: N210096607AA | Part name: Connect Block | Qty: 1
#8. P/N: N210040290AB | Part name: Cover | Qty: 1
#10. P/N: N210063355AA | Part name: Cover | Qty: 1
#11. P/N: N510022126AA | Part name: Motor | Remarks: HF-MP23B-S25 | Qty: 1
#12. P/N: N510020618AA | Part name: Pin | Remarks: MMS6-15 | Qty: 1
#13. P/N: KXF0DX0BA00 | Part name: Spacer | Remarks: B86012061-301 | Qty: 1
#14. P/N: KXF043EAA00 | Part name: Support Unit | Remarks: WBK12-11 | Qty: 1
#15. P/N: N510063456AA | Part name: Damper | Remarks: D25A9 | Qty: 1
#16. P/N: KXF0CX0AA00 | Part name: Joint | Remarks: IN-233-797(DDA) | Qty: 1
#17. P/N: N510068298AA | Part name: Ball Screw | Remarks: BLK1616E-3.6ZZGS+589LC8T(33020747K000) | Qty: 1
#18. P/N: KXF0A00AA00 | Part name: Bearing Unit | Remarks: KFL001 | Qty: 1
#19. P/N: N510040427AA | Part name: Linear Way | Remarks:SSR15XV2UUE+605LY-II(00995183G020) | Qty: 2
#20. P/N: KXF02T7AA00 | Part name: Joint | Remarks:M-5H-4 | Qty: 4
#21. P/N: N510019911AA | Part name: Spacer | Remarks: CB-302E | Qty: 2
#23. P/N: N510000323AA | Part name: Bolt | Remarks:Hexagon socket button head screw M3X6 Steel Black oxide finish 12.9 | Qty: 6
