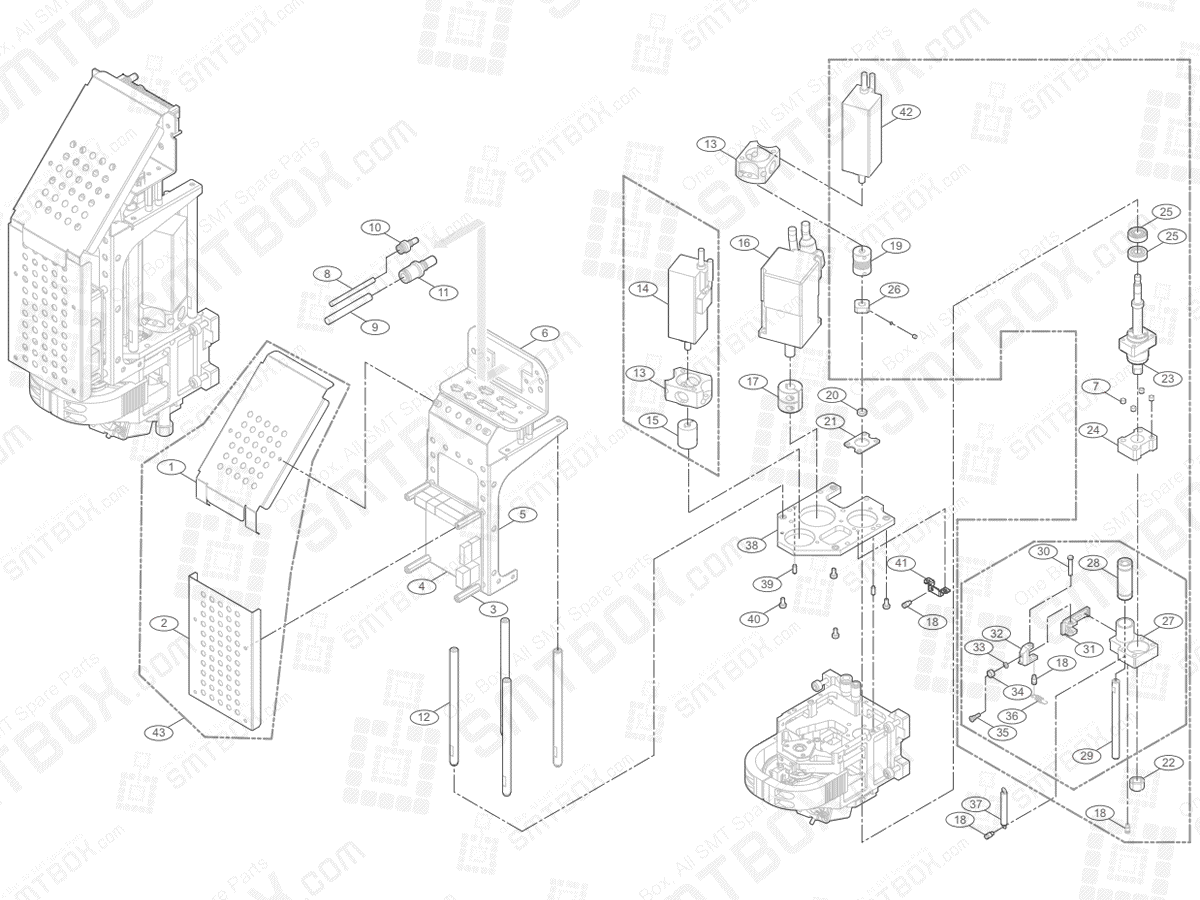

HSH(2/4) on Hanwha (Samsung Techwin) Excellent Modular EXCEN PRO (D) (M) (L)

#1. P/N: FC39-000858B | Part name: Frame Main Frame B | Qty: 1 | Remarks: FC39-000858A

#2. P/N: HP06-900016 | Part name: Fitting [Kq2S04 M5/Poc4 M5M] | Qty: 1

#3. P/N: HP06-900223 | Part name: Fitting Kjs06 M5 | Qty: 1

#4. P/N: MC11-000491A | Part name: Gear R Gear A | Qty: 1

#4. P/N: MC11-004031A | Part name: Gear R Gear A Carb Carburazing | Qty: 1 | Remarks: EXCEN PRO(D)

#5. P/N: MC03-000017 | Part name: Bearing Ball Bearing F696Zz1 F696Zz1 | Qty: 1

#6. P/N: EP02-000896A | Part name: Harness Vacuum Sensor Cable Assy | Qty: 1 | Remarks: J32101002(SENSOR)

#7. P/N: FC18-903190 | Part name: Profile Mount Dia4.0 | Qty: 2

#8. P/N: FC18-000538A | Part name: Screw Etc Gutb5 Hex Hex M5 19 Steel | Qty: 4

#9. P/N: HP07-000165 | Part name: Packing Y Packing Myn 11 Sakagami | Qty: 1

#10. P/N: FC15-003013A | Part name: Cover R Gear Cover Hs A | Qty: 1 | Remarks: FC15-001377A

#11. P/N: FC15-003014A | Part name: Cover R Gear Cover Hs B B | Qty: 1 | Remarks: FC15-001378A /FC15-001378B

#12. P/N: FC18-001104 | Part name: Pin Pin Msh3 8 Misumi | Qty: 3

#13. P/N: FC18-000532B | Part name: Clamp Shaft Clamp | Qty: 1 | Remarks: FC18-000532A

#14. P/N: FC28-901070 | Part name: Set Piece Sepns3 | Qty: 2

#15. P/N: MC03-000169 | Part name: Bearing Ball Bearing 689Zz1 Nsk 9 17 | Qty: 1

#16. P/N: FC30-000921A | Part name: Plate T Top Plate | Qty: 1

#17. P/N: MC03-900056 | Part name: Ball Bearing Mr126Zz | Qty: 2

#18. P/N: FC30-000920A | Part name: Plate T Top | Qty: 1

#19. P/N: FC18-001091 | Part name: Ring O O Ring D15.0 W1.0 Nbr Kyowa | Qty: 2

#20. P/N: FC18-001093 | Part name: Ring O O Ring D10.0 W1.0 Nbr Kyowa | Qty: 2

#21. P/N: HP07-000166 | Part name: Packing Y Packing Myn 6 Sakagami | Qty: 2

#22. P/N: FC29-001324A | Part name: Collar T Top Collar | Qty: 1

#23. P/N: FC30-000919B | Part name: Plate Clamp Plate B | Qty: 1 | Remarks: FC30-000919A

#24. P/N: FC18-000539B | Part name: Ring Joint Clamp Ring | Qty: 1 | Remarks: FC18-000539A

#25. P/N: FC29-001322A | Part name: Dog R Dog | Qty: 1

#26. P/N: MC11-000489A | Part name: Gear R Gear B | Qty: 1

#26. P/N: MC11-004053A | Part name: Gear Spur Hsh R Gear B Carb Carburizing | Qty: 1 | Remarks: EXCEN PRO(D)

#27. P/N: MC11-000490A | Part name: Gear R Gear C | Qty: 1

#27. P/N: MC11-004054A | Part name: Gear Spur Hsh R Gear C Carb Carburizing | Qty: 1 | Remarks: EXCEN PRO(D)

#28. P/N: FC29-001316A | Part name: Step Stepped Screw | Qty: 3

#29. P/N: J70551756A | Part name: V020 Gear Spring | Qty: 3

#30. P/N: AM03-014820A | Part name: Assy Head Ash Hs V Motor Assy | Qty: 1 | Remarks: EP08-900080 / AM03-008762A

#31. P/N: FC07-001494A | Part name: Bracket Motor Bkt | Qty: 1 | Remarks: FC09-001877B

#32. P/N: FC07-000472B | Part name: Block Sensor Block | Qty: 1

#33. P/N: EP02-001006A | Part name: Harness V Axis Ph Sensor Cable | Qty: 1

#34. P/N: FC29-000185 | Part name: Stopper Stopper Sbcp3 12 Misumi Sbcp3 12 | Qty: 1

#35. P/N: FC09-002059B | Part name: Bracket Hsh Cam Arm B | Qty: 1 | Remarks: FC09-002059A

#36. P/N: MC11-900058 | Part name: Cam Follower Mc11 900058 | Qty: 2

#37. P/N: FC29-003087A | Part name: Dog V Shaft Holder Dog | Qty: 1 | Remarks: FC29-001373A

#38. P/N: FC18-901045 | Part name: Hex Nut M3 2/Zny | Qty: 1

#39. P/N: J70551761A | Part name: V020 Pin V | Qty: 1

#40. P/N: EP02-000933A | Part name: Harness R Axis Ph Sensor Cable Assy | Qty: 1 | Remarks: EP19-000168(SENSOR)

#41. P/N: FC09-001878A | Part name: Bracket R Sensor Bkt | Qty: 1

#42. P/N: FC18-903215 | Part name: Flat Washer Fc18 903215 | Qty: 1

#43. P/N: FC38-000083A | Part name: Spring Tor Valve Spr P Swp B | Qty: 1
