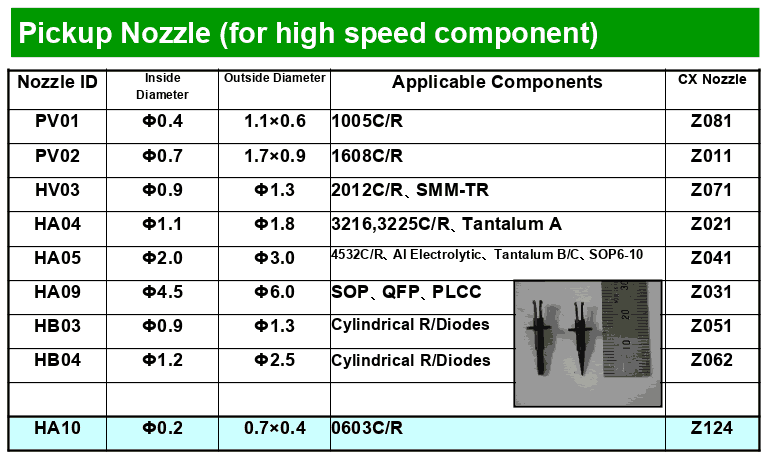

The SMT nozzle used on head module and component feed module correspondence of Hitachi high technology direct drive modular mounter GXH-1.
Nozzle ID: PV01 | Inside Diameter: Φ0.4 | Outside Diameter: 1.1×0.6 | Applicable Components: 1005C/R | CX Nozzle: Z081
Nozzle ID: PV02 | Inside Diameter: Φ0.7 | Outside Diameter: 1.7×0.9 | Applicable Components: 1608C/R | CX Nozzle: Z011
Nozzle ID: HV03 | Inside Diameter: Φ0.9 | Outside Diameter: Φ1.3 | Applicable Components: 2012C/R、SMM-TR | CX Nozzle: Z071
Nozzle ID: HA04 | Inside Diameter: Φ1.1 | Outside Diameter: Φ1.8 | Applicable Components: 3216,3225C/R、Tantalum A | CX Nozzle: Z021
Nozzle ID: HA05 | Inside Diameter: Φ2.0 | Outside Diameter: Φ3.0 | Applicable Components: 4532C/R, Al Electrolytic, Tantalum B/C, SOP6-10 | CX Nozzle: Z041
Nozzle ID: HA09 | Inside Diameter: Φ4.5 | Outside Diameter: Φ6.0 | Applicable Components: SOP、QFP、PLCC | CX Nozzle: Z031
Nozzle ID: HB03 | Inside Diameter: Φ0.9 | Outside Diameter: Φ1.3 | Applicable Components: Cylindrical R/Diodes | CX Nozzle: Z051
Nozzle ID: HB04 | Inside Diameter: Φ1.2 | Outside Diameter: Φ2.5 | Applicable Components: Cylindrical R/Diodes | CX Nozzle: Z062
Nozzle ID: HA10 | Inside Diameter: Φ0.2 | Outside Diameter: 0.7×0.4 | Applicable Components: 0603C/R | CX Nozzle: Z124
