Electric Panel Ass'y of SM411 SM411N Chip Shooter

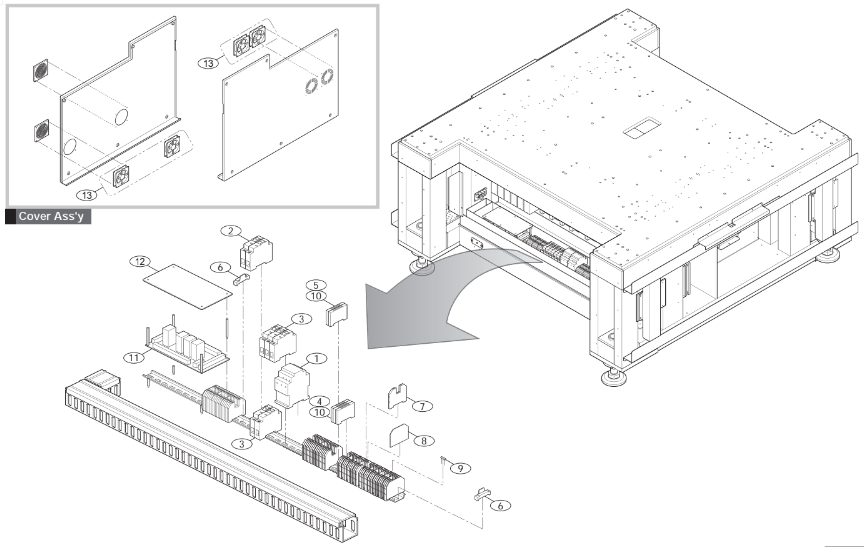

Electric Panel Assy of Samsung SM411 SM411N Fast & Flexible Chip Shooter Part 1

#A-1 P/N: J90781004A | Part Name: REAR_ELECTRIC_PANEL_ASSY | Qty: 1

#A-2 P/N: AM03-001671A | Part Name: SM411N_R_ELECTRIC_PANEL_ASSY

#1 P/N: J3501040A | Part Name: MAGNETIC CONTACTOR[LC1D096BD, DC24V, 1A1 | Qty: 2

#2 P/N: J3603015A | Part Name: CIRCUIT PROTECTOR[C60a-2P-C16(23812)] | Qty: 2

#3 P/N: J3603016A | Part Name: CIRCUIT PROTECTOR[C60a-3P-C16(23825)] | Qty: 1

#4 P/N: J3601018A | Part Name: FUSE[250V 5A] | Qty: 3

#5 P/N: J3601019A | Part Name: FUSE[250V 10A] | Qty: 2

#6 P/N: J3716042A | Part Name: STOPPER[UA-51] | Qty: 2

#7 P/N: J3716044A | Part Name: TEMINAL BLOCK[WDU 2.5] | Qty: 63

#8 P/N: J3716046A | Part Name: END PLATE[WAP2.5-10] | Qty: 11

#9 P/N: J3716047A | Part Name: CROSS CONNECTION[ZQV2.5] | Qty: 6

#10 P/N: J3716067A | Part Name: FUSE TERMINAL BLOCK[ASK 1] | Qty: 5

#11 P/N: J91741087A | Part Name: SAFETY_CONTROL_DC_POWER_BOARD | Qty: 1 | Remarks: J90600400B

#12 P/N: J7251007A | Part Name: BOARD COVER[J7251007A] | Qty: 1

#13 P/N: J3105010A | Part Name: COOLING FAN[4715MS-22T-B50] | Qty: 2

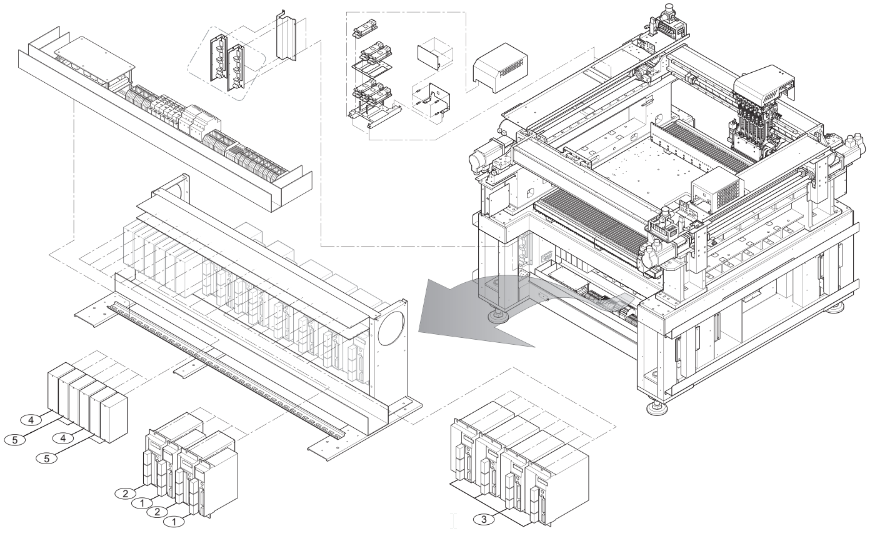

Electric Panel Assy of Samsung SM411 SM411N Fast & Flexible Chip Shooter Part 2

#1 P/N: J3153055A | Part Name: SERVO MOTOR DRIVER(100W) | Qty: 2 | Remarks: J3153054A

#2 P/N: J3153056A | Part Name: SERVO MOTOR DRIVER(750W)[MCDDT3520] | Qty: 2

#3 P/N: J3153057A | Part Name: SERVO MOTOR DRIVER(1KW)[MDDDT5540] | Qty: 4

#4 P/N: J3153059B | Part Name: SERVO MOTOR DRIVER-PB[PB1D003P101] | Qty: 2 | Remarks: J3153059A

#5 P/N: J3153060B | Part Name: SERVO MOTOR DRIVER-PB[PB1D002P101] |Qty: 4 | Remarks: J3153060A

#6 P/N: AM10-000107A | Part Name: RELAY | Qty: 1
