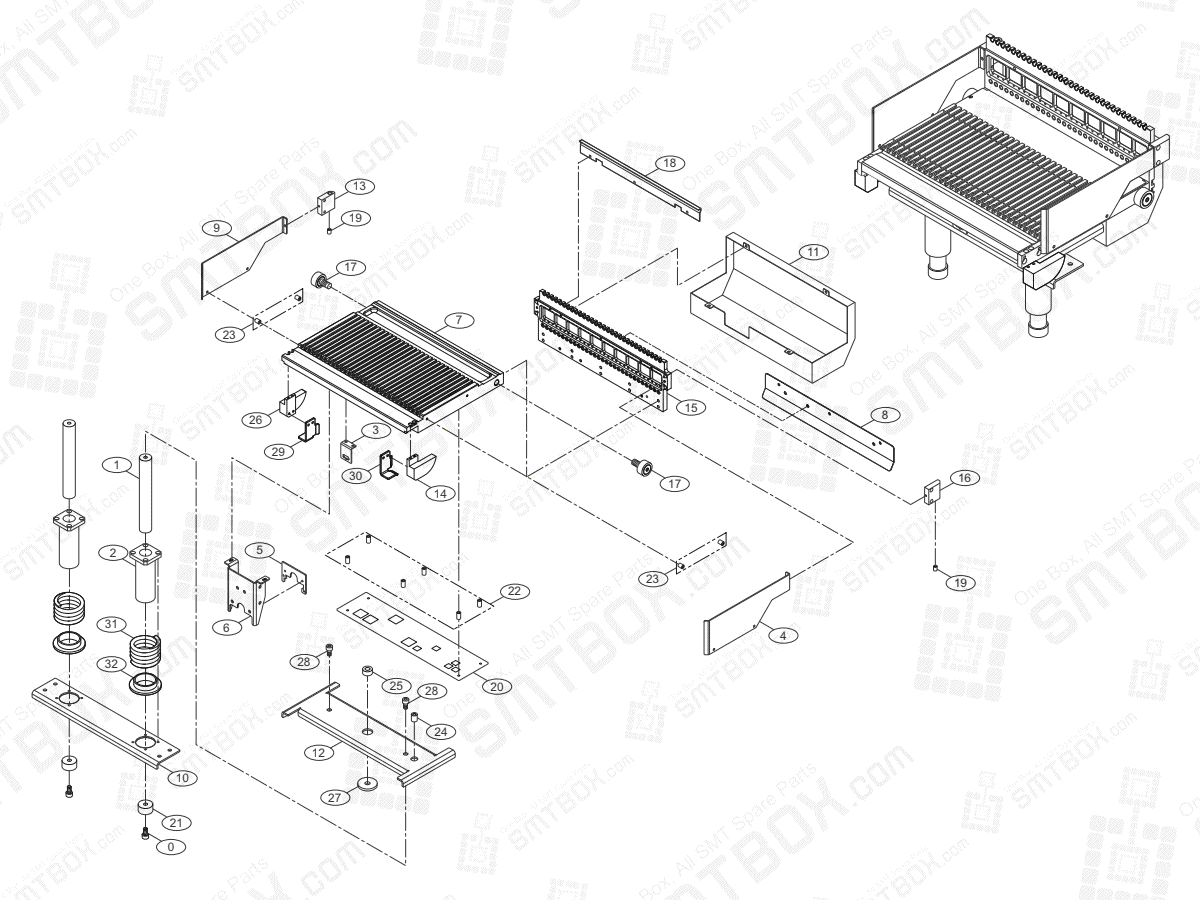

Docking Cart (1/2) AM03-006424A On Hanwha Techwin Excellent Modular EXCEN PRO (D) (M) (L) SMT Component Placer

Docking Cart 1 2 On Hanwha Techwin Excellent Modular Excen Pro D M L Smt Component Placer

#A. P/N: AM03-006424A | Part Name: Assy Feeder Base Docking Cart Assy | Qty: 1

#1. P/N: MC19-000015A | Part Name: Shaft Shaft Me5 Stainless Steel | Qty: 2

#2. P/N: MC03-000005 | Part Name: Bearing Ball Ball Bush Lmk25Luu | Qty: 2

#3. P/N: J70653908A | Part Name: Cn Bracket B J70653908A | Qty: 1

#4. P/N: J70653896A | Part Name: Guide R J70653896A | Qty: 1

#5. P/N: FC30-004274A | Part Name: Cn Plate J70653889A | Qty: 1 | Old P/N: J70653889A

#6. P/N: FC09-001995C | Part Name: Bracket V1P08 Cn Bracket B | Qty: 1 | Old P/N: FC09-001995A / FC09-001995B

#7. P/N: FC05-001097A | Part Name: Base V1P08 Dcfeederbase A | Qty: 1

#8. P/N: FC30-002594A | Part Name: Pcb Shield Plate | Qty: 1

#9. P/N: J70653885A | Part Name: Guide L J70653885A | Qty: 1

#10. P/N: FC09-001996B | Part Name: Bracket V1P08 Bush Bracket | Qty: 1 | Old P/N: FC09-001996A

#11. P/N: J70653883A | Part Name: Board Cover J70653883A | Qty: 1

#12. P/N: FC09-006560A | Part Name: Bracket A J70653882A | Qty: 1 | Old P/N: J70653882A

#13. P/N: FC07-003292A | Part Name: Block V1P08 Dcblock L A | Qty: 1

#14. P/N: FC07-003295A | Part Name: Block V1P08 Dcmovecam R A | Qty: 1

#15. P/N: FC30-000910F | Part Name: Locate Plate | Qty: 1 | Old P/N: FC30-000910A / FC30-000910C / FC30-000910D / FC30-000910E

#16. P/N: FC07-003293A | Part Name: Block V1P08 Dcblock R A | Qty: 1

#17. P/N: MC03-000056 | Part Name: Bearindg Needle | Qty: 2

#18. P/N: FC30-001906C | Part Name: Plate Dc Tape Guide C | Qty: 1

#19. P/N: FC18-901207 | Part Name: Pin Msth8 20 | Qty: 2

#20. P/N: AM03-017617A | Part Name: Assy Board Vccb | Qty: 1 | Old P/N: AM03-010234E / AM03-010234F / AM03-010234G

#21. P/N: FC10-900082 | Part Name: Urethane Ayhk30 15 | Qty: 2

#22. P/N: FC29-000151A | Part Name: Collar V1 Dc Collar D Me1 Steel | Qty: 6

#23. P/N: FC29-000150A | Part Name: Collar V1 Dc Collar C Me1 Steel | Qty: 4

#24. P/N: FC29-000149B | Part Name: Collar V1 Dc Collar B | Qty: 1

#25. P/N: FC29-002370A | Part Name: Collar Collar B 5 | Qty: 1 | Old P/N: FC29-000148A

#26. P/N: FC07-003294A | Part Name: Block V1P08 Dcmovecam L A | Qty: 1

#27. P/N: FC18-000067A | Part Name: Washer V1 Dc Washer A Me1 Steel | Qty: 2

#28. P/N: FC18-902786 | Part Name: Shcs(M8*15) | Qty: 2

#29. P/N: FC09-002654B | Part Name: Bracket Move Cam L Plate | Qty: 1 | Old P/N: FC09-002654A

#30. P/N: Fc09-002652B | Part Name: Bracket Move Cam R Plate | Qty: 1 | Old P/N: FC09-002652A

#31. P/N: Fc38-000119A | Part Name: Spring Com Docking Cart Pw-2 2.5 32 55 | Qty: 2

#32. P/N: Fc09-002565A | Part Name: Bracket Bush Spring | Qty: 2
