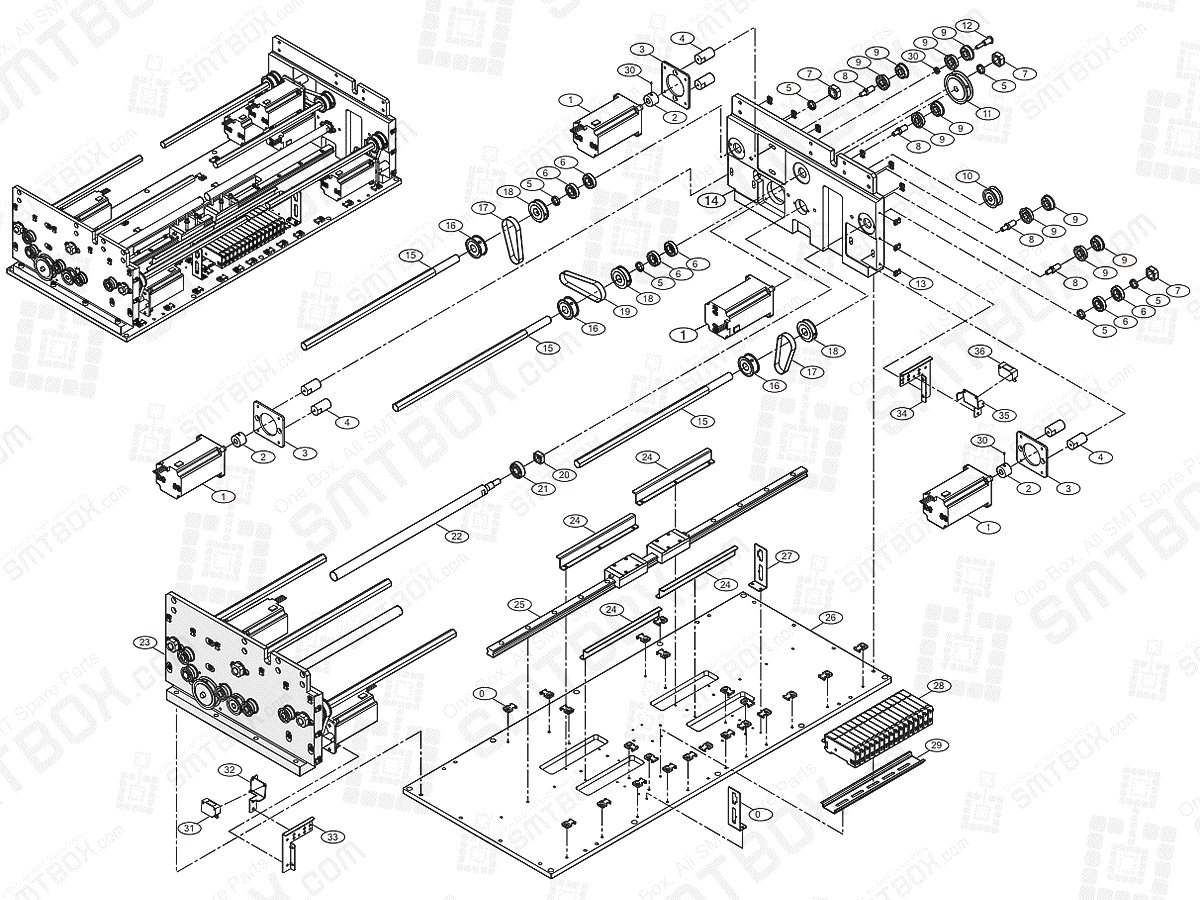

Conveyor(7/7) On Hanwha Techwin Excellent Modular EXCEN PRO (D) (M) (L) SMT Component Placer

CONVEYOR7 7 On Hanwha Techwin Excellent Modular Excen Pro D M L Smt Component Placer

#1. P/N: EP08-900081 | Part Name: Stepping Motor Du13H713S 50 | Qty: 8

#2. P/N: J71531393A | Part Name: Pulley Flat Belt Motor J71531393A | Qty: 6

#3. P/N: FC30-001031A | Part Name: Plate Motor Plate V1P | Qty: 6

#4. P/N: J70532148A | Part Name: Motor Plate Support | Qty: 12

#5. P/N: J70532063A | Part Name: Flat Pulley Spacer J70532063A | Qty: 12

#6. P/N: MC03-900114 | Part Name: Bearing B6901Zz | Qty: 12

#7. P/N: FC18-900921 | Part Name: Lock Nut Rn12 | Qty: 6

#8. P/N: MC19-000438A | Part Name: Shaft Width Tension Pin 2 Vp | Qty: 8

#9. P/N: MC03-900080 | Part Name: Ball Bearing[608Zz] | Qty: 20 | Remarks: MC03-900121

#10. P/N: J71531395A | Part Name: Pulley Lead Screw J71531395A | Qty: 2

#11. P/N: J71531392A | Part Name: Pulley Width Motor J71531392A | Qty: 2

#12. P/N: J70532062A | Part Name: Width Tension Pin J70532062A | Qty: 2

#13. P/N: FC18-903190 | Part Name: Profile Mount Dia4.0 | Qty: 40

#14. P/N: FC29-001428A | Part Name: Stand Fix Stand Rear Mid | Qty: 1

#15. P/N: MC13-000040A | Part Name: Spline Spline H 347 | Qty: 6

#16. P/N: J71531394A | Part Name: Pulley Spline J71531394A | Qty: 6

#17. P/N: MC05-000144 | Part Name: Timing Belt 186 3Gt 9 Unitta 3Gt 186 3 | Qty: 1

#18. P/N: MC19-000424A | Part Name: Pulley Motor S2M | Qty: 6

#19. P/N: MC05-900076 | Part Name: Timming Belt Width Motor 216 3Gt 9 | Qty: 2

#20. P/N: FC18-900919 | Part Name: Lock Nut[Rn 10] | Qty: 2

#21. P/N: MC03-900023 | Part Name: Ball Bearing | Qty: 2

#22. P/N: MC13-000039A | Part Name: Screw Lead Lead Screw 374 | Qty: 2

#23. P/N: FC29-001427A | Part Name: Stand Fix Stand Front Mid | Qty: 1

#24. P/N: J70532081A | Part Name: Amp Cable Cover J70532081A | Qty: 1

#25. P/N: MC13-900112 | Part Name: Lm Guide Sbi15Hl 2 K1 710 N | Qty: 1

#26. P/N: FC30-001032A | Part Name: Plate Plate Middle Stand | Qty: 1

#27. P/N: J70532084A | Part Name: Width Motor Connect Bkt J70532084A | Qty: 2

#28. P/N: EP19-900172 | Part Name: Sensor Amp E3X Da21 S 2M | Qty: 16

#29. P/N: RM01-000596A | Part Name: Rail Din Rail 200 | Qty: 1

#30. P/N: FC18-903238 | Part Name: Washer Wssm10 5 3 Misumi Wssm10 5 3 | Qty: 1

#31. P/N: AM03-019175B | Part Name: Cable Assy Pcb Detect S16 Photo Sns Cab | Qty: 1 | Remarks: EXCEN PRO(D)

#32. P/N: FC09-007271A | Part Name: Bracket Buf Sns Bkt Adj F Cx | Qty: 1 | Remarks: EXCEN PRO(D)

#33. P/N: FC09-007273A | Part Name: Bracket Buf Sns Bkt Base F Cx | Qty: 1 | Remarks: EXCEN PRO(D)

#34. P/N: FC09-007270A | Part Name: Bracket Buf Sns Bkt Base R Cx | Qty: 1 | Remarks: EXCEN PRO(D)

#35. P/N: FC09-007272A | Part Name: Bracket Buf Sns Bkt Adj R Cx | Qty: 1 | Remarks: EXCEN PRO(D)

#36. P/N: AM03-019178B | Part Name: Cable Assy Pcb Detect S5 Photo Sns Cable | Qty: 1 | Remarks: EXCEN PRO(D)
