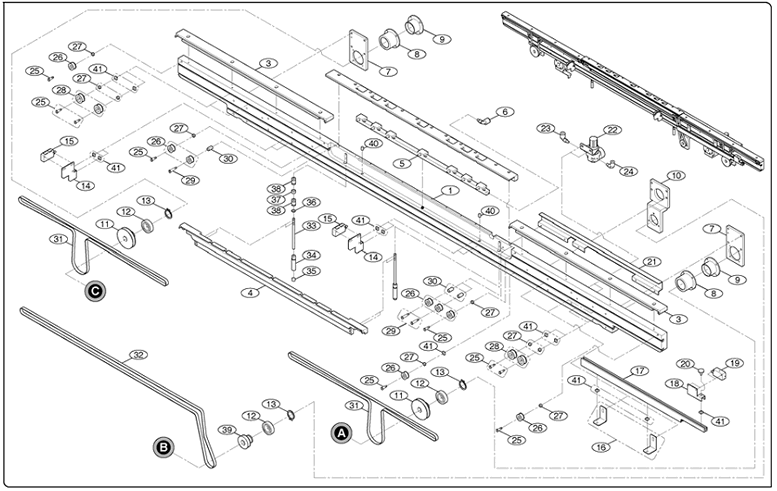

Conveyor Moving Frame Assembly on Samsung Techwin SM321 SMT Machine

1 P/N: J7153415A | Part Name: CONV REAR FRAME | Qty: 1
2 P/N: J7053786A | Part Name: PCB GUIDE R.C | Qty: 1
3 P/N: J7053679A | Part Name: PCB GUIDE END | Qty: 2
4 P/N: J7153400A | Part Name: CLAMP REAR FRAME | Qty: 1
5 P/N: J6701087A | Part Name: EDGE CYCINDER | Qty: 1 | Type: CQ286-2-CJJC2948
6 P/N: J6711001A | Part Name: FITTING | Qty: 1 | Type: KQ2L04-M5/PL4-M5M/SQL04-M5
7 P/N: J7053671A | Part Name: WAIT PULLEY BKT SR | Qty: 2
8 P/N: J7053672A | Part Name: BEARING HOUSING SR | Qty: 2
9 P/N: J7053673A | Part Name: BEARING NUT SR | Qty: 2
10 P/N: J7053622A | Part Name: SPLINE BRACKET | Qty: 1
11 P/N: J7153410A | Part Name: SPLINE PULLEY-S | Qty: 3
12 P/N: J6601123A | Part Name: BEARING | Qty: 3 | Type: 6804ZZ
13 P/N: J6073000536S | Part Name: C-RING(SHAFT) | Qty: 3 | Type: DIA20
14 P/N: J7053783A | Part Name: RACKET SENSOR PLACE | Qty: 2
15 P/N: J3211033A | Part Name: PHOTO SENSOR | Qty: 2 | Type: E3S-LS3N
16 P/N: J7053694C | Part Name: BRACKET RAIL | Qty: 2
17 P/N: J7153331A | Part Name: AIL SENSOR | Qty: 1
18 P/N: J7053692B | Part Name: BRACKET SENSOR | Qty: 1
19 P/N: J3211032A | Part Name: PHOTO ELECTRIC SENSOR | Qty: 1 | Type: BYD30-DDT
20 P/N: J7053689A | Part Name: QUICK SENSOR KNOB | Qty: 3
21 P/N: J7053777A | Part Name: CABLE DUCT | Qty: 1
22 P/N: J6709018A | Part Name: REGULATOR | Qty: 1 | Type: AR10-M5BG
23 P/N: J6711009A | Part Name: ELBOW FITTING | Qty: 1 | Type: KQ2L06-M5
24 P/N: J6711001A | Part Name: FITTING | Qty: 1 | Type: KQ2L04-M5/PL4-M5M/SQL04-05
25 P/N: J7053009A | Part Name: IDLER SHAFT-S2 9
26 P/N: J7253007A | Part Name: IDLER-2 | Qty: 8
27 P/N: J7053047A | Part Name: IDLER SPACER-S 9
28 P/N: J7253006A | Part Name: IDLER-1 | Qty: 4
29 P/N: J7053770A | Part Name: IDLER SHAFT-M | Qty: 3
30 P/N: J7053763A | Part Name: IDLER SPACER-M | Qty: 3
31 P/N: J6602082A | Part Name: FLAT BELT-END ZONE | Qty: 2 | Type: MAM-5P,1230L,7W
32 P/N: J6602082A | Part Name: FLAT BELT-WORK ZONE | Qty: 1 | Type: MAM-5P,1534L,7W
33 P/N: J7153034A | Part Name: CLAMP SHAFT | Qty: 2 | Type: 0135-641111
34 P/N: J7153010B | Part Name: ADJUST SHAFT | Qty: 2
35 P/N: J7253008A | Part Name: STOPPER | Qty: 2
36 P/N: J6073000036H | Part Name: C-RING | Qty: 2 | Type: 10MM(HOLE)
37 P/N: J7153033A | Part Name: BUSH SPACER | Qty: 2
38 P/N: J6601016A | Part Name: BALL BUSH | Qty: 4 | Type: LM5(M)
39 P/N: J7153406A | Part Name: SPLINE PULLEY-M | Qty: 1
40 P/N: J7253009B | Part Name: STOPPER-2 | Qty: 2
41 P/N: J7053184A | Part Name: SQUARE NUT M4 | Qty: 12
