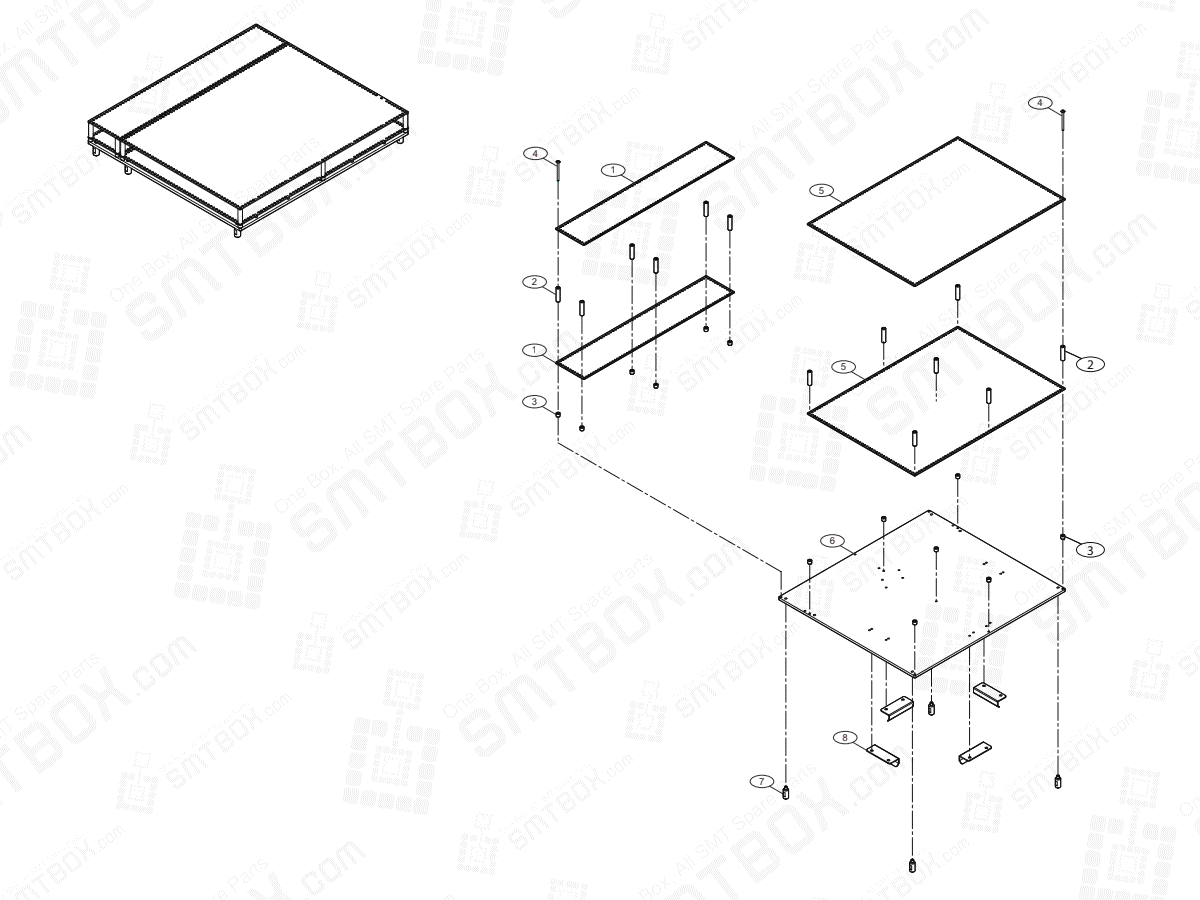

BUT Block 310mm AM03-008516A On Hanwha Techwin Excellent Modular EXCEN PRO (M) (D) (L) Component Placer

#A P/N: AM03-008516A | Part Name: Assy But Mtv1P05 But Pin Block 310 | Qty: 1

#1 P/N: FC30-001353A | Part Name: Plate Mtv1P But Pin Upper Plate 60 | Qty: 2

#2 P/N: FC18-004272 | Part Name: Collar Collor | Qty: 13 | Old P/N: FC29 001336A

#3 P/N: FC18-004273 | Part Name: Collar Wssb635 | Qty: 13 | Old P/N: FC29 001337A

#4 P/N: J70532094A | Part Name: Back Up Pin J70532094A | Qty: 10

#5 P/N: FC30-001342A | Part Name: Mtv1P But Pin Upper Plate 310 | Qty: 2

#6 P/N: FC30-001345B | Part Name: Plate Mtv1P But Pin Base Plate 310 A6061 | Qty: 1 | Old P/N: FC30 001345A

#7 P/N: FC30-000842C | Part Name: Plate V05 Back Up Block Foot M C | Qty: 4 | Old P/N: FC30 000842B

#8 P/N: FC29-001863A | Part Name: Guide V1P05 Pin Block Put Guide | Qty: 4
