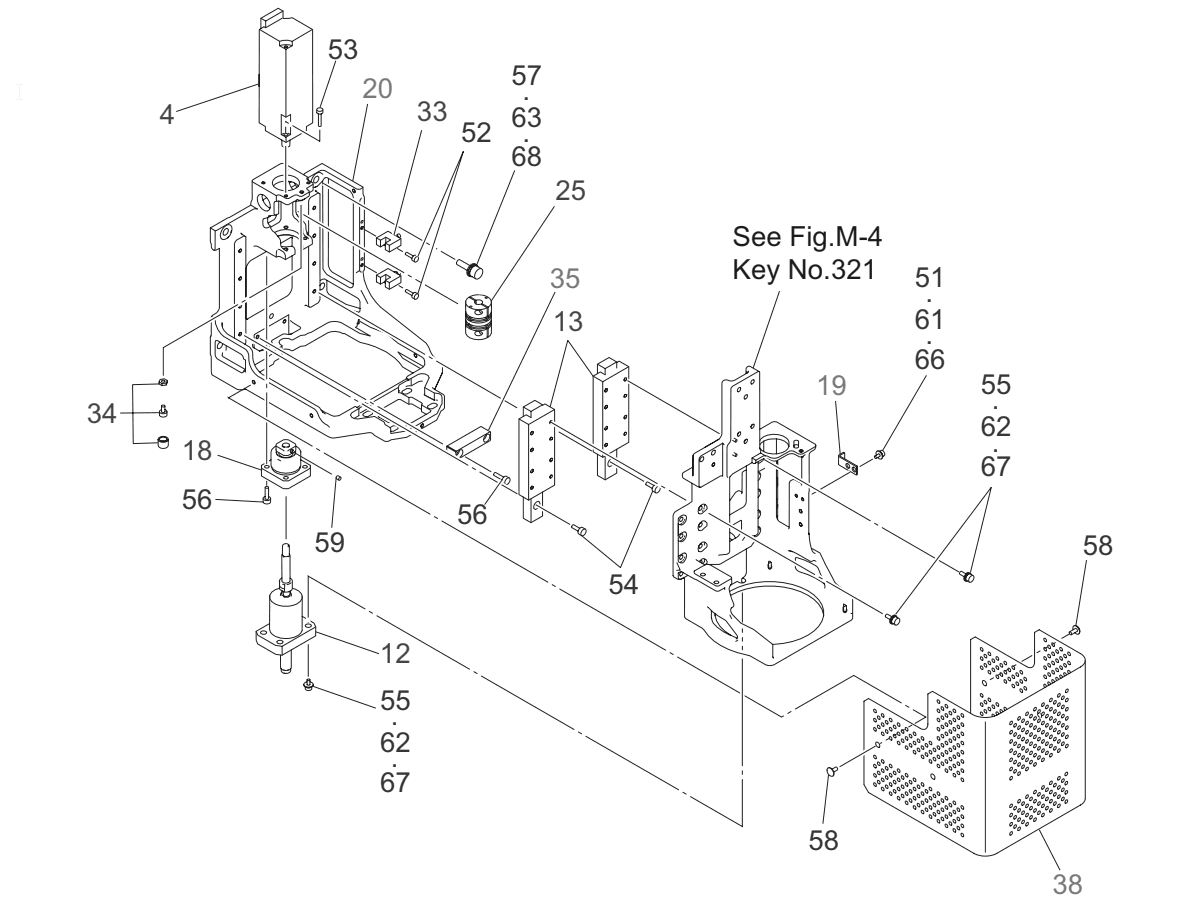

Base Section of Head Section on Hitachi Chip Mounting System GXH-1

Base Section of Head Section on Hitachi Chip Mounting System GXH-1

#4 . P/N: 630 127 3648 | Part Name: MOTOR,AC-SERVO | Qty: 1 | Remarks: -M34,HC-AQ0236BS-S2 803M–210-004

#12. P/N: 630 125 2919 | Part Name: BALL SCREW(BALL SCREW) | Qty: 1 | Remarks: 803M–210-012

#13. P/N: 630 125 2926 | Part Name: GUIDE,LINEAR(GUIDE SLIDE) | Qty: 1 | Remarks: 803M–210-013

#18. P/N: 630 125 0342 | Part Name: BEARING,UNIT | Qty: 1 | Remarks: 803M–210-018

#19. P/N: 630 126 4592 | Part Name: BRACKET(BRACKET) | Qty: 1 | Remarks: 803M–210-119

#20. P/N: 630 128 0585 | Part Name: BASE | Qty: 1 | Remarks: 803M–210-120

#25. P/N: 630 125 0588 | Part Name: COUPLING | Qty: 1 | Remarks: MDW-19C-5*6 803M–210-025

#33. P/N: 630 125 0878 | Part Name: SENSOR,PHOTO | Qty: 2 | Remarks: -B3103,-B3106,PM-F24 803M–210-033

#34. P/N: 630 125 0885 | Part Name: MECH PARTS(STOPPER) | Qty: 1 | Remarks: 803M–210-034

#35. P/N: 630 125 0892 | Part Name: MECH PARTS(STOPPER) | Qty: 1 | Remarks: 803M–210-035

#38. P/N: 630 130 8937 | Part Name: COVER | Qty: 1 | Remarks: 803M–210-138

#51. P/N: 630 012 3791 | Part Name: BOLT,HEX-SCT | Qty: 2 | Remarks: M2.5X5

#52. P/N: 630 000 7473 | Part Name: BOLT,HEX-SCT | Qty: 2 | Remarks: M2.5X8

#53. P/N: 630 000 7480 | Part Name: BOLT,HEX-SCT | Qty: 2 | Remarks: M2.5X12

#54. P/N: 630 000 7510 | Part Name: BOLT,HEX-SCT | Qty: 8 | Remarks: M3X8

#55. P/N: 630 000 7510 | Part Name: BOLT,HEX-SCT | Qty: 20 | Remarks: M3X8

#56. P/N: 630 000 7527 | Part Name: BOLT,HEX-SCT | Qty: 6 | Remarks: M3X10

#57. P/N: 630 000 7763 | Part Name: BOLT,HEX-SCT | Qty: 4 | Remarks: M5X16

#58. P/N: 411 050 5004 | Part Name: SCR TRS 3X6 | Qty: 4 | Remarks: M3X6 TRS

#59. P/N: 630 036 4132 | Part Name: SET SCREW | Qty: 1 | Remarks: 803M–210-205

#61. P/N: 411 141 6606 | Part Name: WASHER SPR 2.5 | Qty: 2 | Remarks: SW2.5

#62. P/N: 411 141 2806 | Part Name: WASHER SPR 3 | Qty: 20 | Remarks: SW3

#63. P/N: 411 141 6705 | Part Name: WASHER SPR 5 | Qty: 4 | Remarks: SW5

#66. P/N: 411 141 3803 | Part Name: WASHER V 2.5X6.5X0.5 | Qty: 2 | Remarks: FW2.5

#67. P/N: 411 141 3902 | Part Name: WASHER V 3X7X0.5 | Qty: 20 | Remarks: FW3

#68. P/N: 411 141 4107 | Part Name: WASHER V 5X10X1 | Qty: 4 | Remarks: FW5
