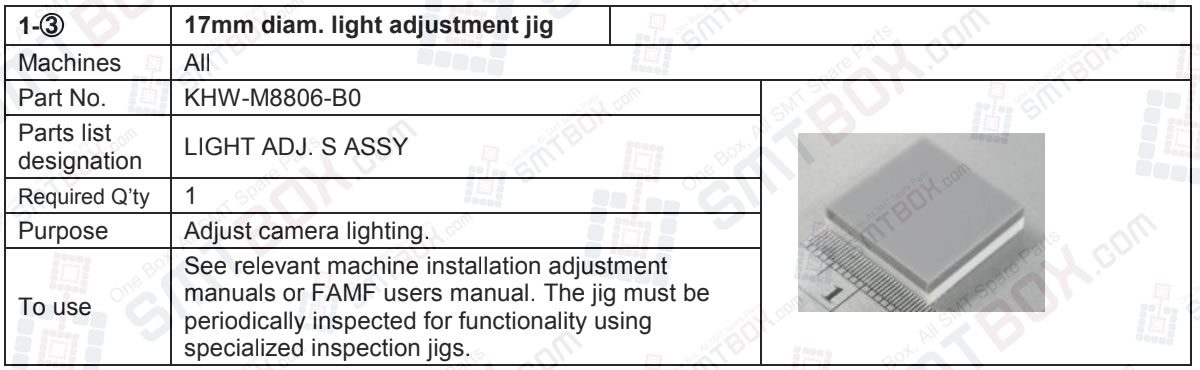

1-3 17mm Diammeter Light Adjustment Jig
Machines: All Yamaha SMT Mounters
Part No.: KHW-M8806-B0
Parts list: Designation Light Adjustment S Assy
Required: Q’ty 1
Purpose Adjust camera lighting.
To use: See relevant machine installation adjustment manuals or FAMF users manual. The jig must be periodically inspected for functionality using specialized inspection jigs.
