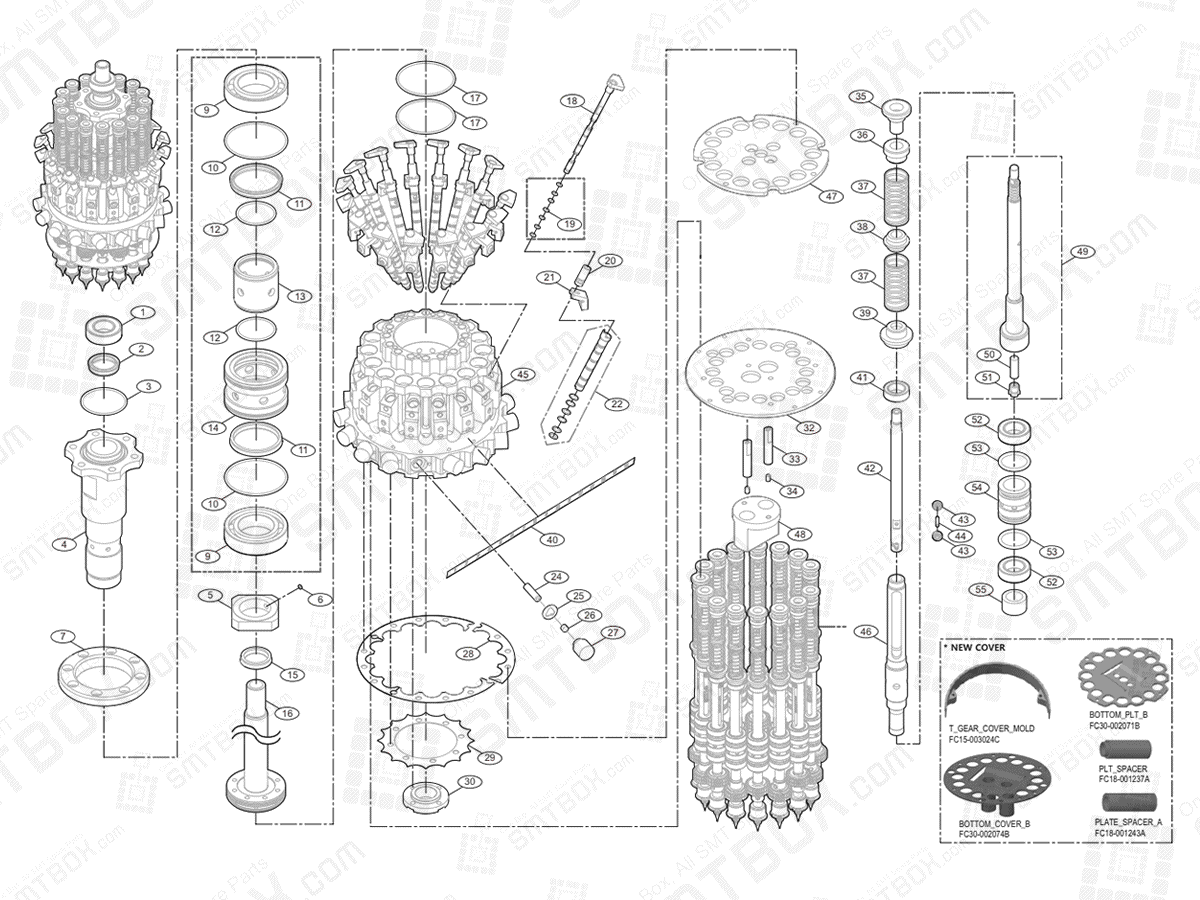

Having issues with HSH(3/4) (Option) Auto Sensing Head on Hanwha (Samsung Techwin) Excellent Modular EXCEN PRO (D) (M) (L)? Read our step-by-step SMT maintenance solution below. If you require replacement feeders, nozzles, or sensors, contact SMTBOX for OEM-compatible parts.
#1. P/N: MC03-000169 | Part name: Bearing Ball Bearing 689Zz1 Nsk 9 17 | Qty: 1
#2. P/N: HP07-000165 | Part name: Packing Y Packing Myn 11 Sakagami | Qty: 1
#3. P/N: FC18-001089 | Part name: Ring O O Ring D20.0 W1.0 Nbr Kyowa | Qty: 1
#4. P/N: MC19-000389A | Part name: Shaft Barrel Shaft | Qty: 1
#5. P/N: FC18-000530A | Part name: Nut Etc Lock Nut B M16 Al | Qty: 1
#6. P/N: FC28-901070 | Part name: Set Piece Sepns3 | Qty: 1
#7. P/N: FC30-000916A | Part name: Plate B Plate Bu | Qty: 1
#9. P/N: MC03-000171 | Part name: Bearing Ball Bearing 7903Ctyndblp4 Nsk | Qty: 2
#10. P/N: FC18-901418 | Part name: O Ring Fc18 901418 | Qty: 2
#11. P/N: HP07-000164 | Part name: Packing Y Packing Myn 21 Sakagami | Qty: 2
#12. P/N: FC18-001090 | Part name: Ring O O Ring D17 W1 Ksn70102(Nbr) Ky | Qty: 2
#13. P/N: FC29-001317B | Part name: Collar Inner Collar | Qty: 1 | Remarks: FC29-001317A
#14. P/N: FC29-001318B | Part name: Collar Outer Collar | Qty: 1 | Remarks: FC29-001318A
#16. P/N: MC19-000393B | Part name: Shaft R Shaft 1 Mc19 000393A
#17. P/N: FC18-001116 | Part name: Ring O Oring 26X1 | Qty: 2
#18. P/N: AM03-020602A | Part name: Assy Etc Ims Hsh Spool | Qty: 16 | Remarks: HP15-000002A / AM03-013447A / AM03-014270A
#19. P/N: HP12-000217 | Part name: Oring 112 Fc18 001092
#20. P/N: FC29-001328A | Part name: Holder Spool Holder | Qty: 16
#21. P/N: FC29-007188A | Part name: Spool Guide Press | Qty: 16 | Remarks: FC29-001323C
#22. P/N: HP13-001065A | Part name: Tube Etc Cyl Tube Mm Straight 5 2.8 1 A | Qty: 16
#24. P/N: HP04-000049A | Part name: Filter Air Filter | Qty: 16
#25. P/N: HP12-000117 | Part name: Seal M 5G2 | Qty: 16
#26. P/N: FC10-000058A | Part name: Sponge V1 Valve Cushion | Qty: 16
#27. P/N: FC29-003360A | Part name: Cap Filter Cap | Qty: 16 | Remarks: FC29-001329A
#28. P/N: FC30-000914B | Part name: Plate B Plate A | Qty: 4 | Remarks: FC30-000914A
#29. P/N: FC30-000915A | Part name: Plate B Plate B | Qty: 1
#30. P/N: FC30-000917A | Part name: Plate B Plate Bl | Qty: 1
#32. P/N: FC30-002027B | Part name: Plate Hsh Protect Plate | Qty: 1 | Remarks: FC30-000918A /FC30-002027A
#33. P/N: FC28-000666A | Part name: Pole Hsh Ref Pole | Qty: 2 | Remarks: FC28-000412B/
#34. P/N: J74551006A | Part name: Mark Mark Pin J74551006Apin | Qty: 2
#35. P/N: FC19-000205A | Part name: Head Spindle Head | Qty: 1
#36. P/N: FC29-004479A | Part name: Holder Spring Holder | Qty: 1 | Remarks: FC29-001330A
#37. P/N: FC38-000107A | Part name: Spring Com Spindle Spring P Swp B | Qty: 2
#38. P/N: FC29-004478A | Part name: Collar Spr Collar L | Qty: 1 | Remarks: FC29-001986A
#39. P/N: FC29-004474A | Part name: Collar Spr Base L | Qty: 1 | Remarks: FC29-001987A
#40. P/N: PT03-000437A | Part name: Sticker Spindle N Sticker Rectangle | Qty: 1
#41. P/N: MC03-000174 | Part name: Bearing Ball Bearing Mr85Zz Nsk Id5 | Qty: 1
#42. P/N: MC19-000780A | Part name: Shaft U 4P 1 Mc19 000390A
#43. P/N: MC03-000170 | Part name: Bearing Ball Bearing 1 3 Radial | Qty: 2
#44. P/N: FC18-004278 | Part name: Ka0100 0046A | Qty: 1 | Remarks: FC18-000533A
#45. P/N: EP14-000338D | Part name: Barrel 1 Ep14 000338A
#46. P/N: FC29-002040A | Part name: Housing Shaft Housing | Qty: 1
#47. P/N: FC30-002026B | Part name: Plate Hsh Bottom Plate Inner | Qty: 1 | Remarks: FC30-002026A
#48. P/N: FC07-001378A | Part name: Block Hsh Ref Protect Block | Qty: 1
#49. P/N: AM03-010101B | Part name: Assy Etc Ims Excen Pro Hsh Shaft L | Qty: 1
#50. P/N: HP04-000157B | Part name: Filter Air Hsh Noz Filter B | Qty: 1 | Remarks: HP04-000157A
#51. P/N: FC29-002516A | Part name: Holder Hsh Filter Holder | Qty: 1 | Remarks: FC18-000536A/ FC18-000536B
#52. P/N: MC03-900063 | Part name: Ball Bearing Mr106Zz | Qty: 2
#53. P/N: FC18-001086 | Part name: Ring O O Ring D8 W1 Kse70102(Epdm) Ky | Qty: 2
#54 FC18-000534A | Part name: Spacer Seal Spacer | Qty: 1
#55 FC29-001310A | Part name: Hoder Hsh V020 Noz Holder Assy | Qty: 1
