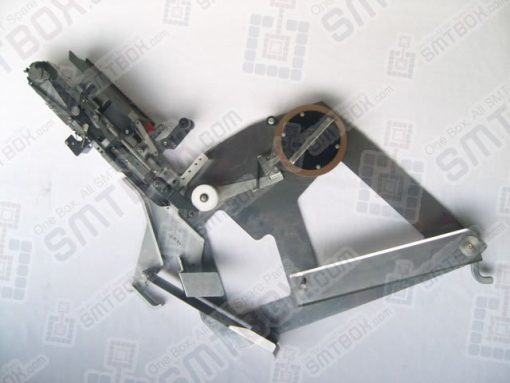

What is Panasonic KME Panasert CM120-MU CM20F-M CM201 CM202 CM301 Electronic Component Mounting Equipment M9 Type Feeder 32x12mm Emboss Adhesive Feeder 3P Large Reel M9G3CVM0000?
Looking for Panasonic KME Panasert CM120-MU CM20F-M CM201 CM202 CM301 Electronic Component Mounting Equipment M9 Type Feeder 32x12mm Emboss Adhesive Feeder 3P Large Reel M9G3CVM0000? This SMT spare part (SKU: M9G3CVM0000, Brand: Panasonic) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.
We offer Panasonic KME Panasert CM120-MU CM20F-M CM201 CM202 CM301 Electronic Component Mounting Equipment M9 Type Feeder 32x12mm Emboss Adhesive Feeder 3P Large Reel M9G3CVM0000.Pls contact sales@smtbox.com
Panasonic/KME/Panasert CM120-MU CM20F-M CM201 CM202 CM301 M9 Type Single Tape Feeder
| No. | Part No. | Unit Name / Part Name |
|---|---|---|
| 1 | M9A1CSM0000 | 8mm x 4mm Tape Feeder. Emboss.W8*1P.Wide. Small Reel |
| 2 | M9A1CVM0000 | 8mm x 4mm Tape Feeder. Emboss. W8*1P.Wide. Large Reel |
| 3 | M9A1NSM0000 | 8mm x 4mm Tape Feeder. Emboss. W8*1P.Small Reel |
| 4 | M9A1NVM0000 | 8mm x 4mm Tape Feeder. Emboss. W8*1P.Large Reel |
| 5 | M9A5NSM0000 | 8mm x 2mm Tape Feeder. Emboss. W8*0.5P.Small Reel |
| 6 | M9A5NVM0000 | 8mm x 2mm Tape Feeder. Emboss. W8*0.5P.Large Reel |
| 7 | M9B1CSM0000 | 8mm x 4mm Tape Feeder. Paper. W8*1P. Small Reel |
| 8 | M9B1CVM0000 | 8mm x 4mm Tape Feeder. Paper. W8*1P. Large Reel |
| 9 | M9B5CSM0000 | 8mm x 2mm Tape Feeder. Paper. W8*0.5P.Small Reel |
| 10 | M9B5CVM0000 | 8mm x 2mm Tape Feeder. Paper. W8*0.5P.Large Reel |
| 11 | M9C1CSM0000 | 12mm x 4mm Tape Feeder. Emboss. W12*1P.Small Reel |
| 12 | M9C1CVM0000 | 12mm x 4mm Tape Feeder. Emboss. W12*1P.Large Reel |
| 13 | M9C1NSM0000 | 12mm x 4mm Tape feeder. plastic W12*1P.small reel |
| 14 | M9C1NVM0000 | 12mm x 4mm Tape feeder. plastic W12*1P.eglar reel |
| 15 | M9C2CSM0000 | 12mm x 8mm Tape Feeder. Emboss. W12*2P.Small Reel |
| 16 | M9C2CVM0000 | 12mm x 8mm Tape Feeder. Emboss. W12*2P.Large Reel |
| 17 | M9C2NSM0000 | 12mm x 8mm Tape feeder. plastic W12*2P. small reel |
| 18 | M9C2NVM0000 | 12mm x 8mm Tape feeder. plastic W12*2P. eglar reel |
| 19 | M9C3CVM0000 | 12mm x 12mm Tape Feeder. Emboss. W12*3P.Large Reel |
| 20 | M9C3NVM0000 | 12mm x 12mm Tape feeder. plastic W12*3P. eglar reel |
| 21 | M9D1CVM0000 | 16mm x 4mm Tape Feeder. Emboss. W16*1P.Large Reel |
| 22 | M9D1DVM0000 | 16mm x 4mm Tape Feeder. Emboss. W16*1P.Deep Groove. Large Reel |
| 23 | M9D1NVM0000 | 16mm x 4mm Tape feeder. plastic W16*1P. eglar reel |
| 24 | M9D2CVM0000 | 16mm x 8mm Tape Feeder. Emboss. W16*2P.Large Reel |
| 25 | M9D2DVM0000 | 16mm x 8mm Tape Feeder. Emboss. W16*2P.Deep Groove. Large Reel |
| 26 | M9D2NVM0000 | 16mm x 8mm Tape feeder. plastic W16*2P. eglar reel |
| 27 | M9D3CVM0000 | 16mm x 12mm Tape Feeder. Emboss. W16*3P.Large Reel |
| 28 | M9D3DVM0000 | 16mm x 12mm Tape Feeder. Emboss. W16*3P.Deep Groove. Large Reel |
| 29 | M9D3NVM0000 | 16mm x 12mm Tape feeder. plastic W16*3P. eglar reel |
| 30 | M9D4CVM0000 | 16mm x 16mm tape Feeder. Emboss. W16*4P.large reel |
| 31 | M9D4DVM0000 | 16mm x 16mm Tape Feeder. Emboss. W16*4P.Deep Groove. Large Reel |
| 32 | M9E1CVM0000 | 24mm x 4mm Tape Feeder. Emboss. W24*1P.Large Reel |
| 33 | M9E1DVM0000 | 24mm x 4mm Tape Feeder. Emboss. W24*1P.Deep Groove. Large Reel |
| 34 | M9E2CVM0000 | 24mm x 8mm Tape Feeder. Emboss. W24*2P.Large Reel |
| 35 | M9E2DVM0000 | 24mm x 8mm Tape Feeder. Emboss. W24*2P.Deep Groove. Large Reel |
| 36 | M9E3CVM0000 | 24mm x 12mm Tape Feeder. Emboss. W24*3P.Large Reel |
| 37 | M9E3DVM0000 | 24mm x 12mm Tape Feeder. Emboss. W24*3P.Deep Groove. Large Reel |
| 38 | M9E4CVM0000 | 24mm x 16mm Tape Feeder. Emboss. W24*4P.Large Reel |
| 39 | M9E4DVM0000 | 24mm x 16mm Tape Feeder. Emboss. W24*4P.Deep Groove. Large Reel |
| 40 | M9E5CVM0000 | 24mm x 20mm Tape Feeder. Emboss. W24*5P.Large Reel |
| 41 | M9E5DVM0000 | 24mm x 20mm Tape Feeder. Emboss. W24*5P.Deep Groove. Large Reel |
| 42 | M9E6CVM0000 | 24mm x 24mm Tape Feeder. Emboss. W24*6P.Large Reel |
| 43 | M9E6DVM0000 | 24mm x 24mm Tape Feeder. Emboss. W24*6P.Deep Groove. Large Reel |
| 44 | M9F3CVM0000 | 32mm x 12mm Tape Feeder. Emboss. W32*3P.Large Reel |
| 45 | M9F3DVM0000 | 32mm x 12mm Tape Feeder. Emboss. W32*3P.Deep Groove. Large Reel |
| 46 | M9F4CVM0000 | 32mm x 16mm Tape Feeder. Emboss. W32*4P.Large Reel |
| 47 | M9F4DVM0000 | 32mm x 16mm Tape Feeder. Emboss. W32*4P.Deep Groove. Large Reel |
| 48 | M9F6CVM0000 | 32mm x 24mm Tape Feeder. Emboss. W32*6P.Large Reel |
| 49 | M9F6DVM0000 | 32mm x 24mm Tape Feeder. Emboss. W32*6P.Deep Groove. Large Reel |
| 50 | M9H2CVM0000 | 44mm x 8mm Tape Feeder. Emboss. W44*2P.Large Reel |
| 51 | M9H2DVM0000 | 44mm x 8mm Tape Feeder. Emboss. W44*2P.Deep Groove. Large Reel |
| 52 | M9H3CVM0000 | 44mm x 12mm Tape Feeder. Emboss. W44*3P.Large Reel |
| 53 | M9H3DVM0000 | 44mm x 12mm Tape Feeder. Emboss. W44*3P.Deep Groove. Large Reel |
| 54 | M9H4CVM0000 | 44mm x 16mm Tape Feeder. Emboss. W44*4P.Large Reel |
| 55 | M9H4DVM0000 | 44mm x 16mm Tape Feeder. Emboss. W44*4P.Deep Groove. Large Reel |
| 56 | M9H5CVM0000 | 44mm x 20mm Tape Feeder. Emboss. W44*5P.Large Reel |
| 57 | M9H5DVM0000 | 44mm x 20mm Tape Feeder. Emboss. W44*5P.Deep Groove. Large Reel |
| 58 | M9H6CVM0000 | 44mm x 24mm Tape Feeder. Emboss. W44*6P.Large Reel |
| 59 | M9H6DVM0000 | 44mm x 24mm Tape Feeder. Emboss. W44*6P.Deep Groove. Large Reel |
| 60 | M9H8CVM0000 | 44mm x 32mm Tape Feeder. Emboss. W44*8P.Large Reel |
| 61 | M9H8DVM0000 | 44mm x 32mm Tape Feeder. Emboss. W44*8P.Deep Groove. Large Reel |
| 62 | M9H9CVM0000 | 44mm x 36mm Tape Feeder. Emboss. W44*9P.Large Reel |
| 63 | M9H9DVM0000 | 44mm x 36mm Tape Feeder. Emboss. W44*9P.Deep Groove. Large Reel |
| 64 | M9J2DVM0000 | 56mm x 8mm Tape Feeder. Emboss. W56*2P.Deep Groove. Large Reel |
| 65 | M9J3DVM0000 | 56mm x 12mm Tape Feeder. Emboss. W56*3P.Deep Groove. Large Reel |
| 66 | M9J4DVM0000 | 56mm x 16mm Tape Feeder. Emboss. W56*4P.Deep Groove. Large Reel |
| 67 | M9J5DVM0000 | 56mm x 20mm Tape Feeder. Emboss. W56*5P.Deep Groove. Large Reel |
| 68 | M9J6DVM0000 | 56mm x 24mm Tape Feeder. Emboss. W56*6P.Deep Groove. Large Reel |
| 69 | M9J8DVM0000 | 56mm x 32mm Tape Feeder. Emboss. W56*8P.Deep Groove. Large Reel |
| 70 | M9J9DVM0000 | 56mm x 36mm Tape Feeder. Emboss. W56*9P.Deep Groove. Large Reel |
Panasonic/KME/Panasert CM120-MU CM20F-M CM201 CM202 CM301 M9 Type Adhesive Tape Feeder
| No. | Part No. | Unit Name / Part Name |
|---|---|---|
| 1 | M9G3CVM0000 | 32mm x 12mm Tape Feeder. Adhesive. W32*3P.Large Reel |
Panasonic/KME/Panasert CM120-MU CM20F-M CM201 CM202 CM301 M9 Tpye Double Tape Feeder
| No. | Part No. | Unit Name / Part Name |
|---|---|---|
| 1 | M9A1CWM0000 | 8mm x 4mm Tape Feeder. Emboss. W8*1P. Wide.Double Reel |
| 2 | M9A1NWM0000 | 8mm x 4mm Tape Feeder. Emboss. W8*1P. Double Reel |
| 3 | M9A5NWM0000 | 8mm x 2mm Tape Feeder. Emboss. W8*0.5P. Double Reel |
The Panasonic KME Panasert CM120-MU CM20F-M CM201 CM202 CM301 Electronic Component Mounting Equipment M9 Type Feeder 32x12mm Emboss Adhesive Feeder 3P Large Reel M9G3CVM0000 (SKU: M9G3CVM0000) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive CM120 CM20/201/202/301 SMT Feeder, Panasonic SMT Spare Parts, Thru-hole Parts, SMD Embossed Feeders , SMD Feeders Sort by Size, SMD Tape Feeders, SMT Feeders – 32x12mm W32P12, SMT Feeders Sort by Type inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use Panasonic KME Panasert CM120-MU CM20F-M CM201 CM202 CM301 Electronic Component Mounting Equipment M9 Type Feeder 32x12mm Emboss Adhesive Feeder 3P Large Reel M9G3CVM0000?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
