What is FUJI CP6 Series SMT SMD Nozzle for CP-6-09 CP-65E-06 CP-65-08 CP-606-10JE CP-643E-05 CP-642ME-05 CP-642E-07 CP-642(08JE) CP-643E-05JE CP-642-08 CP-643ME-03?
Looking for FUJI CP6 Series SMT SMD Nozzle for CP-6-09 CP-65E-06 CP-65-08 CP-606-10JE CP-643E-05 CP-642ME-05 CP-642E-07 CP-642(08JE) CP-643E-05JE CP-642-08 CP-643ME-03? This SMT spare part (SKU: CP-643ME-03, Brand: FUJI) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.
FUJI CP-6-09
FUJI CP-65E-06
FUJI CP-65-08
FUJI CP-606-10JE
FUJI CP-643E-05
FUJI CP-642ME-05
FUJI CP-642E-07
FUJI CP-642(08JE)
FUJI CP-643E-05JE
FUJI CP-642-08
FUJI CP-643ME-03
| Lno. | Part No. | QTY | Description | Rating | remarks |
|---|---|---|---|---|---|

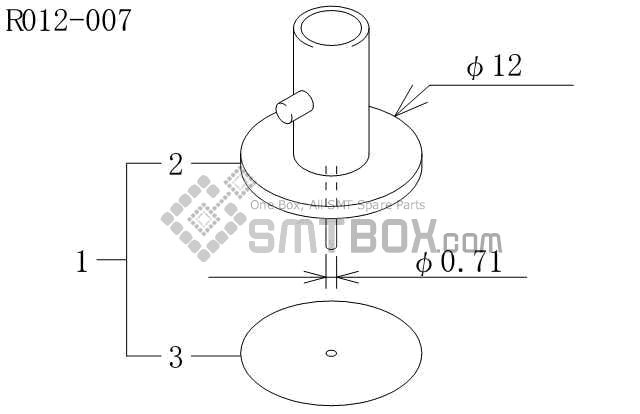

| 1 | AWPH9514 | 20 | NOZZLE ASSY | R012-007 | |
| 2 | AWPH9011 | 20 | NOZZLE ASSY ,NO SEAL | R012-007 | |
| 3 | WPH8291 | 20 | SEAL | R012-007 | |

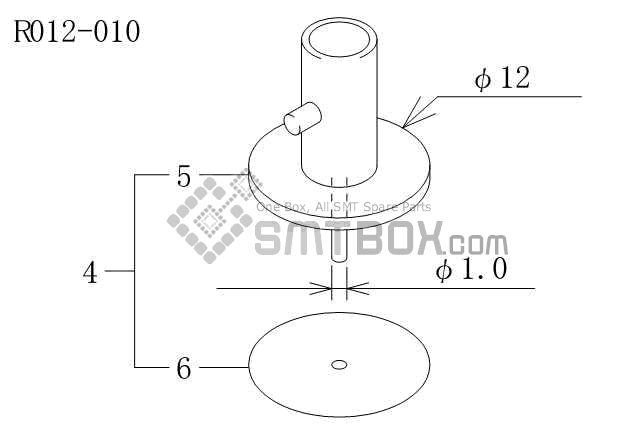

| 4 | AWPH9524 | 20 | NOZZLE ASSY | R012-010 | |
| 5 | AWPH9021 | 20 | NOZZLE ASSY ,NO SEAL | R012-010 | |
| 6 | WPH8301 | 20 | SEAL | R012-010 | |

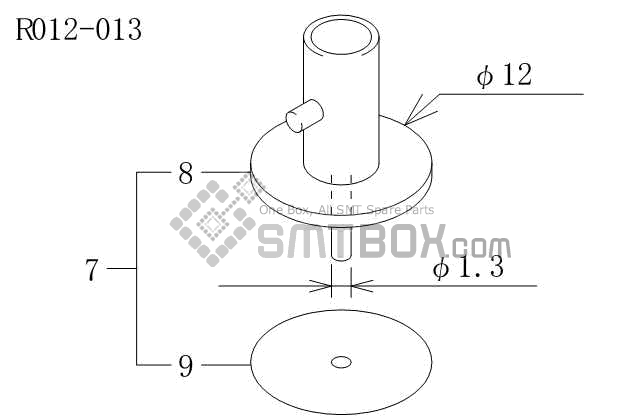

| 7 | AWPH9534 | 20 | NOZZLE ASSY | R012-013 | |
| 8 | AWPH9031 | 20 | NOZZLE ASSY ,NO SEAL | R012-013 | |
| 9 | PH8311 | 20 | SEAL | R012-013 | |

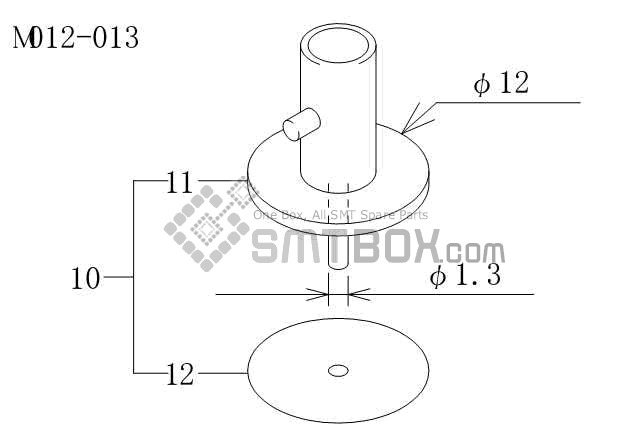

| 10 | AWPH9545 | 20 | NOZZLE ASSY | M012-013 | |
| 11 | AWPH9088 | 20 | NOZZLE ASSY ,NO SEAL | M012-013 | |
| 12 | WPH8311 | 20 | SEAL | M012-013 | |

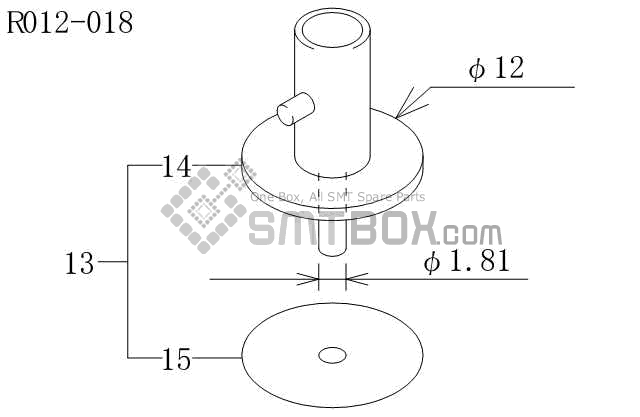

| 13 | AWPH9554 | 20 | NOZZLE ASSY | R012-018 | |
| 14 | AWPH9077 | 20 | NOZZLE ASSY ,NO SEAL | R012-018 | |
| 15 | WPH8320 | 20 | SEAL | R012-018 | |

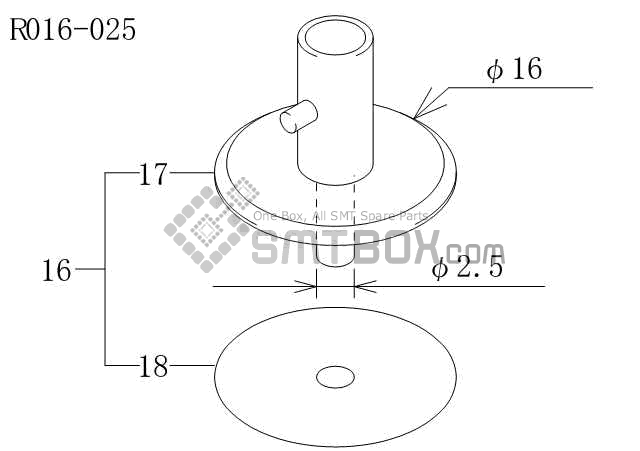

| 16 | AWPH9563 | 20 | NOZZLE ASSY | R016-025 | |
| 17 | AWPH9125 | 20 | NOZZLE ASSY ,NO SEAL | R016-025 | |
| 18 | WPH8201 | 20 | SEAL | R016-025 | |

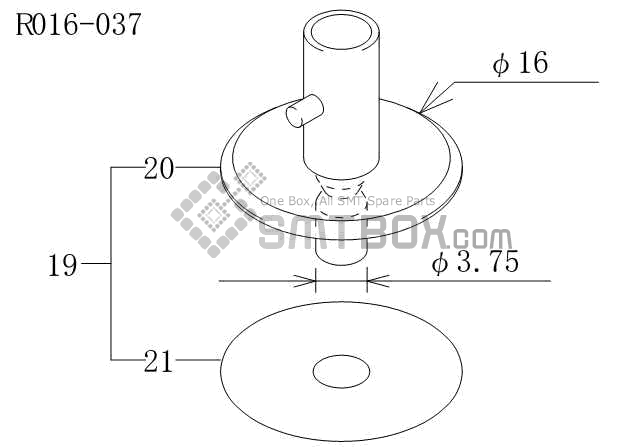

| 19 | AWPH9572 | 20 | NOZZLE ASSY | R016-037 | |
| 20 | AWPH9135 | 20 | NOZZLE ASSY ,NO SEAL | R016-037 | |
| 21 | WPH8211 | 20 | SEAL | R016-037 | |

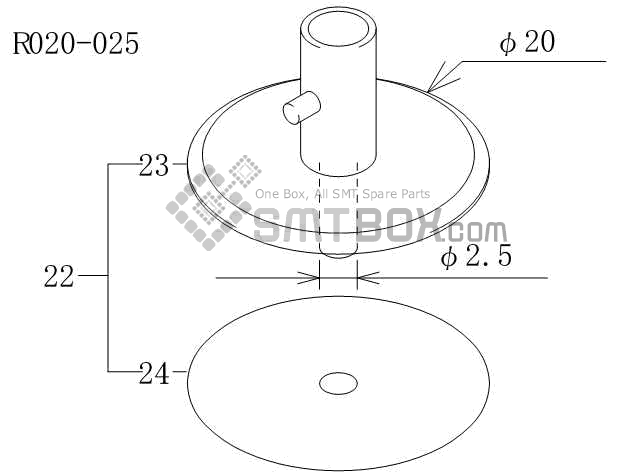

| 22 | AWPH9583 | 20 | NOZZLE ASSY | R020-025 | |
| 23 | AWPH9041 | 20 | NOZZLE ASSY ,NO SEAL | R020-025 | |
| 24 | WPH8081 | 20 | SEAL | R020-025 | |

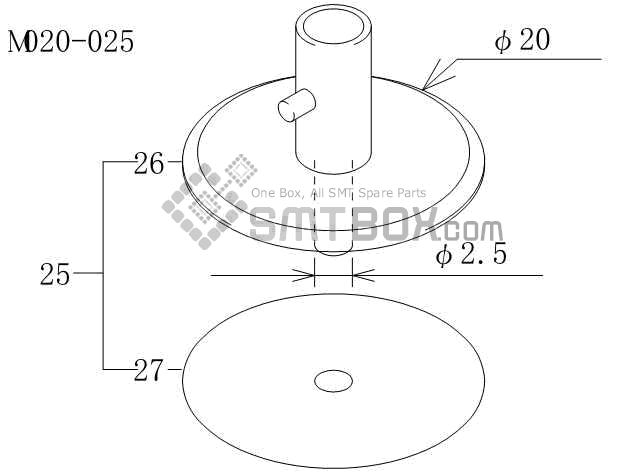

| 25 | AWPH9593 | 20 | NOZZLE ASSY | M020-025 | |
| 26 | AWPH9098 | 20 | NOZZLE ASSY ,NO SEAL | M020-025 | |
| 27 | WPH8081 | 20 | SEAL | M020-025 | |

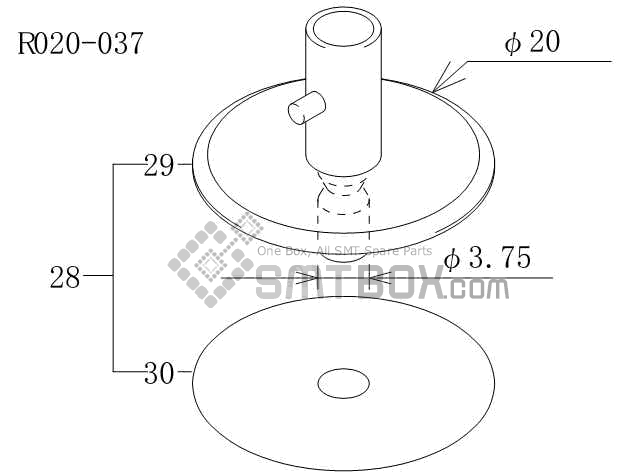

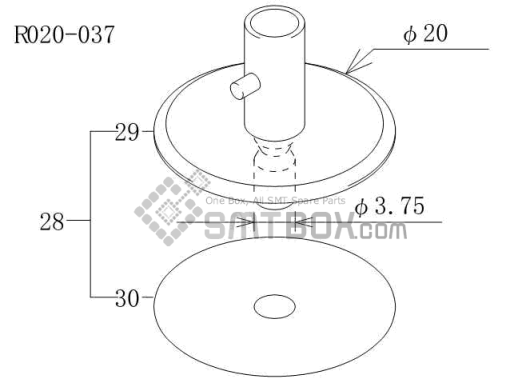

| 28 | AWPH9602 | 20 | NOZZLE ASSY | R020-037 | |
| 29 | AWPH9051 | 20 | NOZZLE ASSY ,NO SEAL | R020-037 | |
| 30 | WPH8121 | 20 | SEAL | R020-037 | |

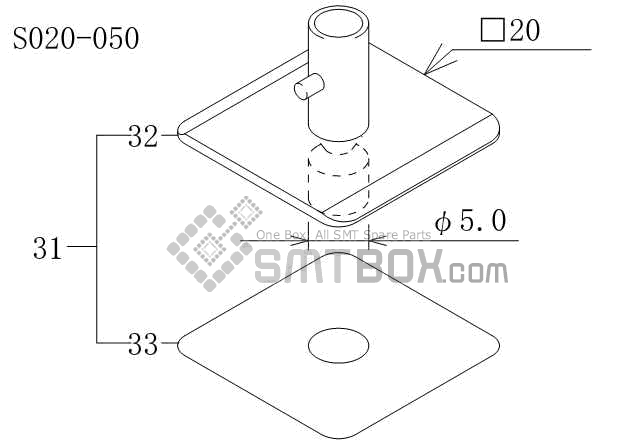

| 31 | AWPH9612 | 20 | NOZZLE ASSY | S020-050 | |
| 32 | AWPH9060 | 20 | NOZZLE ASSY ,NO SEAL | S020-050 | |
| 33 | WPH8101 | 20 | SEAL | S020-050 | |

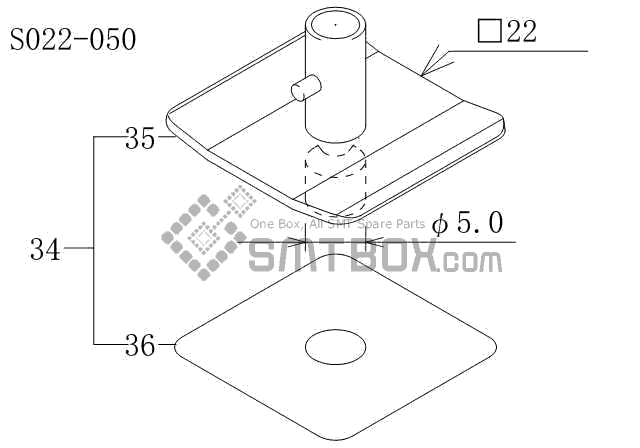

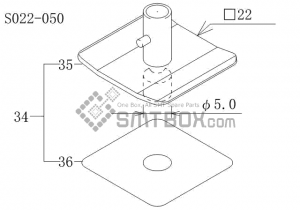

| 34 | AWPH9662 | 20 | NOZZLE ASSY | S022-050 | |
| 35 | AWPH9154 | 20 | NOZZLE ASSY ,NO SEAL | S022-050 | |
| 36 | WPH8231 | 20 | SEAL | S022-050 | |

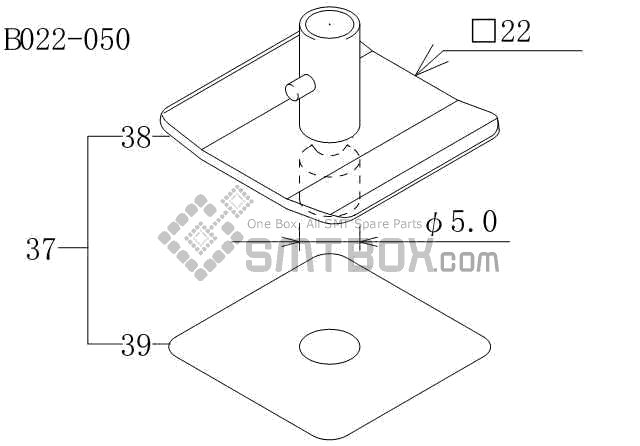

| 37 | AWPH9672 | 20 | NOZZLE ASSY | B022-050 | |
| 38 | AWPH9154 | 20 | NOZZLE ASSY ,NO SEAL | B022-050 | |
| 39 | WPH8221 | 20 | SEAL | B022-050 | |

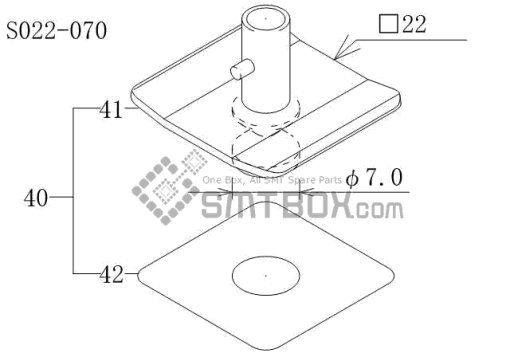

| 40 | AWPH9682 | 20 | NOZZLE ASSY | S022-070 | |
| 41 | AWPH9164 | 20 | NOZZLE ASSY ,NO SEAL | S022-070 | |
| 42 | WPH8181 | 20 | SEAL | S022-070 | |

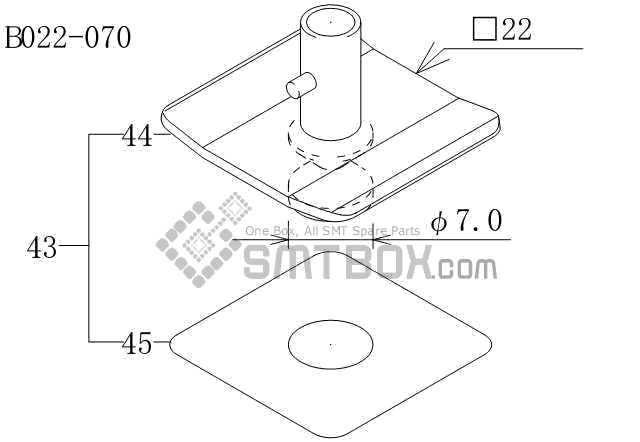

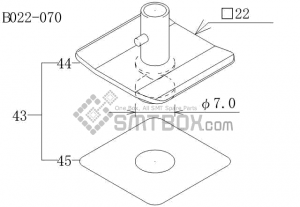

| 43 | AWPH9694 | 20 | NOZZLE ASSY | B022-070 | |
| 44 | AWPH9176 | 20 | NOZZLE ASSY ,NO SEAL | B022-070 | |
| 45 | WPH8171 | 20 | SEAL | B022-070 |
FUJI CP-643ME-03
| Lno. | Part No. | QTY | Description | Rating | remarks |
|---|---|---|---|---|---|

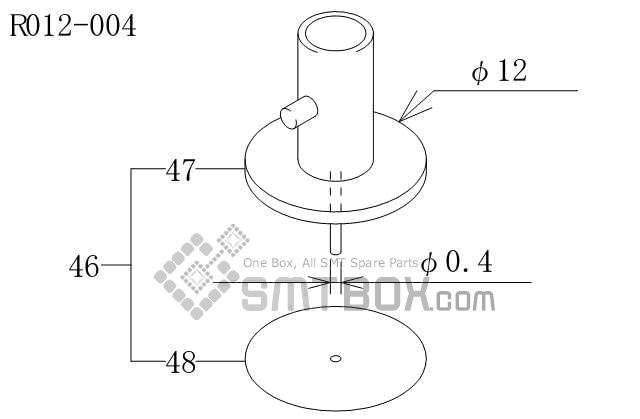

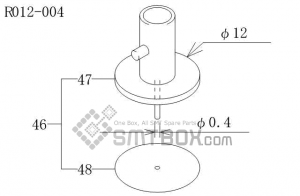

| 46 | AWPH9702 | 20 | NOZZLE | R012-004 | For 0603 |
| 47 | AWPH9181 | 20 | NOZZLE ,NO SEAL | R012-004 | For 0603 |
| 48 | WPH8331 | 20 | SEAL | R012-004 | For 0603 |

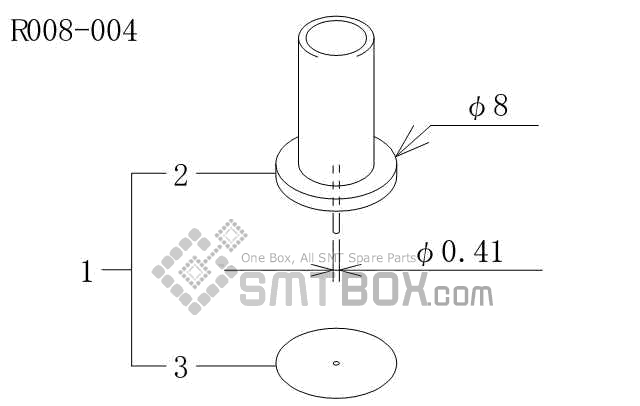

| 49 | AWPH9710 | 20 | NOZZLE | R008-004 | For 0603 |
| 50 | AWPH9190 | 20 | NOZZLE ,NO SEAL | R008-004 | For 0603 |
| 51 | WPH8380 | 20 | SEAL | R008-004 | For 0603 |
FUJI CP-65E-06
FUJI CP-65-08
| Lno. | Part No. | QTY | Description | Rating | remarks |
|---|---|---|---|---|---|

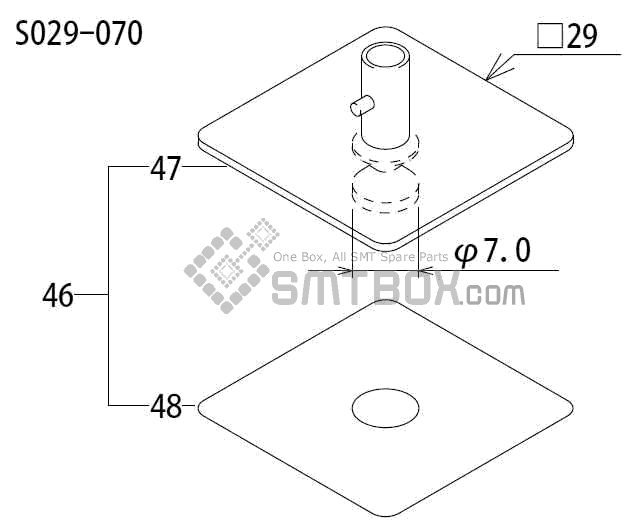

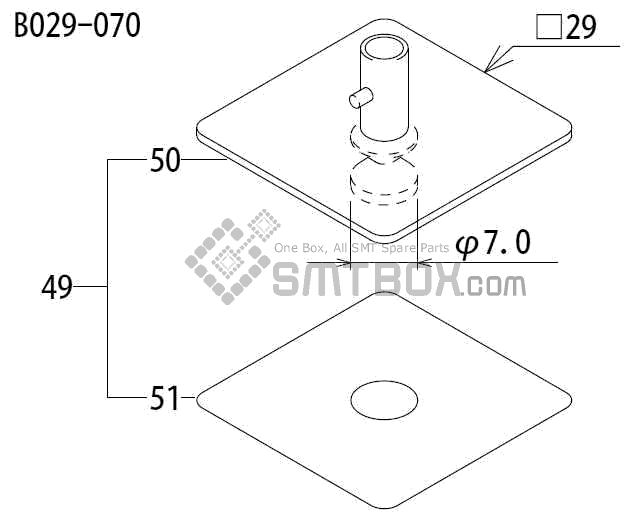

| 52 | AYPH9510 | 20 | NOZZLE ASSY | S029-070 | |
| 53 | AYPH9020 | 20 | NOZZLE ASSY ,NO SEAL | S029-070 | |
| 54 | YPH8060 | 20 | SEAL | S029-070 | |
| 55 | AYPH9520 | 20 | NOZZLE ASSY | B029-070 | |
| 56 | AYPH9140 | 20 | NOZZLE ASSY ,NO SEAL | B029-070 | |
| 57 | YPH8580 | 20 | SEAL | B029-070 | |

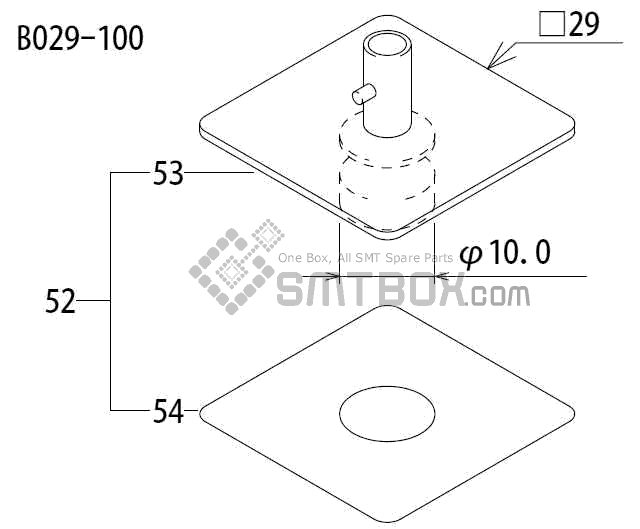

| 58 | AYPH9530 | 20 | NOZZLE ASSY | B029-100 | |
| 59 | AYPH9130 | 20 | NOZZLE ASSY ,NO SEAL | B029-100 | |
| 60 | YPH8570 | 20 | NOZZLE ASSY | B029-100 |
FUJI CP-606-10JE
| Lno. | Part No. | QTY | Description | Rating | remarks |
|---|---|---|---|---|---|

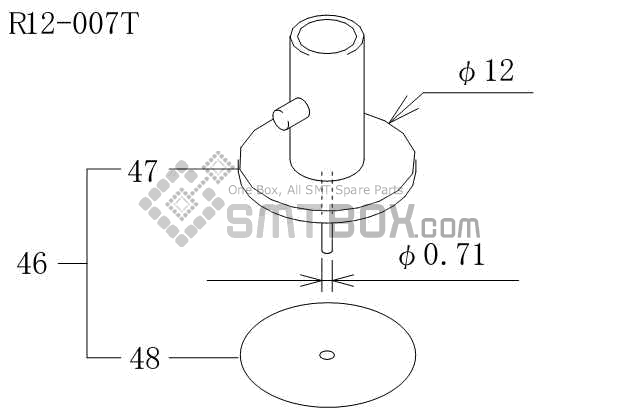

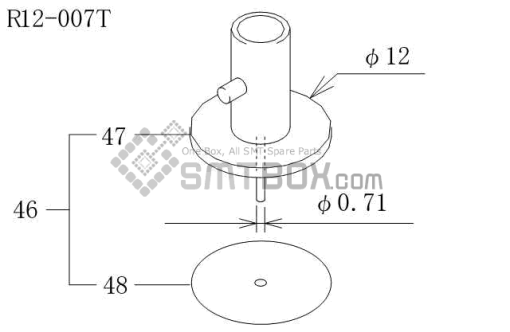

| 61 | AWPH9733 | 20 | NOZZLE ASSY | R12-007T | |
| 62 | AWPH9213 | 20 | NOZZLE ASSY ,NO SEAL | R12-007T | |
| 63 | WPH8311 | 20 | SEAL | R12-007T |
FUJI CP-643E-05
FUJI CP-642ME-05
FUJI CP-642E-07
FUJI CP-642(08JE)
FUJI CP-643E-05JE
FUJI CP-642-08

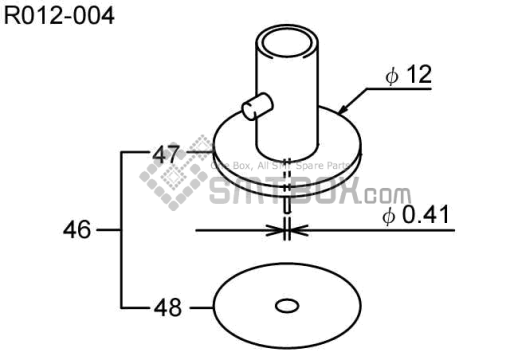

| Lno. | Part No. | QTY | Description | Rating | remarks |
|---|---|---|---|---|---|
| 64 | AWPH9701 | 20 | NOZZLE ASSY | R012-004 | |
| 65 | AWPH9181 | 20 | NOZZLE ASSY ,NO SEAL | R012-004 | |
| 66 | WPH8330 | 20 | SEAL | R012-004 |
The FUJI CP6 Series SMT SMD Nozzle for CP-6-09 CP-65E-06 CP-65-08 CP-606-10JE CP-643E-05 CP-642ME-05 CP-642E-07 CP-642(08JE) CP-643E-05JE CP-642-08 CP-643ME-03 (SKU: CP-643ME-03) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive FUJI SMD Nozzle, FUJI SMD Spare Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use FUJI CP6 Series SMT SMD Nozzle for CP-6-09 CP-65E-06 CP-65-08 CP-606-10JE CP-643E-05 CP-642ME-05 CP-642E-07 CP-642(08JE) CP-643E-05JE CP-642-08 CP-643ME-03?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
