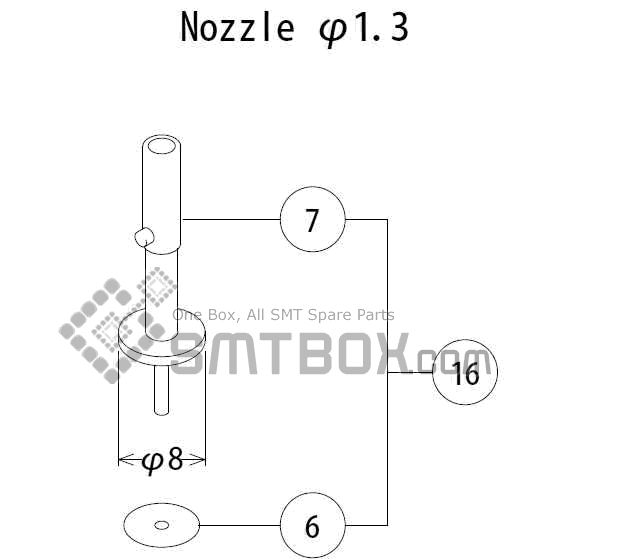

Fuji Qp 132E 07 Nozzle Part NO.ACGPN8518 Rating 1.3 Side A

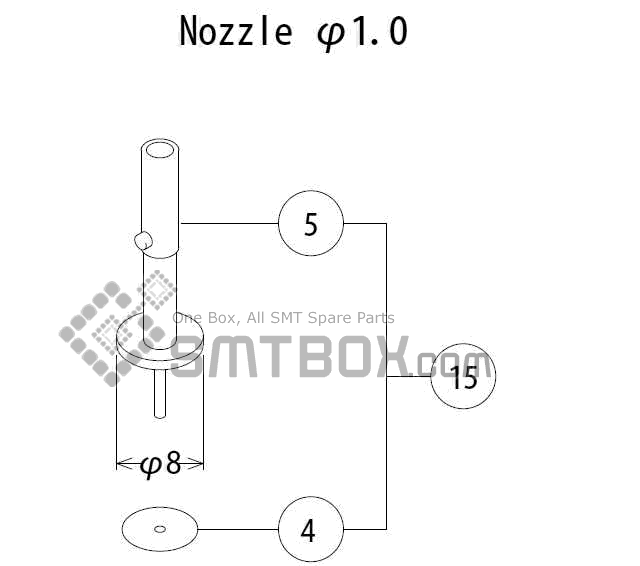

Fuji Qp 132E 07 Nozzle Part NO.ACGPN8528 Rating 1.0 Side A

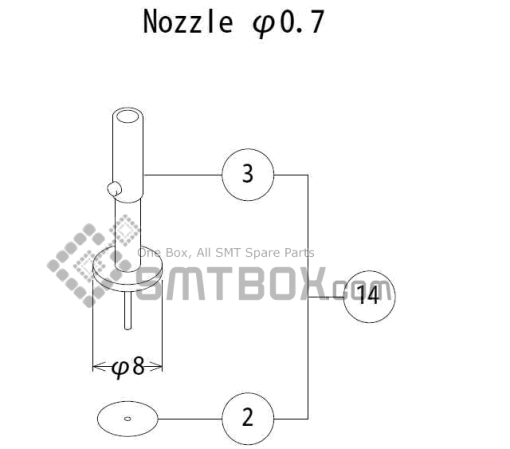

Fuji Qp 132E 07 Nozzle Part NO.ACGPN8538 Rating 0.7 Side A

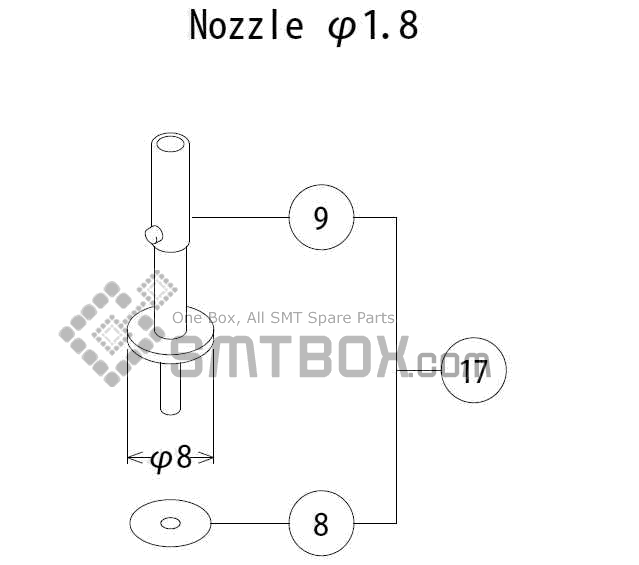

Fuji Qp 132E 07 Nozzle Part NO.ACGPN8548 Rating 1.8 Side A

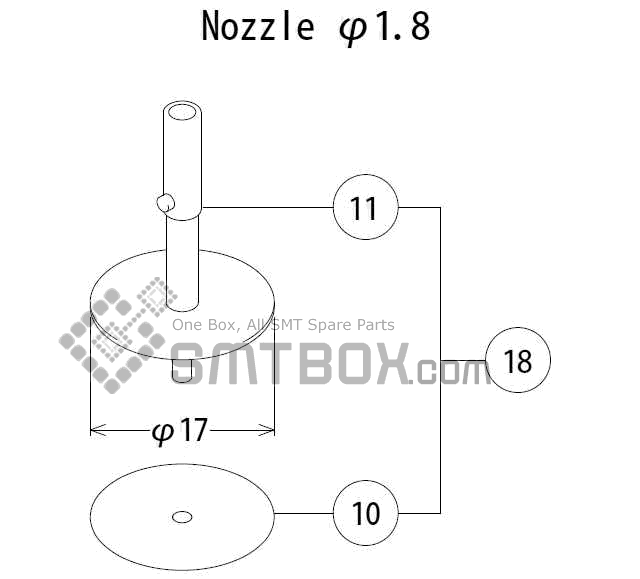

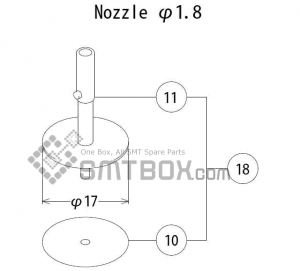

Fuji Qp 132E 07 Nozzle Part NO.ACGPN8617 Rating 1.8 Side A

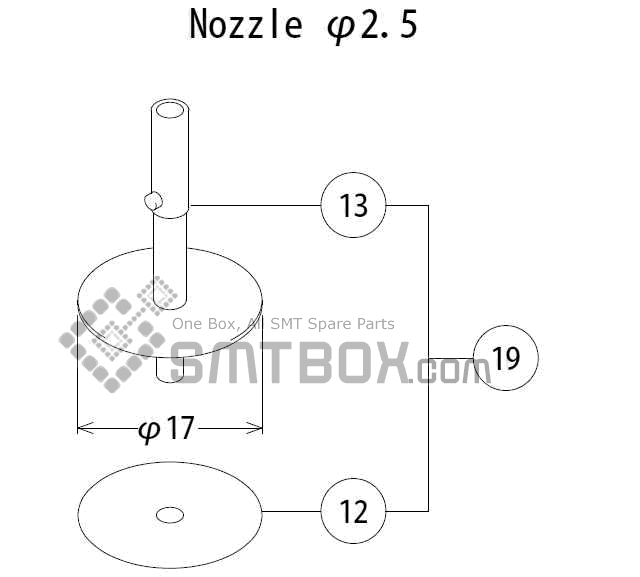

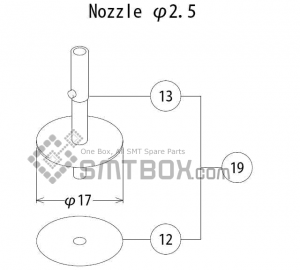

Fuji Qp 132E 07 Nozzle Part NO.ACGPN8627 Rating 2.5 Side A

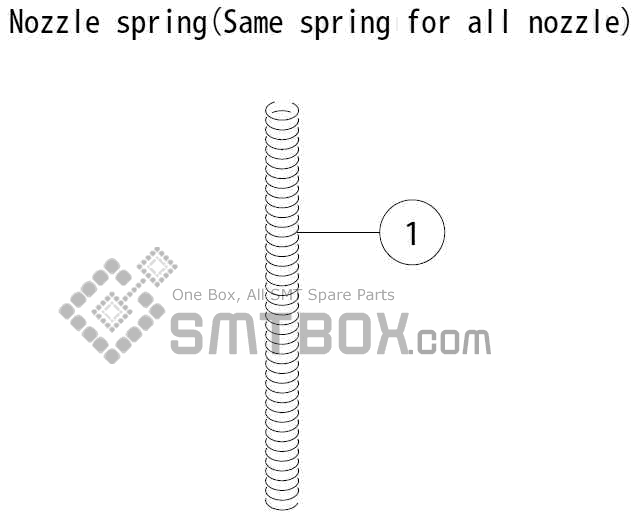

Fuji Qp 132E 07 Nozzle Part NO.CGPN0022 Side A

FUJI QP1 QPI QP132 QP132E Series SMT SMD Nozzle

Name: FUJI QP1 QPI QP132 QP132E Series SMT SMD Nozzle
Brand: FUJI
SKU: QP132E

Original and Brand New SMT SMD Nozzle, Made in Japan, Made by FUJI Machine MFG, For FUJI QP132 QP132E SMD Pick and Place Mounter System.

Online Inquiry

SMTBOX B2B Trust Guarantees

DHL/UPS Express Shipping

Wire & PayPal Secure

Technical Specifications

Part Number (SKU)

QP132E

Manufacturer (Brand)

FUJI

Frequently Sourced Together

What is FUJI QP1 QPI QP132 QP132E Series SMT SMD Nozzle?

Direct Answer / Quick Facts:

Looking for FUJI QP1 QPI QP132 QP132E Series SMT SMD Nozzle? This SMT spare part (SKU: QP132E, Brand: FUJI) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.

No.	Part.No.	QTY	Description	Rating	Remarks
1	CGPN0022	96	SPRING	N/A	Applicable to all nozzle
2	CGPN0330	64	SEAL	N/A	N/A
3	ACGPN8036	64	NOZZLE ASSY	N/A	φ0.7-φ8
4	CGPN0230	64	SEAL	N/A	N/A
5	ACGPN8026	64	NOZZLE ASSY	N/A	φ1.0-φ8
6	CGPN0130	64	SEAL	N/A	N/A
7	ACGPN8016	64	NOZZLE ASSY	N/A	φ1.3-φ8
8	CGPN0430	64	SEAL	N/A	N/A
9	ACGPN8046	64	NOZZLE ASSY	N/A	φ1.8-φ8
10	CGPN1021	32	SEAL	N/A	N/A
11	ACGPN8116	32	NOZZLE ASSY	N/A	φ1.8-φ17
12	CGPN1121	32	SEAL	N/A	N/A
13	ACGPN8126	32	NOZZLE ASSY	N/A	φ2.5-φ17
14	ACGPN8538	64	NOZZLE ASSY	N/A	With SEAL
15	ACGPN8528	64	NOZZLE ASSY	N/A	With SEAL
16	ACGPN8518	64	NOZZLE ASSY	N/A	With SEAL
17	ACGPN8548	64	NOZZLE ASSY	N/A	With SEAL
18	ACGPN8617	32	NOZZLE ASSY	N/A	With SEAL
19	ACGPN8627	32	NOZZLE ASSY	N/A	With SEAL
20	ACGPN8200	1	FILTER KIT	N/A	CGPN0030

The FUJI QP1 QPI QP132 QP132E Series SMT SMD Nozzle (SKU: QP132E) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive FUJI SMD Nozzle, FUJI SMD Spare Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.

How to use FUJI QP1 QPI QP132 QP132E Series SMT SMD Nozzle?

For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.

Power down your mounter and disconnect the vacuum line.
Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
Carefully align the new component and tighten to the manufacturer's torque specifications.
Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
