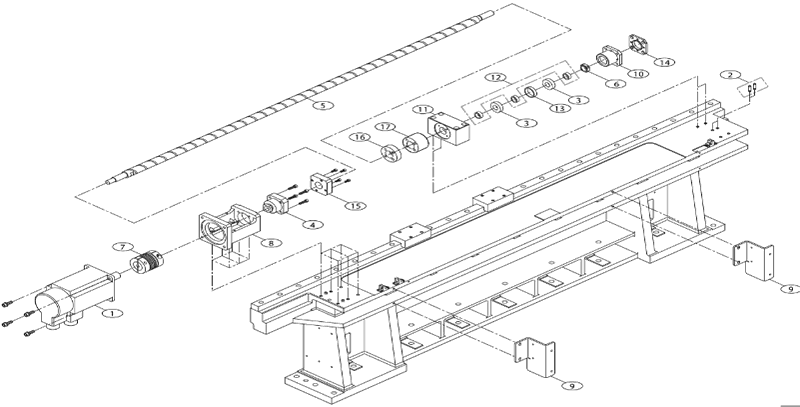

Y-Ball Screw Assembly Of Hanwha Samsung Techwin SM421 Electronic Part SMT Mounter

#1. P/N: J3108064A | Part Name: SERVO MOTOR | Qty: 2 | Type: MSMA102P1C01

#2. P/N: J6061601000 | Part Name: DOWEL PIN | Qty: 4 | Type: MS6-10

#3. P/N: J66011036A | Part Name: ANGULAR_CONTACT_BALL_BEARING | Qty: 4 | Type: 7002CTYNDBMP5

#4. P/N: J6601124A | Part Name: SUPPORT UNIT | Qty: 2 | Type: FK-15

#5. P/N: J6606036A | Part Name: BALL SCREW | Qty: 2 | Type: W2011P-3SS-C5T30

#6. P/N: J6608003A | Part Name: BEARING NUT | Qty: 2 | Type: RN15

#7. P/N: J66121007A | Part Name: COUPLING | Qty: 2 | Type: SFC 050DA2 12B-19B(TYPE A)

#8. P/N: J70541005A | Part Name: Y_MOTOR_BLOCK | Qty: 2

#9. P/N: J70541115A | Part Name: COVER_BKT | Qty: 2

#10. P/N: J70541119A | Part Name: BRG_SUPPORT_X | Qty: 2

#11. P/N: J70541120A | Part Name: BS_REAR_SUPPORT | Qty: 2

#12. P/N: J70541121A | Part Name: BRG_INNER_SPACER | Qty: 6

#13. P/N: J70541122A | Part Name: BRG_OUTER_SPACER | Qty: 2

#14. P/N: J70541123A | Part Name: BEARING_COVER_Y | Qty: 2

#15. P/N: J72541006A | Part Name: STOPPER_Y_BALL_SCREW_FRONT | Qty: 2

#16. P/N: J72541012A | Part Name: STOPPER_Y_BALL_SCREW | Qty: 2

#17. P/N: J71541087A | Part Name: STOPPER_EXT_Y_BALL_SCREW | Qty: 1
