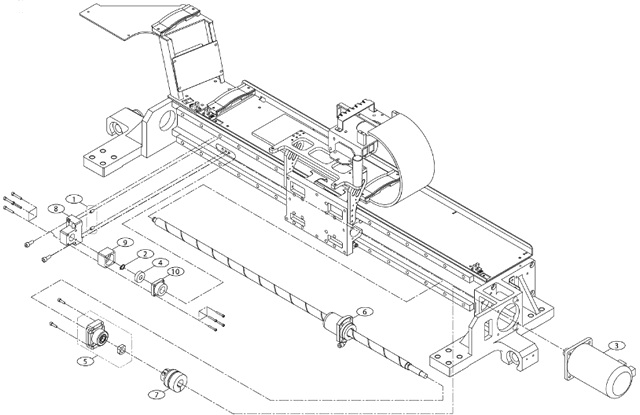

X-Ball Screw Assembly Of Hanwha Samsung SM421 SMT Machine


#1. P/N: J1300502 | Part Name: DOWEL PIN | Type: MS5-10

#2. P/N: J1300517 | Part Name: C-RING(SHAFT) | Type: DIA10

#3. P/N: J3108063A | Part Name: SERVO MOTOR | Type: MSMA082P1A01

#4. P/N: J6601008A | Part Name: BALL BEARING | Type: 6000ZZ

#5. P/N: J66011017A | Part Name: SUPPORT_UNIT | Type: FK12 MP5

#6. P/N: J66061014A | Part Name: X-BALL_SCREW | Type: HG1632QS-HEZR-0874*0801-C5F

#7. P/N: J66121006A | Part Name: COUPLING | Type: SFC 040DA2 10B-19B(TYPE B)

#8. P/N: J71541009A | Part Name: BRG_SUPPORT-X

#9. P/N: J71541010A | Part Name: BRG_HOUSING-X

#10. P/N: J72541011A | Part Name: CUSHION_X_REAR | Type: J72541005A
