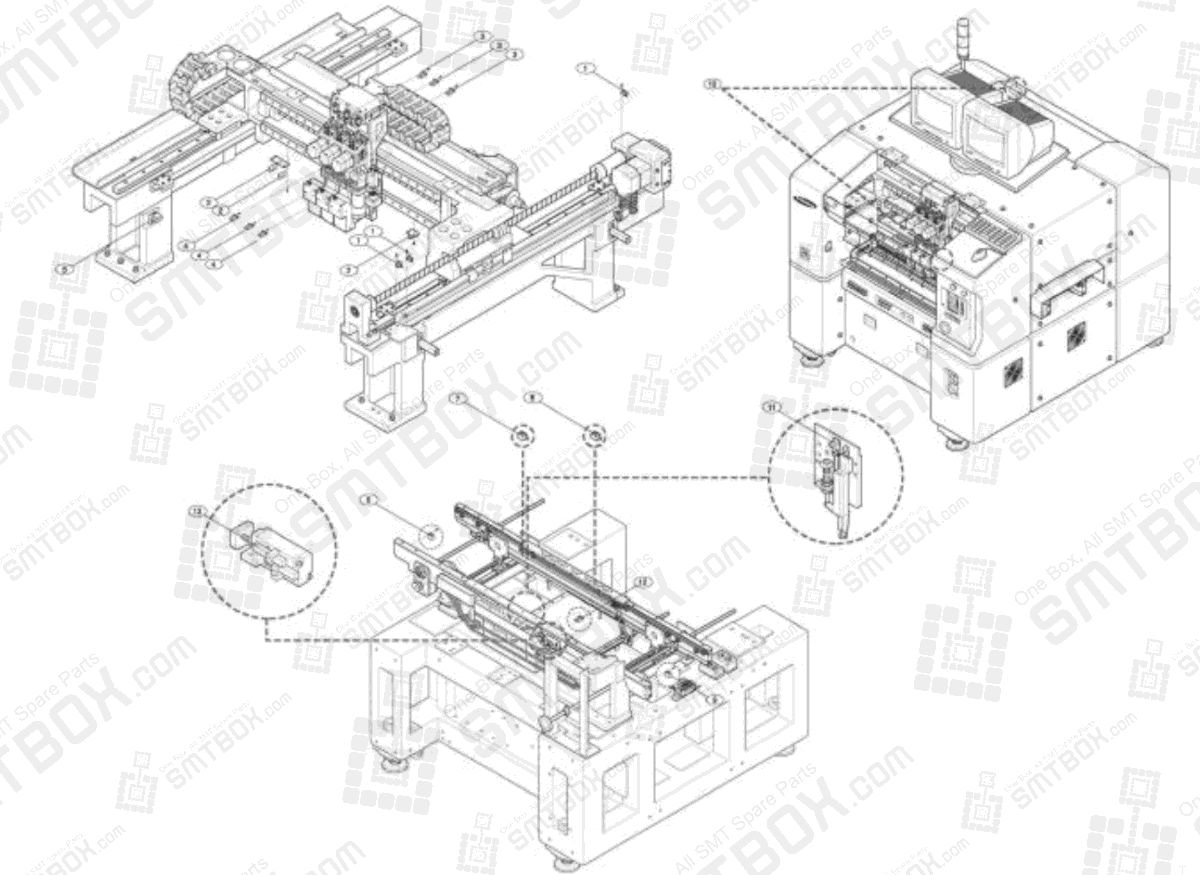

#1 P/N: J1300484 | Limit Sensor Ee-Sx671 | Qty: 3 | Remarks: Y-Axis Home/Limit
#2 P/N: J1300483 | Limit Sensor Ee-Sx672 | Qty: 3 | Remarks: X-Axis Home/Limit
#3 P/N: J1300883 | Photo Sensor(Z -Axis) Ee-Sx673 | Qty: 3 | Remarks: Z-Axis Home/Limit
#4 P/N: J1301268 | Photo Sensor(Theta-Axis) Ee-Sx674A(Omron) | Qty: 3 | Remarks: Theta Home
#5 P/N: J3211015A | Feeder Unlock Sensor E3T-St110-2M | Qty: 2 | Remarks: Feeder Unlock Check
#6 P/N: J3211032A | Photo Sensor Byd30-Ddt-S(Autonics) | Qty: 1 | Remarks: Check Pcb In
#7 P/N: J3211032A | Photo Sensor Byd30-Ddt-S(Autonics) | Qty: 1 | Remarks: Check Pcb Waiting
#8 P/N: J3211032A | Photo Sensor Byd30-Ddt-S(Autonics) | Qty: 1 | Remarks: Check Pcb Mounting
#9 P/N: J3211032A | Photo Sensor Byd30-Ddt-S(Autonics) | Qty: 1 | Remarks: Check Pcb Out
#10 P/N: J1301640 | Safety Door Switch D4Ds-2Afs | Qty: 2 | Remarks: Check Door Open
#11 P/N: J1301268 | Hole Fixer Sensor Ee-Sx674A(Omron) | Qty: 2 | Remarks: Check Pcb Hole Position
#12 P/N: J1301053 | Photo Sensor Ee-Sx670A | Qty: 2 | Remarks: Check Back Up Table Up/Down
#13 P/N: J2102104 | Anc Sensor Cable Ass’y Qa2-Fd03 | Qty: 1 | Remarks: Anc Sensor
