Sub – Mechanical Part List of SME 12mm Samsung Techwin SM DECAN Serials IT / NONIT SMT Feeder

SME Tape Feeder with 7 Inches Reel Holoder
SM DECAN NONIT 12mm TAPE FEEDER P/N: SBFB33100K
SM DECAN IT 12mm TAPE FEEDER P/N: SBFB33000K

Mechanical Part List of SME 12mm Samsung Techwin SM DECAN Serials IT NONIT SMT Feeder Sub 1

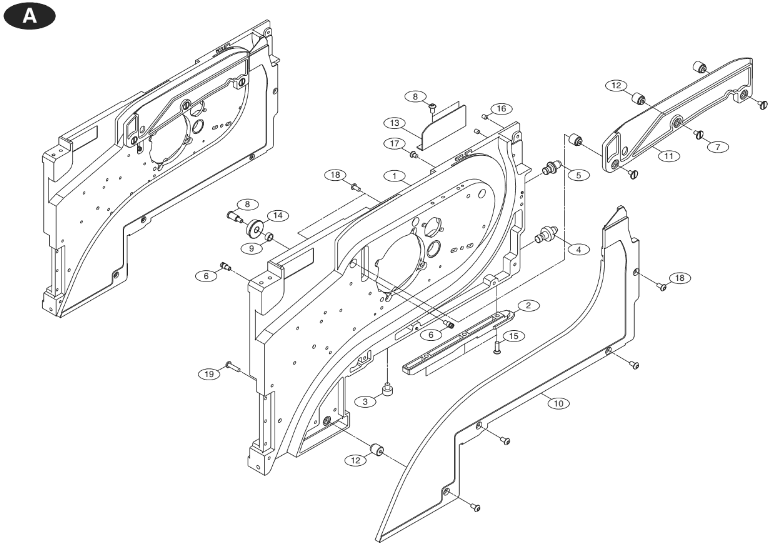

#A P/N: S90000001A | Part Name: MAIN FRAME ASSY

#1 P/N: S71000002A | Part Name: FEEDER MAIN BODY

#2 P/N: J70650978C | Part Name: INSTALL GUIDE

#3 P/N: S70000001A | Part Name: BTM LOC’ PIN

#4 P/N: J70650948B | Part Name: LOCATION FLANGE

#5 P/N: S70000002A | Part Name: FRONT GUIDE PIN

#6 P/N: S70000003A | Part Name: VINYL MOVING SPRING SHAFT 2 | Qty: 2

#7 P/N: S70000004A | Part Name: IDLE FIX BOLT | Qty: 3

#8 P/N: S70000005A | Part Name: TENSION ROLLER BOLT

#9 P/N: S70000006A | Part Name: TENSION ROLLER WASHER

#10 P/N: S71000004A | Part Name: SIDE FRAME BTM

#11 P/N: S71000005A | Part Name: SIDE FRAME TOP

#12 P/N: S70000007A | Part Name: FEEDER SPACER SHAFT-12 | Qty: 4

#13 P/N: S70000008A | Part Name: TAPE SUPPORT PLATE 2 – 12

#14 P/N: S66010003A | Part Name: BEARING

#15 P/N: S60060005A | Part Name: FHCS | Qty: 3

#16 P/N: S60100001A | Part Name: SET SCREW | Qty: 2

#17 P/N: S60060003A | Part Name: FHCS | Qty: 2

#18 P/N: S60050001A | Part Name: BHCS | Qty: 8

#19 P/N: S60050004A | Part Name: BHCS

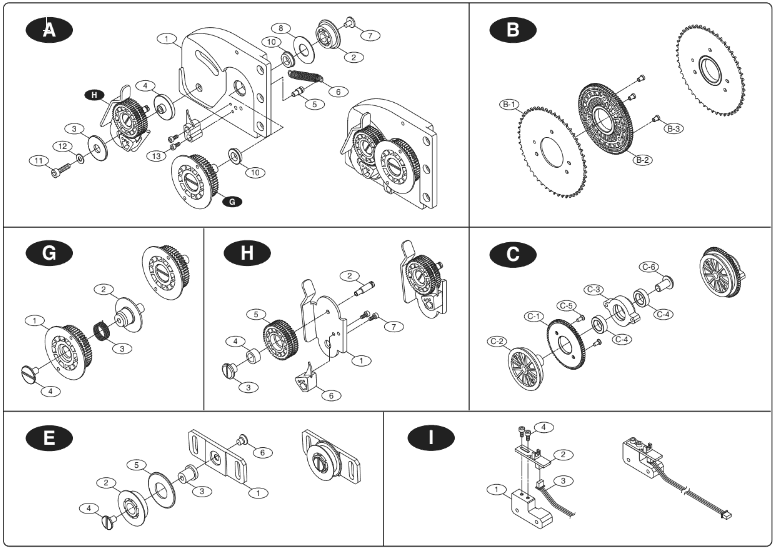

Mechanical Part List of SME 12mm Samsung Techwin SM DECAN Serials IT NONIT SMT Feeder Sub 2

#B P/N: S90000007A | Part Name: SPROCKET ASSY

#C P/N: S90000009A | Part Name: IDLE GEAR ASSY

#1 P/N: S70000114A | Part Name: IDLE GEAR

#2 P/N: S72000005A | Part Name: IDLE GEAR PULLEY

#3 P/N: S70000033A | Part Name: IDLE BEARING HOLDER

#4 P/N: S66010004A | Part Name: BEARING | Qty: 2

#5 P/N: S60060001A | Part Name: FHCS | Qty: 2

#6 P/N: S60050006A | Part Name: BHCS

#E P/N: S90000012A | Part Name: TENSION PULLEY ASSY

#1 P/N: S72000007A | Part Name: TENSION PULLEY BLOCK

#2 P/N: S72000008A | Part Name: TENSION PULLEY

#3 P/N: S70000035A | Part Name: TENSION PULLEY SHAFT

#4 P/N: S70000004A | Part Name: IDLE FIX BOLT

#5 P/N: S72000009A | Part Name: PULLEY FLANGE

#6 P/N: S60060007A | Part Name: FHCS

#F P/N: S90000013A | Part Name: VINYL DISCHARGE ASSY

#1 P/N: S72000010A | Part Name: DISCHARGE FRAME

#2 P/N: S72000011A | Part Name: VINYL FIX ROLLER PULLEY

#3 P/N: S70000037A | Part Name: SUPPORT CLAMP WASHER

#4 P/N: S70000038A | Part Name: MOVING HANDLE SUPPORT

#5 P/N: S70000003A | Part Name: VINYL MOVING SPRING SHAFT | Qty: 2

#6 P/N: S70000040A | Part Name: VINYL MOVING ROLLER SPRING

#7 P/N: S70000004A | Part Name: IDLE FIX BOLT

#8 P/N: S72000009A | Part Name: PULLEY FLANGE

#9 P/N: S72000013A | Part Name: VINYL SEPARATOR 1

#10 P/N: S66010005A | Part Name: BEARING | Qty: 2

#11 P/N: S60010002A | Part Name: SHCS

#12 P/N: S60420001A | Part Name: FLAT WASHER

#13 P/N: S60010001A | Part Name: SHCS | Qty: 2

#G P/N: S90000018A | Part Name: VINYL EXIT ROLLER ASSY

#1 P/N: S72000018A | Part Name: TORQUE LIMIT GEAR

#2 P/N: S70000042A | Part Name: TORQUE LIMIT SHAFT

#3 P/N: S70000043A | Part Name: TORQUE LIMIT SPRING

#4 P/N: S70000044A | Part Name: TORQUE LIMIT SHAFT BOLT

#H P/N: S90000023A | Part Name: VINYL EXIT MOVING ASSY

#1 P/N: S70000051A | Part Name: MOVING ROLLER HANDLE

#2 P/N: S70000052A | Part Name: VINYL MOVING SPRING SHAFT 1

#3 P/N: S70000053A | Part Name: VINYL MOVING ROLLER SHAFT

#4 P/N: S71000016A | Part Name: VINYL MOVING ROLLER SLEEVE

#5 P/N: S72000023A | Part Name: VINYL GEAR C_12

#6 P/N: S72000024A | Part Name: VINYL SEPARATOR | Qty: 2

#7 P/N: S60010001A | Part Name: SHCS | Qty: 2

#I P/N: S90000028A | Part Name: SPROCKET SENSOR ASSY

#1 P/N: S70000058A | Part Name: SPROCKET SENSOR HOLDER

#2 P/N: S32120001A | Part Name: SPROCKET SENSOR

#3 P/N: S91000001A | Part Name: SPROCKET SENSOR CABLE

#4 P/N: S60010001A | Part Name: SHCS | Qty: 2

#J P/N: J90651523A | Part Name: LOCKER ASSY

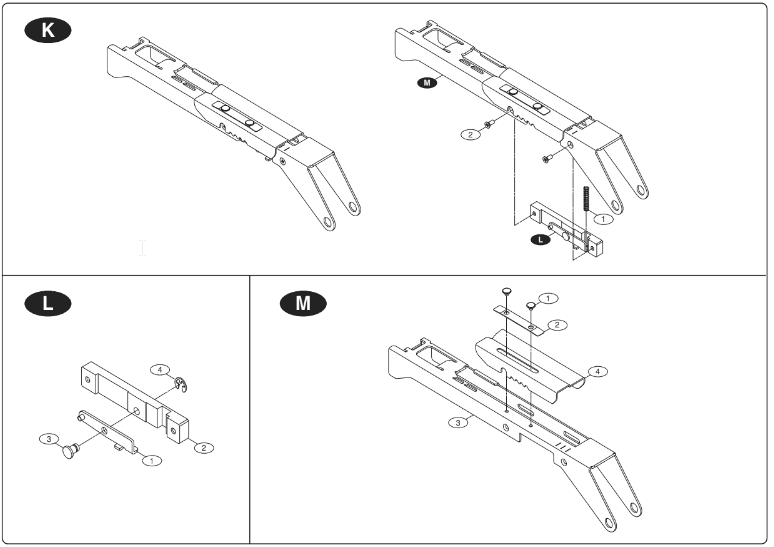

Mechanical Part List of SME 12mm Samsung Techwin SM DECAN Serials IT NONIT SMT Feeder Sub 3

#K P/N: S90000030A | Part Name: TAPE GUIDE ASSY

#1 P/N: S70000059A | Part Name: VINYL COVER LEVER SPRING

#2 P/N: S60060001A | Part Name: FHCS | Qty: 2

#L P/N: S90000036A | Part Name: VINYL ADT. ASSY

#1 P/N: S90000037A | Part Name: VINYL COVER LEVER ASSY

#2 P/N: S70000062A | Part Name: VINYL ADT. BLOCK

#3 P/N: S70000063A | Part Name: VINYL COVER LEVER SHAFT

#4 P/N: S60710001A | Part Name: SNAP RING

#M P/N: S90000038A | Part Name: TAPE GUIDE SHUTTER ASSY

#1 P/N: S70000064A | Part Name: VINYL COVER GUIDE PIN | Qty: 2

#2 P/N: S70000065A | Part Name: VINYL COVER SPRING PLATE

#3 P/N: S70000067A | Part Name: TAPE GUIDE_12

#4 P/N: S90000044A | Part Name: VINYL MOVING COVER ASSY

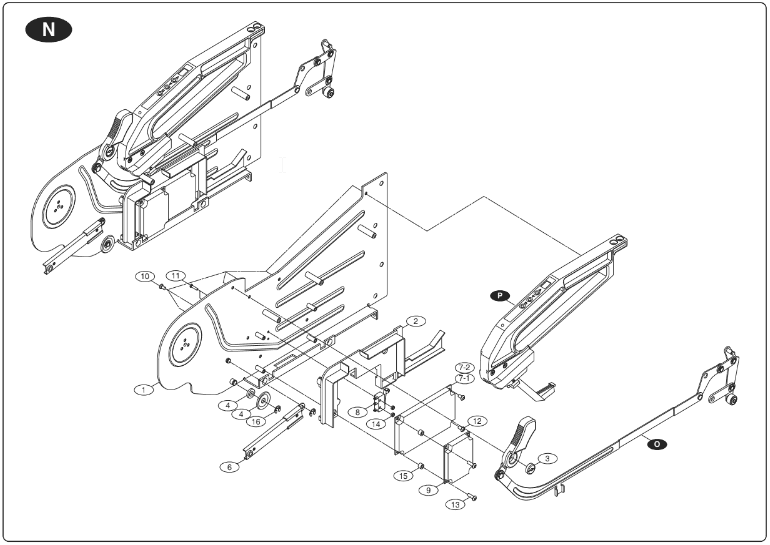

Mechanical Part List of SME 12mm Samsung Techwin SM DECAN Serials IT NONIT SMT Feeder Sub 4

#N P/N: S90000050A | Part Name: AUX. ASSY

#1 P/N: S71000021A | Part Name: AUX. PLATE

#2 P/N: S72000033A | Part Name: LINK COVER

#3 P/N: S70000080A | Part Name: GRIP NUT

#4 P/N: J7265131A | Part Name: DAMPER

#5 P/N: J7065802A | Part Name: DAMPER WASHER

#6 P/N: J9065092A | Part Name: STOPPER ASSY

#7-1 P/N: S91000002A | Part Name: MAIN BOARD(IT)

#7-2 P/N: S91000009A | Part Name: MAIN BOARD(NON-IT)

#8 P/N: S91000007A LI | Part Name: MIT SWITCH CABLE ASSY

#9 P/N: J90600366B IT | Part Name: SLAVE PCB ASSY

#10 P/N: S60060004A | Part Name: FHCS | Qty: 7

#11 P/N: S60060002A | Part Name: FHCS | Qty: 2

#12 P/N: S60050001A | Part Name: BHCS | Qty: 2

#13 P/N: S60050003A | Part Name: BHCS | Qty: 2

#14 P/N: S60250001A | Part Name: NUT | Qty: 2

#15 P/N: S61190002A | Part Name: SUPPORT | Qty: 2

#16 P/N: S60710003A | Part Name: SNAP RING | Qty: 2

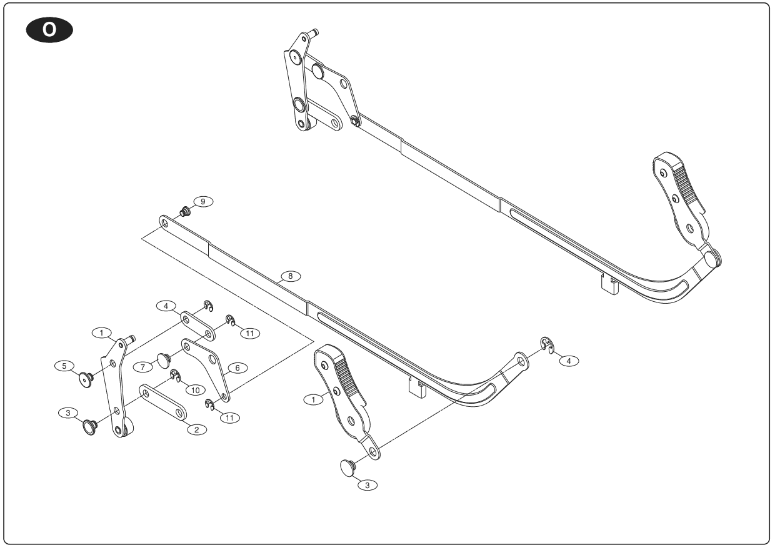

Mechanical Part List of SME 12mm Samsung Techwin SM DECAN Serials IT NONIT SMT Feeder Sub 5

#O P/N: S90000056A | Part Name: FEEDER CLAMP ASSY

#1 P/N: J90651524A | Part Name: CLAMP LEVER ASSY

#2 P/N: S90000057A | Part Name: T_LINK ASSY

#2-1 P/N: S90000058A | Part Name: T_LINK2 ASSY

#2-2 P/N: J70650996B | Part Name: T_LINK1

#2-3 P/N: J70660007C | Part Name: T_LINK1 SHAFT2

#2-4 P/N: J70652737A | Part Name: T_LINK3

#2-5 P/N: J70660002C | Part Name: T_LINK2 SHAFT | Qty: 2

#2-6 P/N: J70652736A | Part Name: T_LINK4

#2-7 P/N: J70660029B | Part Name: T_LINK3 SHAFT1

#2-8 P/N: S70000084A | Part Name: T_LINK5

#2-9 P/N: J70652727A | Part Name: T_LINK4 PIN

#2-10 P/N: S60710003A | Part Name: SNAP RING

#2-11 P/N: S60710002A | Part Name: SNAP RING | Qty: 3

#3 P/N: S70000083A | Part Name: T_LINK5 SHAFT 1

#4 P/N: S60710004A | Part Name: SNAP RING

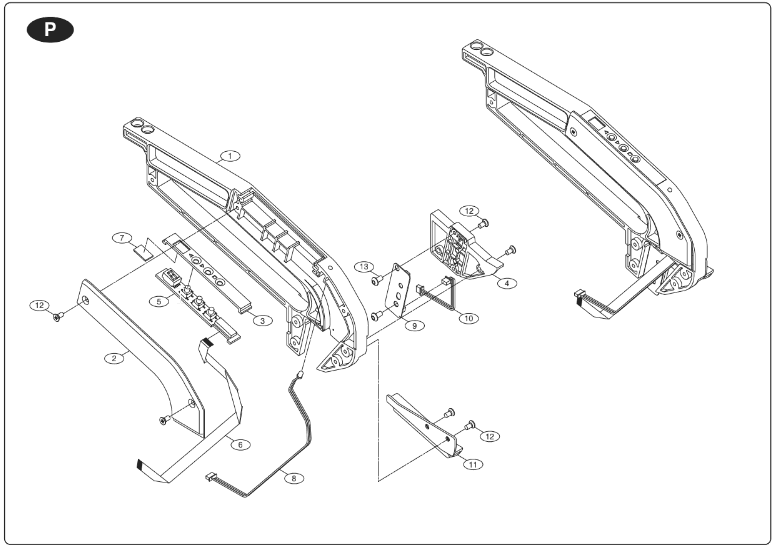

Mechanical Part List of SME 12mm Samsung Techwin SM DECAN Serials IT NONIT SMT Feeder Sub 6

#P P/N: S90000059A | Part Name: HANDLE ASSY

#1 P/N: S72000034A | Part Name: FEEDER HANDLE

#2 P/N: S72000035A | Part Name: CONTROL BOARD COVER

#3 P/N: S72000036A | Part Name: CONTROL SWITCH COVER

#4 P/N: S72000037A | Part Name: SPLICING D/T HOLDER

#5 P/N: S91000003A | Part Name: SWITCH BOARD ASSY

#6 P/N: S91000004A | Part Name: SWITCH BOARD CABLE ASSY

#7 P/N: S72000051A | Part Name: FND GLASS

#8 P/N: S91000005A | Part Name: IT LED CABLE ASSY

#9 P/N: S91000010A | Part Name: SPLICE_BOARD_ASSY

#10 P/N: S91000006A | Part Name: SPLICING SENSOR CABLE ASSY

#11 P/N: S72000038A | Part Name: SPLICING GUIDE_12

#12 P/N: S60060004A | Part Name: FHCS | Qty: 6

#13 P/N: S60050001A | Part Name: BHCS | Qty: 2

#Q P/N: J90651449A | Part Name: 12MM REEL ARM PLATE ASSY

#R P/N: J91672414A | Part Name: PROBE CABLE ASSY-NONIT

#S P/N: S91000008A | Part Name: IT BOARD IF CABLE ASSY

#T P/N: S90000010A | Part Name: DROP GEAR ASSY
