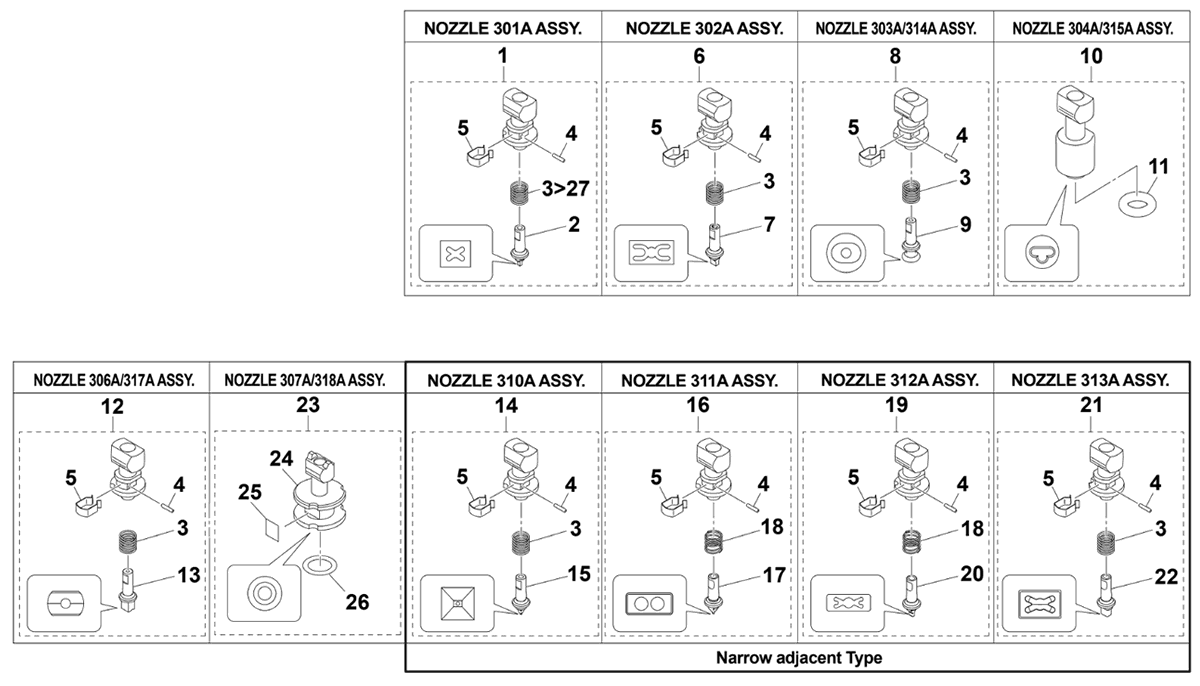

#1 P/N: KHN-M7710-A2 KHN-M7710-A3 | NOZZLE 301A ASSY. | TYPE 301A
#2 P/N: KHN-M7711-04 KHN-M7711-03 | BODY, NOZZLE 301
#3 P/N: KHN-M7713-00 | SPRING | Remarks: Black
#4 P/N: KHN-M7714-00 | PIN
#5 P/N: KHN-M7715-00 | CLIP
#6 P/N: KHN-M7720-A2 KHN-M7720-A1 | NOZZLE 302A ASSY. | TYPE 302A
#7 P/N: KHN-M7721-03 KHN-M7721-02 | BODY, NOZZLE 302
#8 P/N: KHY-M7740-A0 | NOZZLE 303A/314A ASSY. | TYPE 303A/314A
#9 P/N: KHY-M7741-00 | BODY, NOZZLE 303/314
#10 P/N: KHY-M7750-A0 | NOZZLE 304A/315A ASSY. | TYPE 304A/315A
#11 P/N: 90990-17J013 | O-RING 5
#12 P/N: KHY-M7770-A0 | NOZZLE 306A/317A ASSY. | TYPE 306A/317A
#13 P/N: KHY-M7771-00 | BODY, NOZZLE 306/317
#14 P/N: KHY-M77A0-A0 | NOZZLE 310A ASSY. | TYPE 310A (Narrow adjacent Type)
#15 P/N: KHY-M77A1-00 | BODY, NOZZLE 310 1
#16 P/N: KHY-M7710-A3 KHY-M7710-A2 | NOZZLE 311A ASSY. | TYPE 311A | Remarks: KHY-M7710-A3 = Narrow adjacent Type
#17 P/N: KHY-M7711-02 KHY-M7711-01 | BODY, NOZZLE 311
#18 P/N: KHN-M7713-10 | SPRING
#19 P/N: KHY-M7720-A2 KHY-M7720-A1 | NOZZLE 312A ASSY. | TYPE 312A | Remarks: Narrow adjacent Type
#20 P/N: KHY-M7721-01 BODY KHY-M7721-00 | NOZZLE 312
#21 P/N: KHY-M7730-A1 KHY-M7730-A0 | NOZZLE 313A ASSY. | TYPE 313A | Remarks: Narrow adjacent Type
#22 P/N: KHY-M7731-01 KHY-M7731-00 | BODY, NOZZLE 313
#23 P/N: KHY-M7780-A0 | NOZZLE 307A/318A ASSY. | TYPE 307A/318A
#24 P/N: KHY-M7781-00 | BODY NOZZLE 307/318
#25 P/N: KGS-M7742-00 | LABEL,NOZZLE
#26 P/N: 90990-17J014 | O-RING
#27 P/N: KHN-M7713-10 | SPRING | White
