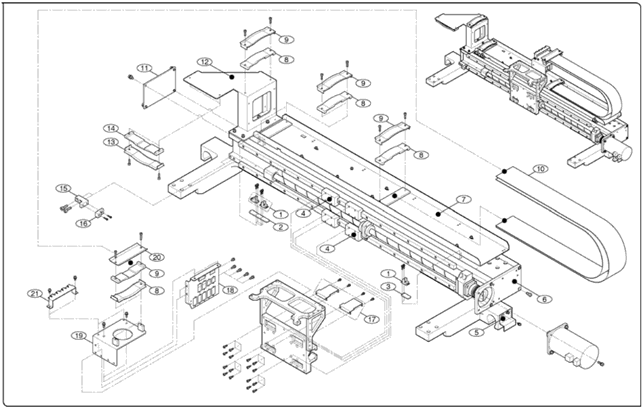

Required Materials for X-Y Frame on Samsung Techwin SM321 SMT Component Assembly Machine

#1 P/N: J3212022A | Part Name:PHOTO SENSOR | Qty: 3 | Type: EE-SX674

#2 P/N: J7054139A | Part Name:SENSOR PLATE 2 | Qty: 1

#3 P/N: J7054137A | Part Name:SENSOR PLATE 4 | Qty: 1

#4 P/N: J66070076B | Part Name: LM GUIDE | Qty: 2 | Type: SSR15XW2UUC1+940LHY-II

#5 P/N: J7054251A | Part Name:Y SENSOR DOG | Qty: 1

#6 P/N: J7154256A | Part Name:END BRACKET-X | Qty: 1

#7 P/N: J7154261B | Part Name:GUIDE CABLE CHAIN-X | Qty: 1

#8 P/N: J7354023A | Part Name:CABLE CUSHION X | Qty: 4

#9 P/N: J7054255A | Part Name:CUSHION BRACKET X | Qty: 4

#10 P/N: J7254016D | Part Name:INNER GUIDE-MAT | Qty: 2

#11 P/N: J7154095A | Part Name:END PLATE-X | Qty: 1

#12 P/N: J7054247A | Part Name:BRACKET CABLE CHAIN-Y | Qty: 1

#13 P/N: J7054256A | Part Name:CUSHION BRACKET Y | Qty: 2

#14 P/N: J7354024A | Part Name:CABLE CUSHION Y | Qty: 2

#15 P/N: J7154259A | Part Name:BRACKET CUSHION -X | Qty: 1

#16 P/N: J7354021A | Part Name:CUSHION-X | Qty: 1

#17 P/N: J7054246B | Part Name:SENSOR DOG-X | Qty: 2

#18 P/N: J7054295A | Part Name:CONNECTOR PANEL | Qty: 1

#19 P/N: J7154266A | Part Name:CABLEVEYOR BRACKET | Qty: 1

#20 P/N: J7054260A | Part Name:CABLE FIXER | Qty: 1

#21 P/N: J7054259A | Part Name:CABLE SPACER | Qty: 1
