Part list of Hanwha Techwin 12mm SMN Tape Feeder

SMN IT 12MM Pneumatic Tape Feeder P/N: SBFB33000K

SMN NONIT 12MM Pneumatic Tape Feeder P/N: SBFB33100K

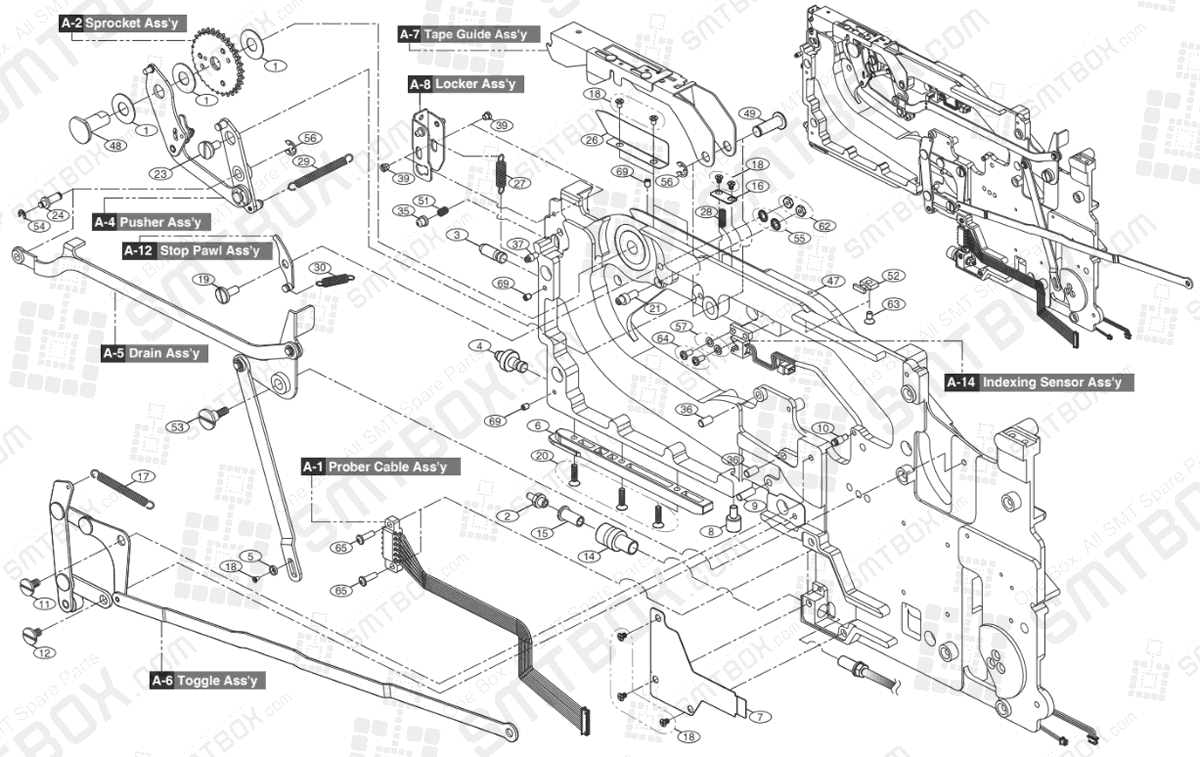

Part list of Hanwha Samsung Techwin 12mm SMN Tape Feeder SM DECAN IT: SBFB33000K NonIT: SBFB33100K side a

#1 P/N: J7265159A | Part Name: Sp Washer

#2 P/N: J6711249A | Part Name: Coupler Plug

#3 P/N: J70650944B | Part Name: V Loc Pin

#4 P/N: J70650948B | Part Name: Location Flange

#5 P/N: J70650956C | Part Name: Link Shaft Cover2

#6 P/N: J70650978C | Part Name: Install Guide

#7 P/N: J7065981A | Part Name: Prober Cover

#8 P/N: J7065992B | Part Name: Bottom Loc Pin

#9 P/N: J70650994B | Part Name: Toggle Stopper

#10 P/N: J70650995B | Part Name: Toggle Spg Pin

#11 P/N: J70660001B | Part Name: T Link4 Shaft1

#12 P/N: J70660008C | Part Name: T Link1 Shaft1

#13 P/N: J70660022B | Part Name: T Link5 Shaft1

#14 P/N: J7066024B | Part Name: Coupler Bkt1

#15 P/N: J7066025A | Part Name: Coupler Bkt2

#16 P/N: J7066026A | Part Name: T-Cover

#17 P/N: J7066040A | Part Name: Toggle Spring

#18 P/N: J7066047A | Part Name: Flat Head Cap Screw-H4.4

#19 P/N: J7065952A | Part Name: Y Eccentric Pin

#20 P/N: J6006301250 | Part Name: Flat Head Cap Screw

#21 P/N: J7065959A | Part Name: Limit Shaft

#22 P/N: J70652290A | Part Name: Reel Cover

#23 P/N: J70652593A | Part Name: Lever Shaft 3

#24 P/N: J7066064A | Part Name: Cyl Bkt Pin

#25 P/N: J70652273A | Part Name: Lever Shaft2

#26 P/N: J70652526A | Part Name: Tape Support

#27 P/N: J70660070B | Part Name: Locker Spring

#28 P/N: J7066071A | Part Name: Tape Guide Spring

#29 P/N: J61071066A | Part Name: Feeding Spring

#30 P/N: J61071054A | Part Name: Stop Pawl Spring

#31 P/N: J61071053A | Part Name: Drain Lever Spring

#32 P/N: J71650297C | Part Name: Pcb Cover

#33 P/N: J7066076A | Part Name: Spring Pin 25

#34 P/N: J7066088A | Part Name: Forming Bkt Shaft

#35 P/N: J70660083B | Part Name: Locking Limit

#36 P/N: J70660313B | Part Name: Toggle Stopper2

#37 P/N: J70661019A | Part Name: Spring Pin 26

#38 P/N: J7066089A | Part Name: Drain Pawl Spring

#39 P/N: J70661020A | Part Name: Locker Hinge

#40 P/N: J72650164B | Part Name: Vinyl Roller

#41 P/N: J70660087B | Part Name: Vinyl Roller Shaft

#42 P/N: J70652049A | Part Name: Vinyl Remove Bkt

#43 P/N: J70652527A | Part Name: Cylinder Cable Cover

#44 P/N: J6012401550 | Part Name: Truss Screw

#45 P/N: J70652598A | Part Name: Vinyl Roller Shaft 3

#46 P/N: J72651136A | Part Name: Vinyl Roller 3

#47 P/N: J71651412A | Part Name: 12Mm Main Frame

#48 P/N: J70652190A | Part Name: Sprocket Shaft

#49 P/N: J70660057B | Part Name: Tape Guide Shaft

#50 P/N: J70652591A | Part Name: Take Up Reel Shaft

#51 P/N: J70660085B | Part Name: Locker Limit Spring

#52 P/N: J6502008A | Part Name: Low Profile Mounts

#53 P/N: J2500293A | Part Name: Lever Shaft 1

#54 P/N: J1301023 | Part Name: E-Ring

#55 P/N: J6044400050 | Part Name: Star Washer

#56 P/N: J1301149 | Part Name: E-Ring

#57 P/N: J1301154 | Part Name: Flat Washer

#58 P/N: J6006401059 | Part Name: Flat Head Cap Screw

#59 P/N: J1301158 | Part Name: Flat Head Cap Screw

#62 P/N: J1301304 | Part Name: Hex Nut

#63 P/N: J1301448 | Part Name: Flat Head Cap Screw

#64 P/N: J6004300650 | Part Name: Button Head Cap Screw

#65 P/N: J6004301050 | Part Name: Button Head Cap Screw

#66 P/N: J6006300850 | Part Name: Flat Head Cap Screw

#69 P/N: J6010300438 | Part Name: Socket Set Screw

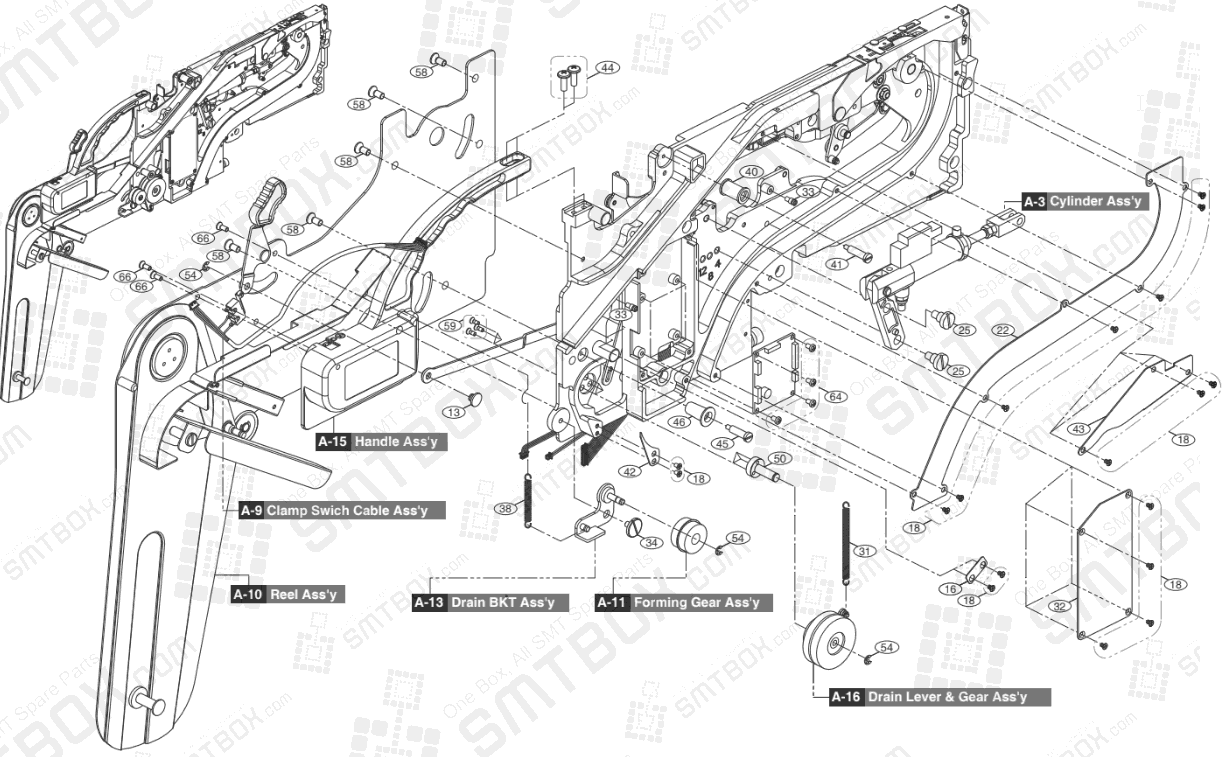

Part list of Hanwha Samsung Techwin 12mm SMN Tape Feeder SM DECAN IT: SBFB33000K NonIT: SBFB33100K side b
