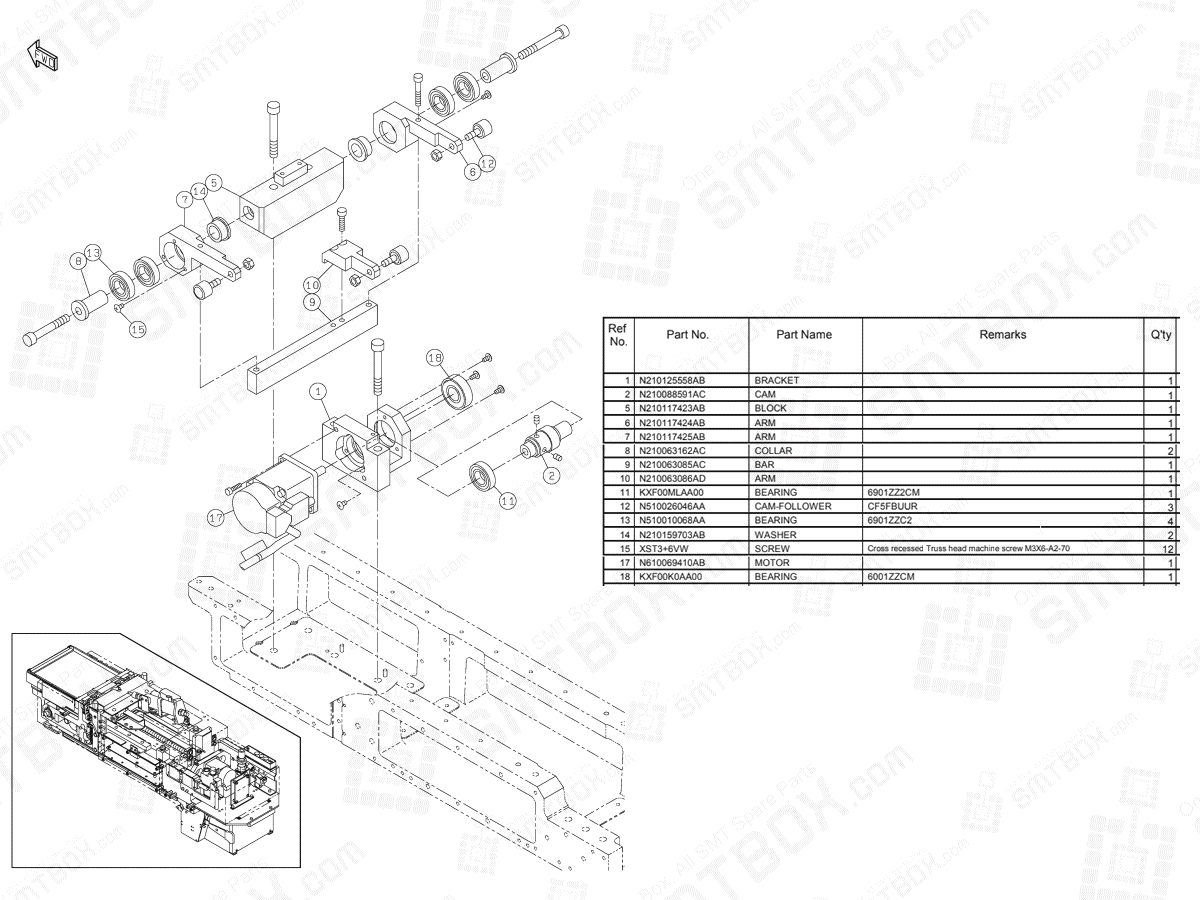

Panasonic NPM Multifunctional Transfer Unit N610095857AB KN610095857AB-03-5

#1. P/N: N210125558AB | Part Name: Bracket | Qty: 1

#2. P/N: N210088591AC | Part Name: Cam | Qty: 1

#5. P/N: N210117423AB | Part Name: Block | Qty: 1

#6. P/N: N210117424AB | Part Name: Arm | Qty: 1

#7. P/N: N210117425AB | Part Name: Arm | Qty: 1

#8. P/N: N210063162AC | Part Name: Collar | Qty: 2

#9. P/N: N210063085AC | Part Name: Bar | Qty: 1

#10. P/N: N210063086AD | Part Name: Arm | Qty: 1

#11. P/N: KXF00MLAA00 | Part Name: Bearing | Remarks: 6901ZZ2CM | Qty: 1

#12. P/N: N510026046AA | Part Name: Cam Follower | Remarks: CF5FBUUR | Qty: 3

#13. P/N: N510010068AA | Part Name: Bearing | Remarks: 6901ZZC2 | Qty: 4

#14. P/N: N210159703AB | Part Name: Washer | Qty: 2

#15. P/N: XST3+6VW | Part Name: Screw | Remarks: Cross recessed Truss head machine screw M3X6-A2-70 | Qty: 12

#17. P/N: N610069410AB | Part Name: Motor | Qty: 1

#18. P/N: KXF00K0AA00 | Part Name: Bearing | Remarks: 6001ZZCM | Qty: 1
