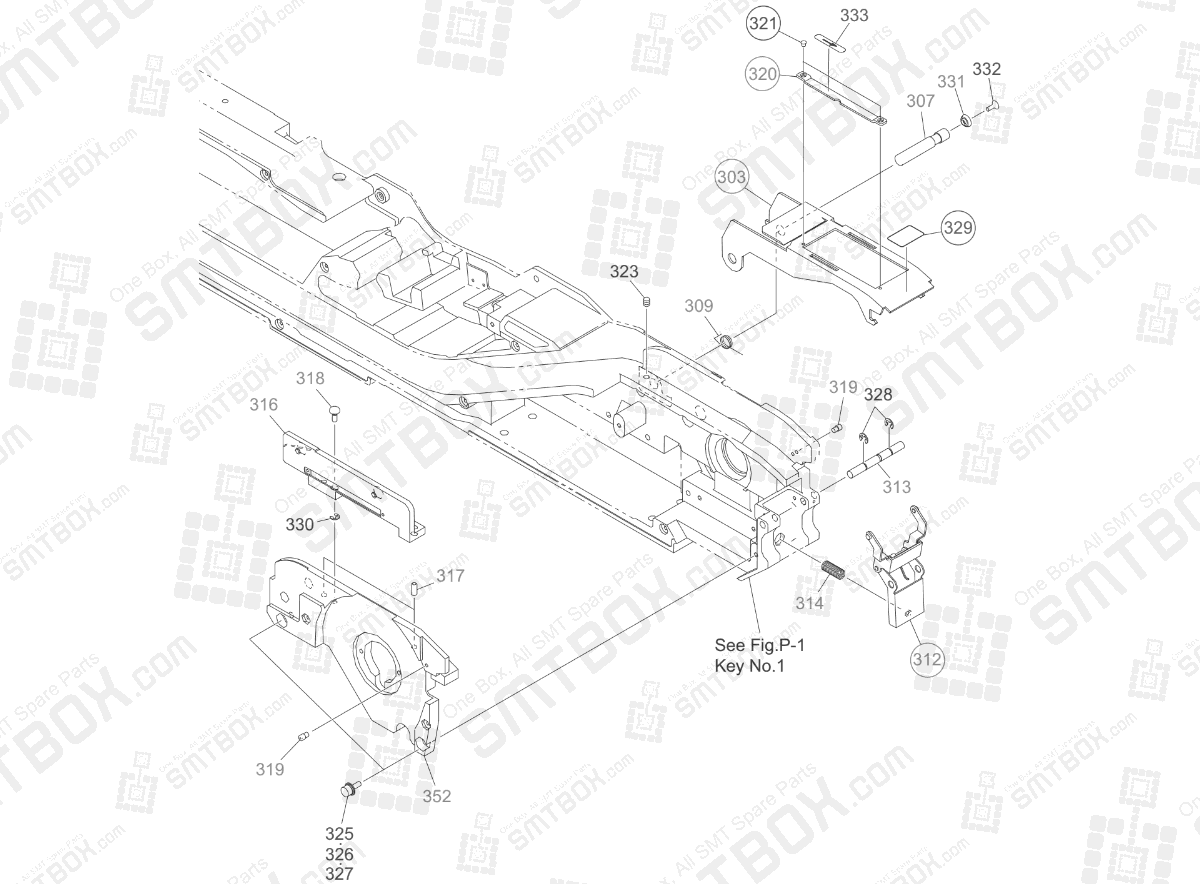

P-4 Suppressor Section of Hitachi Yamaha SMT Tape Feeder GT-24321B GD-24321B

#303. P/N: 630 166 8628 | Lever(Sup)

#307. P/N: 630 132 9499 | Pin Hinge(Sup)

#309. P/N: 630 158 3266 | Spring Torsion

#312. P/N: 630 127 9602 | Assy Hook

#313. P/N: 630 129 2793 | Pin Hinge(Front)

#314. P/N: 630 127 5406 | Spring Comp

#316. P/N: 630 166 3517 | Chute

#317. P/N: 630 127 5437 | Pin Locate(Chute)

#318. P/N: 630 127 5444 | Machine Screw

#319. P/N: 630 127 5451 | Pin Locate

#320. P/N: 630 166 2701 | Plate(Sup)

#321. P/N: 630 166 4149 | Machine Screw

#323. P/N: 630 008 2296 | Set Screw M4X4 Set

#325. P/N: 630 000 7510 | Bolt Hex-Sct M3X8

#326. P/N: 411 141 2806 | Washer Spr 3

#327. P/N: 411 141 3902 | Washer V 3X7X0.5

#328. P/N: 411 016 0203 | Ring E 2.5

#329. P/N: 630 130 2317 | Name Plate

#330. P/N: 411 000 9304 | Ring E

#331. P/N: 630 132 9208 | Washer

#332. P/N: 411 033 5700 | Scr Flt 2.5X6

#333. P/N: 630 166 9328 | Name Plate

#352. P/N: 630 149 7686 | Chute
